R7FA6M5AH2 Series

200MHz Arm Cortex-M33 TrustZone, Highest Integration with Ethernet and CAN FD

Manufacturer: Renesas Electronics Corporation

Catalog

200MHz Arm Cortex-M33 TrustZone, Highest Integration with Ethernet and CAN FD

Part	RAM Size	Operating Temperature [Max]	Operating Temperature [Min]	EEPROM Size	Program Memory Size	Mounting Type	Package / Case	Oscillator Type	Core Processor	Number of I/O	Core Size	Connectivity	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Peripherals	Supplier Device Package	Speed	Program Memory Type	Data Converters	Data Converters
Renesas Electronics Corporation R7FA6M5BH3CFB#BA0	512 K	105 °C	-40 °C	8 K	2 MB	Surface Mount	144-LQFP	Internal	ARM® Cortex®-M33	109	32-Bit	CANbus Ethernet I2C MMC/SD QSPI SCI SPI UART/USART USB	3.6 V	2.7 V	AES DMA LVD POR PWM RSA SHA Temp Sensor WDT	144-LFQFP (20x20)	200 MHz	FLASH
Renesas Electronics Corporation R7FA6M5BF3CFP#BA0	512 K	105 °C	-40 °C	8 K	1 MB	Surface Mount	100-LQFP	Internal	ARM® Cortex®-M33	75 I/O	32-Bit	CANbus EBI/EMI Ethernet I2C MMC/SD QSPI SCI SPI SSI UART/USART USB	3.6 V	2.7 V	AES DMA LVD POR PWM RSA SHA Temp Sensor WDT	100-LFQFP (14x14)	200 MHz	FLASH	A/D 20x12b SAR D/A 2x12b
Renesas Electronics Corporation R7FA6M1AD3CFM#BA0	256 K	105 °C	-40 °C	8 K	512 KB	Surface Mount	64-LQFP	Internal	ARM® Cortex®-M4F	35	32-Bit	CANbus EBI/EMI I2C IrDA MMC/SD SCI SPI UART/USART USB	3.6 V	2.7 V	DMA LVD POR PWM WDT	64-LFQFP (10x10)	120 MHz	FLASH	A/D 10x12b SAR D/A 2x12b
Renesas Electronics Corporation R7FA6E10D2CFM#BA0	256 K	85 °C	-40 °C	8 K	512 KB	Surface Mount	64-LQFP	Internal	ARM® Cortex®-M33	41	32-Bit	CANbus I2C MMC/SD QSPI SCI SmartCard SPI UART/USART USB	3.6 V	2.7 V	DMA LVD POR PWM WDT	64-LFQFP (10x10)	200 MHz	FLASH	1x12b 7x12b SAR
Renesas Electronics Corporation R7FA6M1AD3CFP#BA0	256 K	105 °C	-40 °C	8 K	512 KB	Surface Mount	100-LQFP	Internal	ARM® Cortex®-M4F	67	32-Bit	CANbus EBI/EMI I2C IrDA MMC/SD SCI SPI UART/USART USB	3.6 V	2.7 V	DMA LVD POR PWM WDT	100-LFQFP (14x14)	120 MHz	FLASH		2 12 b 19
Renesas Electronics Corporation R7FA6M5BG3CFP#BA0	512 K	105 °C	-40 °C	8 K	1.5 MB	Surface Mount	100-LQFP	Internal	ARM® Cortex®-M33	75 I/O	32-Bit	CANbus EBI/EMI Ethernet I2C MMC/SD QSPI SCI SPI SSI UART/USART USB	3.6 V	2.7 V	AES DMA LVD POR PWM RSA SHA Temp Sensor WDT	100-LFQFP (14x14)	200 MHz	FLASH	A/D 20x12b SAR D/A 2x12b
Renesas Electronics Corporation R7FA6E10F2CFP#BA0	256 K	85 °C	-40 °C	8 K	1 MB	Surface Mount	100-LQFP	Internal	ARM® Cortex®-M33	75 I/O	32-Bit	CANbus Ethernet I2C MMC/SD QSPI SCI Serial Sound SmartCard SPI UART/USART USB	3.6 V	2.7 V	DMA LVD POR PWM WDT	100-LFQFP (14x14)	200 MHz	FLASH	A/D 11x12b SAR D/A 1x12b
Renesas Electronics Corporation R7FA6E10D2CFP#BA0	256 K	85 °C	-40 °C	8 K	512 KB	Surface Mount	100-LQFP	Internal	ARM® Cortex®-M33	75 I/O	32-Bit	CANbus Ethernet I2C MMC/SD QSPI SCI Serial Sound SmartCard SPI UART/USART USB	3.6 V	2.7 V	DMA LVD POR PWM WDT	100-LFQFP (14x14)	200 MHz	FLASH	A/D 11x12b SAR D/A 1x12b
Renesas Electronics Corporation R7FA6M5AH2CBG#BC0	512 K	85 °C	-40 °C	8 K	2 MB	Surface Mount	176-LFBGA	Internal	ARM® Cortex®-M33	132	32-Bit	CANbus EBI/EMI Ethernet I2C MMC/SD QSPI SCI SPI SSI UART/USART USB	3.6 V	2.7 V	AES DMA LVD POR PWM RSA SHA Temp Sensor WDT	176-LFBGA (13x13)	200 MHz	FLASH	A/D 29x12b SAR D/A 2x12b
Renesas Electronics Corporation R7FA6M2AD2CLK#AC0	384 K	85 °C	-40 °C	32 K	512 KB	Surface Mount	145-TFLGA	Internal	ARM® Cortex®-M4	109	32-Bit Single-Core	CANbus EBI/EMI Ethernet I2C IrDA MMC/SD SPI UART/USART USB	3.6 V	2.7 V	DMA LVD POR PWM WDT	145-TFLGA (7x7)	120 MHz	FLASH	A/D 22x12b SAR D/A 2x12b

Catalog

200MHz Arm Cortex-M33 TrustZone, Highest Integration with Ethernet and CAN FD

Description

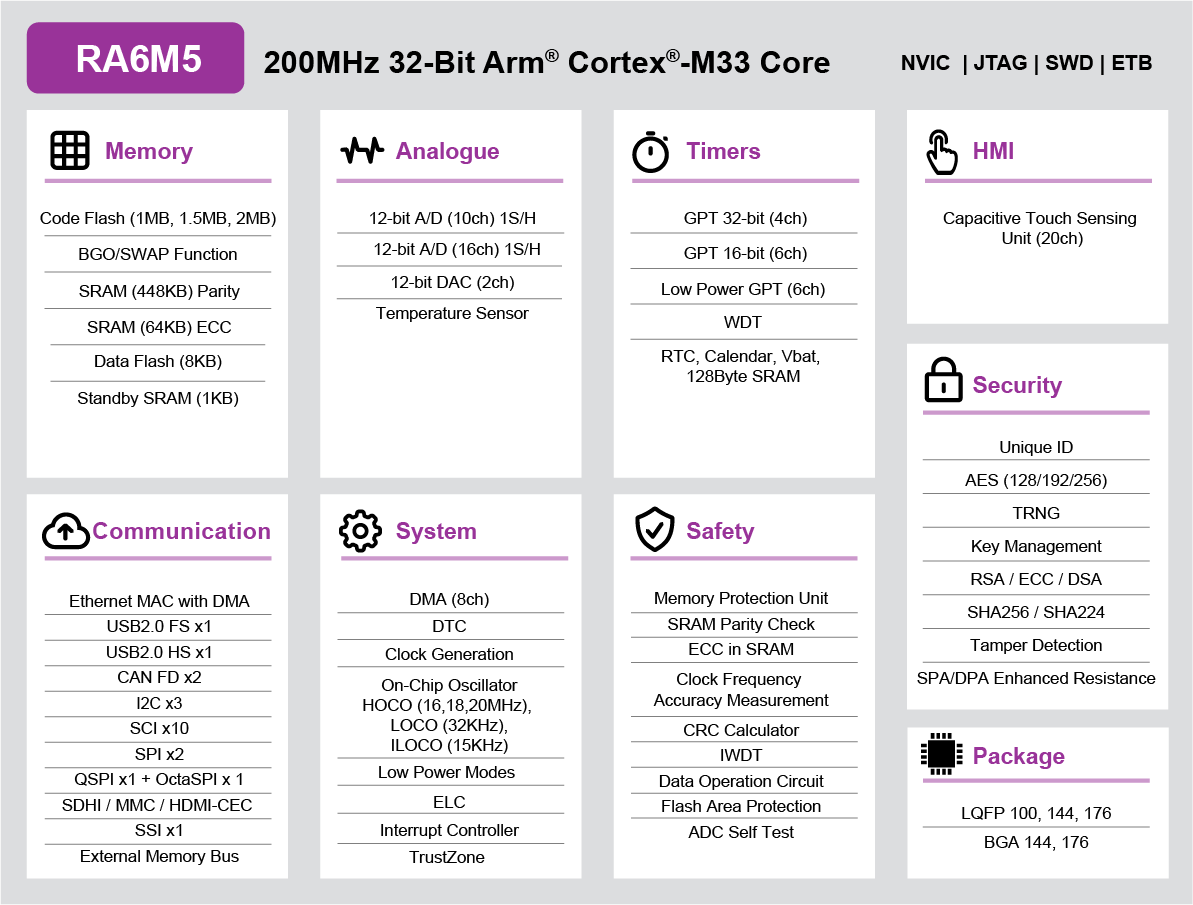

The Renesas RA6M5 group uses the high-performance Arm®Cortex®-M33 core with TrustZone®. In concert with the Secure Crypto Engine it offers Secure Element functionality. The integrated Ethernet MAC with individual DMA ensures high data throughput. The RA6M5 is built on a highly efficient 40nm process and is supported by an open and flexible ecosystem concept—the Flexible Software Package (FSP), built on FreeRTOS—and is expandable to use other RTOSes and middleware. The RA6M5 is suitable for IoT applications requiring Ethernet, future proof security, large embedded RAM, and low active power consumption down to 107µA/MHz running the CoreMark®algorithm from Flash.
