TB67S285 Series
Manufacturer: Toshiba Semiconductor and Storage
Beta
⌘K

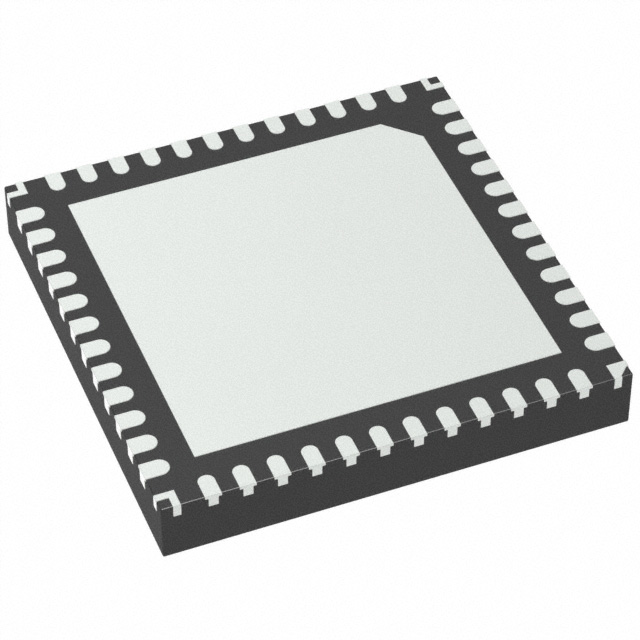

IC MOTOR DRIVER BIPOLAR 48VQFN
| Part | Interface | Function | Applications | Step Resolution | Technology | Output Configuration | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output | Voltage - Supply [Min] | Voltage - Supply [Max] | Voltage - Load [Min] | Voltage - Load [Max] | Supplier Device Package | Motor Type - Stepper | Package / Case | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Toshiba Semiconductor and Storage | Parallel Serial | Driver - Fully Integrated Control and Power Stage | General Purpose | 0.03125 0.0625 0.125 0.25 0.5 1 | Power MOSFET | Half Bridge (8) | 85 C | -20 °C | 3 A | 4.75 V | 5.25 V | 10 V | 47 V | 48-VQFN (7x7) | Bipolar | 48-VFQFN Exposed Pad | Surface Mount |
