5116C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

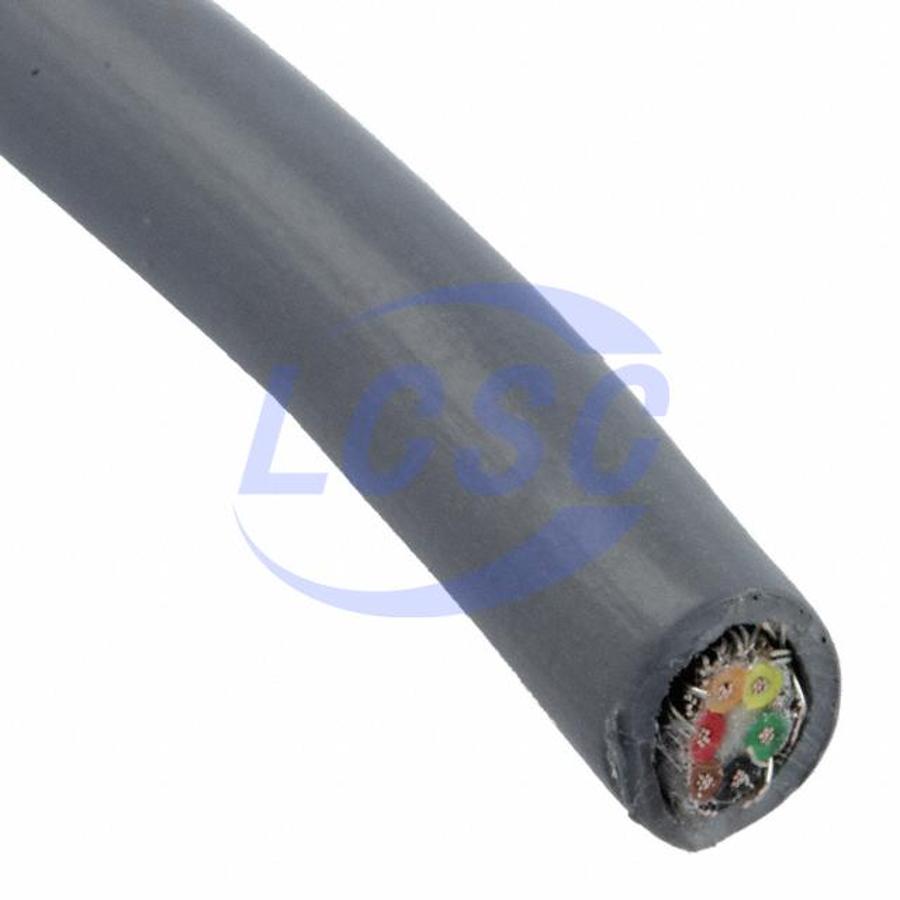

CBL 6COND 24AWG SHLD 1000=1000'
| Part | Shield Coverage | Shield Material | Usage | Features | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Shield Type | Jacket (Insulation) Material | Wire Gauge | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Cable Type | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Communication Control | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 2464 | -35 °C | 105 ░C | Copper Tinned | Braid Foil | Poly-Vinyl Chloride (PVC) | 24 AWG | Slate | 7 | 32 AWG | 300 VDC | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.229 in | 5.82 mm | 0.813 mm | 0.032 in | 6 | ||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Communication Control | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 2464 | -35 °C | 105 ░C | Copper Tinned | Braid Foil | Poly-Vinyl Chloride (PVC) | 24 AWG | Slate | 7 | 32 AWG | 300 VDC | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.229 in | 5.82 mm | 0.813 mm | 0.032 in | 6 | 304.8 m | 1000 ft |
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Communication Control | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 2464 | -35 °C | 105 ░C | Copper Tinned | Braid Foil | Poly-Vinyl Chloride (PVC) | 24 AWG | Black | 7 | 32 AWG | 300 VDC | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 0.229 in | 5.82 mm | 0.813 mm | 0.032 in | 6 | 304.8 m | 1000 ft |
