NLVX1G74 Series

Single D Flip-Flop

Catalog

Single D Flip-Flop

Part	Mounting Type	Current - Quiescent (Iq)	Current - Output High, Low [y]	Current - Output High, Low [x]	Type	Clock Frequency	Input Capacitance	Output Type	Function	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Trigger Type	Max Propagation Delay @ V, Max CL	Number of Bits per Element	Voltage - Supply [Max]	Voltage - Supply [Min]	Number of Elements	Package / Case	Qualification	Grade

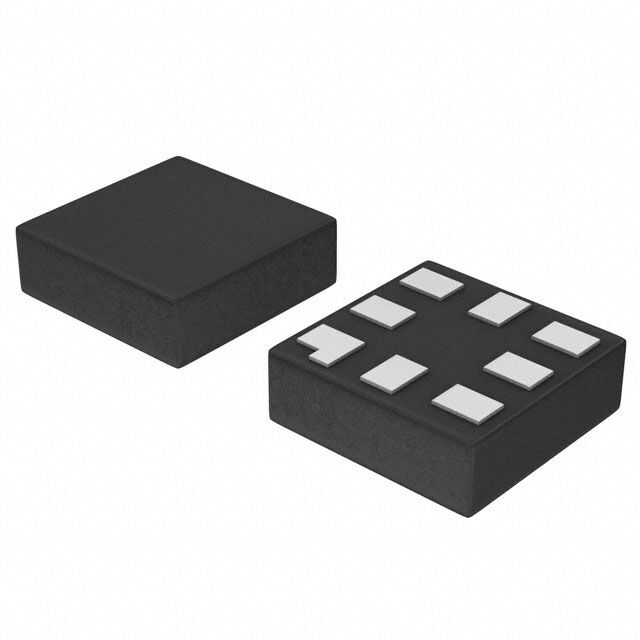

ON Semiconductor NLX1G74MUTCG	Surface Mount	1 µA	32 mA	32 mA	D-Type	200 MHz	7 pF	Complementary	Reset Set(Preset)	8-UQFN (1.6x1.6)	85 °C	-40 °C	Positive Edge	5 ns	1	5.5 V	1.65 V	1	8-UFQFN
ON Semiconductor NLVX1G74MUTCG	Surface Mount	1 µA	32 mA	32 mA	D-Type	200 MHz	7 pF	Complementary	Reset Set(Preset)	8-UQFN (1.6x1.6)	85 °C	-40 °C	Positive Edge	5 ns	1	5.5 V	1.65 V	1	8-UFQFN	AEC-Q100	Automotive

Catalog

Single D Flip-Flop

Key Features

• Extremely High Speed: tPD = 2.6 ns (typical) at VCC = 5.0 V

• Designed for 1.65 V to 5.5 V VCC Operation

• Low Power Dissipation: ICC = 1 A (Max) at TA = 25C

• 24 mA Balanced Output Sink and Source Capability at VCC = 3.0 V

• Balanced Propagation Delays

• Overvoltage Tolerant (OVT) Input Pins

• Ultra Small Package

• This is a PbFree Device

Description

The NLX1G74 is a high performance, full function edge-triggered D Flip-Flop in ultra-small footprint. The NLX1G74 input structures provide protection when voltages up to 7.0 V are applied, regardless of the supply voltage.
