USF 1206 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

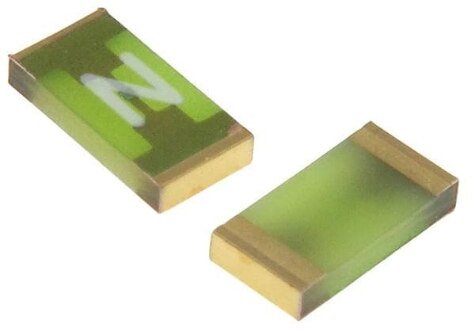

SURFACE MOUNT FUSES USF 1206 FUSE FF 3A
| Part | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Fuse Type | Breaking Capacity @ Rated Voltage | Voltage Rating - AC | Voltage Rating - DC | Response Time | Melting I²t | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.6 mm | 3.2 mm | 0.063 " | 1.6 mm | 0.126 " | 0.024 in | 1206 (3216 Metric) | 90 °C | -55 C | 3 A | Board Mount (Cartridge Style Excluded) | 50 A | 32 V | 63 VDC | Fast Blow | 0.63 | Surface Mount | CE CSA cURus UKCA UL |
 SCHURTER Inc. | 0.6 mm | 3.2 mm | 0.063 " | 1.6 mm | 0.126 " | 0.024 in | 1206 (3216 Metric) | 90 °C | -55 C | 1.25 A | Board Mount (Cartridge Style Excluded) | 50 A | 32 V | 63 VDC | Fast Blow | 0.12 I²t | Surface Mount | |
 SCHURTER Inc. | 0.6 mm | 3.2 mm | 0.063 " | 1.6 mm | 0.126 " | 0.024 in | 1206 (3216 Metric) | 90 °C | -55 C | 750 mA | Board Mount (Cartridge Style Excluded) | 50 A | 32 V | 63 VDC | Fast Blow | 0.029 | Surface Mount | CE CSA cURus UKCA UL |
 SCHURTER Inc. | 0.6 mm | 3.2 mm | 0.063 " | 1.6 mm | 0.126 " | 0.024 in | 1206 (3216 Metric) | 90 °C | -55 C | 2.5 A | Board Mount (Cartridge Style Excluded) | 50 A | 32 V | 63 VDC | Fast Blow | 0.35 | Surface Mount |
