SF-3812 Series

Catalog

FUSE, SURFACE MOUNT, 500 MA, TIME DELAY, 600 VAC, 3812 [10030 METRIC]

Part	DC Cold Resistance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Response Time	Approval Agency	Breaking Capacity @ Rated Voltage	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - AC	Voltage Rating - DC	Melting I²t	Fuse Type	Current Rating (Amps)	Mounting Type	Melting I˛t

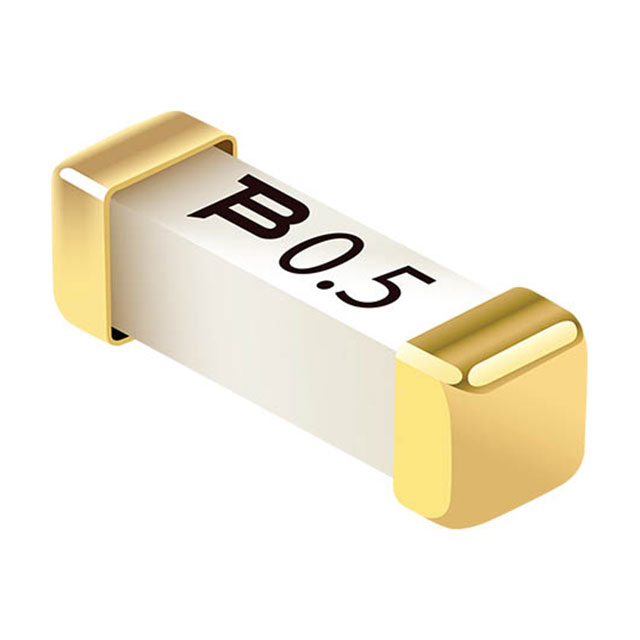

Bourns Inc. SF-3812TM050T-2	0.48 Ohms	2-SMD Square End Block	-55 C	125 °C	Slow Blow	UL	50 A 60 A	0.122 in	0.122 in	0.398 in	3.1 mm	10.1 mm	3.1 mm	600 V	250 V	1.4 I²t	Board Mount (Cartridge Style Excluded)	0.5 A	Surface Mount

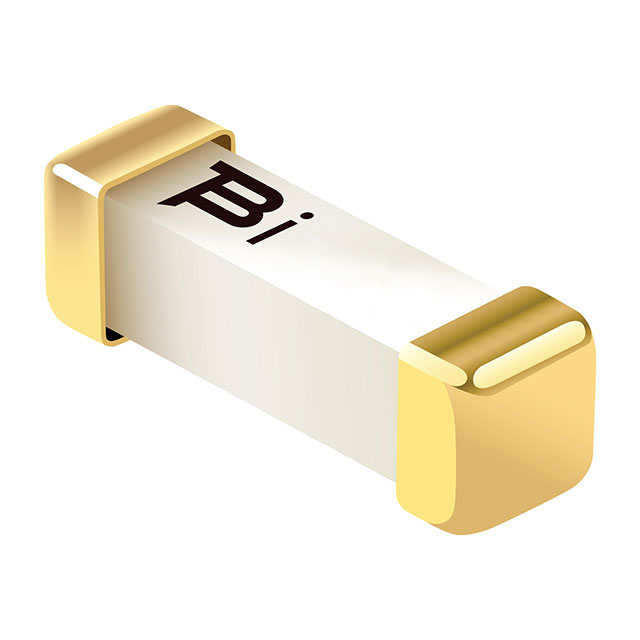

Bourns Inc. SF-3812TL075T-2	0.26 Ohms	2-SMD Square End Block	-55 C	125 °C	Slow Blow	UL	50 A	0.122 in	0.122 in	0.398 in	3.1 mm	10.1 mm	3.1 mm	250 V		3.375 I²t	Board Mount (Cartridge Style Excluded)	750 mA	Surface Mount	3.375
Bourns Inc. SF-3812F2000T-2	0.003 Ohms	2-SMD Square End Block	-55 C	125 °C	Fast Blow	cUL UL	100 A 130 A	0.122 in	0.122 in	0.398 in	3.1 mm	10.1 mm	3.1 mm	250 V	80 V	356	Board Mount (Cartridge Style Excluded)	20 A	Surface Mount
Bourns Inc. SF-3812F3000T-2	0.0018 Ohms	2-SMD Square End Block	-55 C	125 °C	Fast Blow	cUL UL	100 A 130 A	0.122 in	0.122 in	0.398 in	3.1 mm	10.1 mm	3.1 mm	250 V	80 V	900	Board Mount (Cartridge Style Excluded)	30 A	Surface Mount	900
Bourns Inc. SF-3812TL200T-2	0.0504 Ohms	2-SMD Square End Block	-55 C	125 °C	Slow Blow	TUV UL	50 A	0.122 in	0.122 in	0.398 in	3.1 mm	10.1 mm	3.1 mm	250 V		19.84	Board Mount (Cartridge Style Excluded)	2 A	Surface Mount	19.84

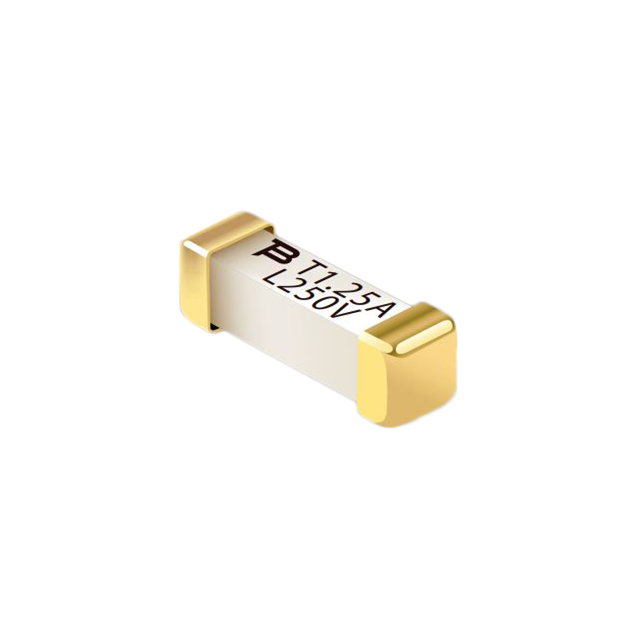

Bourns Inc. SF-3812SP125T-2	0.105 Ohms	2-SMD Square End Block	-55 C	125 °C	Slow Blow	cUL TUV UL	100 A 200 kA AC	0.122 in	0.122 in	0.398 in	3.1 mm	10.1 mm	3.1 mm	250 V	250 V	5.04	Board Mount (Cartridge Style Excluded)	1.25 A	Surface Mount	5.04

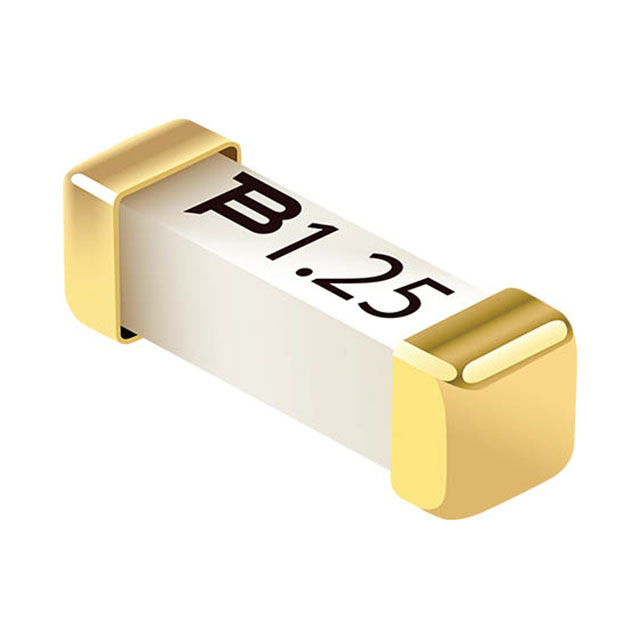

Bourns Inc. SF-3812TM125T-2	100 mOhms	2-SMD Square End Block	-55 C	125 °C	Slow Blow	UL	50 A 60 A	0.122 in	0.122 in	0.398 in	3.1 mm	10.1 mm	3.1 mm	600 V	250 V	22	Board Mount (Cartridge Style Excluded)	1.25 A	Surface Mount
Bourns Inc. SF-3812TL050T-2	0.5479 Ohms	2-SMD Square End Block	-55 C	125 °C	Slow Blow	UL	50 A	0.122 in	0.122 in	0.398 in	3.1 mm	10.1 mm	3.1 mm	250 V		1.963	Board Mount (Cartridge Style Excluded)	0.5 A	Surface Mount	1.963
Bourns Inc. SF-3812F1000T-2	0.0067 Ohms	2-SMD Square End Block	-55 C	125 °C	Fast Blow	cUL UL	100 A 130 A	0.122 in	0.122 in	0.398 in	3.1 mm	10.1 mm	3.1 mm	250 V	80 V	75	Board Mount (Cartridge Style Excluded)	10 A	Surface Mount	75
Bourns Inc. SF-3812FG2000T-2	0.0033 Ohms	2-SMD Square End Block	-55 C	125 °C	Fast Blow	cUL UL	100 A 300 A	0.122 in	0.122 in	0.398 in	3.1 mm	10.1 mm	3.1 mm	125 V	100 V	18	Board Mount (Cartridge Style Excluded)	20 A	Surface Mount	18
