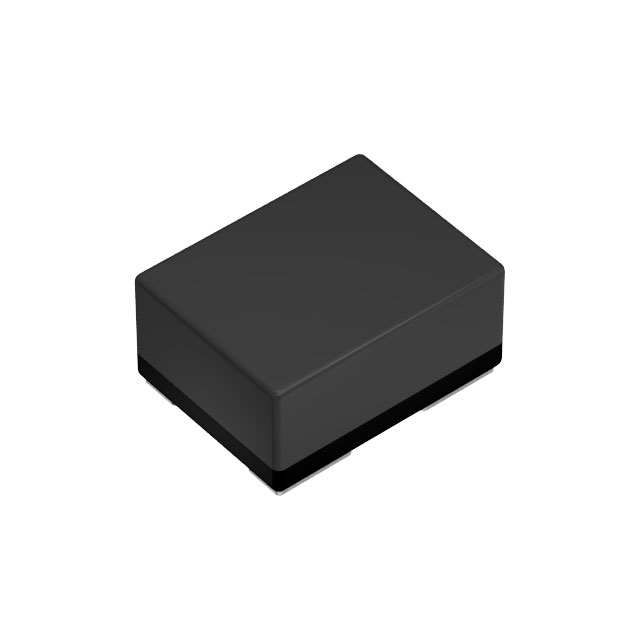

TCM-T Series

Catalog

COMMON MODE CHOKES / FILTERS 0605 10VDC 200OHM 100MHZ 0.1A

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	DC Resistance (DCR) (Max) [Max]	Package / Case	Package / Case	Package / Case	Impedance @ Frequency	Voltage Rating - DC	Number of Lines	Filter Type	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Height (Max) [z]	Height (Max) [z]	Current Rating (Max)	DC Resistance (DCR) (Max)
TDK Corporation TCM0605T-200-2P-T201	85 °C	-25 °C	100 mA	Surface Mount	0.5 mm	0.026 in	0.65 mm	0.02 in	2.5 Ohm	0202	4 PC Pad	0505 Metric	20 Ohms	10 V	2	Signal Line	0.35 mm	0.014 in
TDK Corporation TCM0403T-080-2P-T210	85 °C	-25 °C		Surface Mount	0.3 mm	0.018 in	0.45 mm	0.012 in				0201 (0603 Metric) Variant 4 Lead		5 V	2	Signal Line			0.25 mm	0.01 in	50 mA	1.2 Ohm
