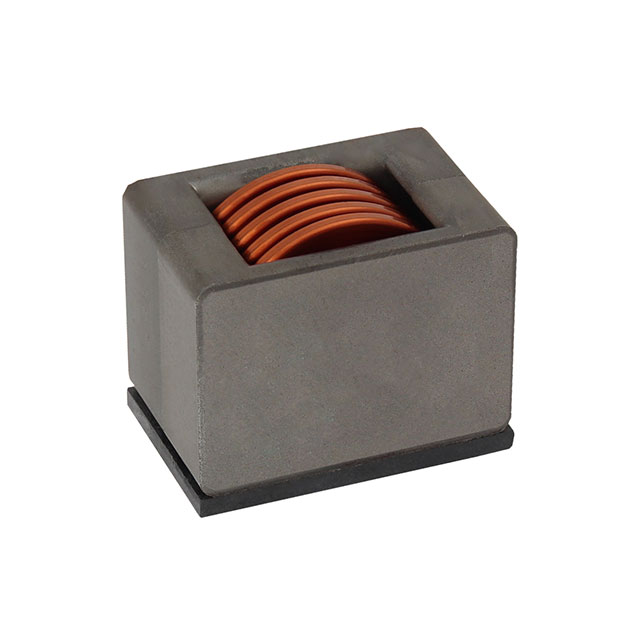

IHDM-1107BB-x0 Series

Catalog

POWER INDUCTORS - LEADED 6.2UH 20% 56 A

Part	Shielding	Current - Saturation (Isat)	Package / Case	Material - Core	Type	Inductance Frequency - Test	Inductance	Tolerance	DC Resistance (DCR) (Max)	Size / Dimension Length	Size / Dimension Width	Operating Temperature (Max)	Operating Temperature (Min)	Frequency - Self Resonant	Mounting Type	Height - Seated (Max)	Current Rating
Vishay Dale IHDM1107BBEV6R2M30	Unshielded	91 A	Nonstandard	Iron Powder	Drum Core Wirewound	100 kHz	6.2 µH	20 %	1.3 mOhm	1.055 in	0.705 in	180 °C	-55 °C	25 MHz	Through Hole	0.882 in	56 A
Vishay Dale IHDM1107BBEV1R5M30	Unshielded	165 A	Nonstandard	Iron Powder	Drum Core Wirewound	100 kHz	1.5 µH	20 %	0.41 mOhm	1.055 in	0.705 in	180 °C	-55 °C	80 MHz	Through Hole	0.882 in	91 A
Vishay Dale IHDM1107BBEV8R2M30	Unshielded	73 A	Nonstandard	Iron Powder	Drum Core Wirewound	100 kHz	8.2 µH	20 %	1.73 mOhm	1.055 in	0.705 in	180 °C	-55 °C	22 MHz	Through Hole	0.882 in	39 A
