GuardianX Series

Catalog

ANTENNAS ADHESIVE MOUNT COMBO ANTENNA

Part	Antenna Type	VSWR	Frequency Range [Max]	Frequency Range [Min]	Features	Mounting Type	Height (Max) [Max] [z]	Height (Max) [z]	RF Family/Standard	Applications	Frequency Group	Ingress Protection	Number of Bands	Gain	Frequency (Center/Band)

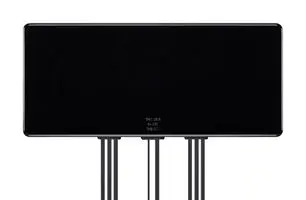

Taoglas Limited MA9908.A.001	Ceramic Patch	2	1.61 GHz 2.17 GHz 2.5 GHz 2.69 GHz 5.85 GHz 960 MHz	1.547 GHz 1.71 GHz 2.4 GHz 2.49 GHz 5.15 GHz 698 MHz	Cable - 3m Filter LNA	Surface Mount	0.65 in	16.5 mm	Cellular General ISM Navigation WiFi	DCS GLONASS GPS GSM LTE PCS UMTS Wi-Fi	Wide Band	IP67	10	0 dBi 1.04 dBi 1.41 dBi 1.5 dBi 1.53 dBi 3.17 dBi 3.47 dBi 3.54 dBi 3.91 dBi 4.08 dBi 4.23 dBi
Taoglas Limited MA9909.A.002	Module	2	1.61 GHz 2.17 GHz 2.69 GHz 3.6 GHz 960 MHz	1.574 GHz 1.71 GHz 2.49 GHz 3.3 GHz 698 MHz	Cable - 1m Filter LNA	Adhesive	0.65 in	16.5 mm	Cellular General ISM Navigation WiFi	DCS GLONASS GPS GSM LTE PCS UMTS Wi-Fi	Wide Band	IP67	8	-4.51 dBi 1.2 dBi 1.4 dBi 1.72 dBi 2.75 dBi 2.8 dBi 2.97 dBi	1.592 GHz 1.795 GHz 1.92 GHz 2.045 GHz 2.59 GHz 752 MHz 859 MHz 920 MHz
