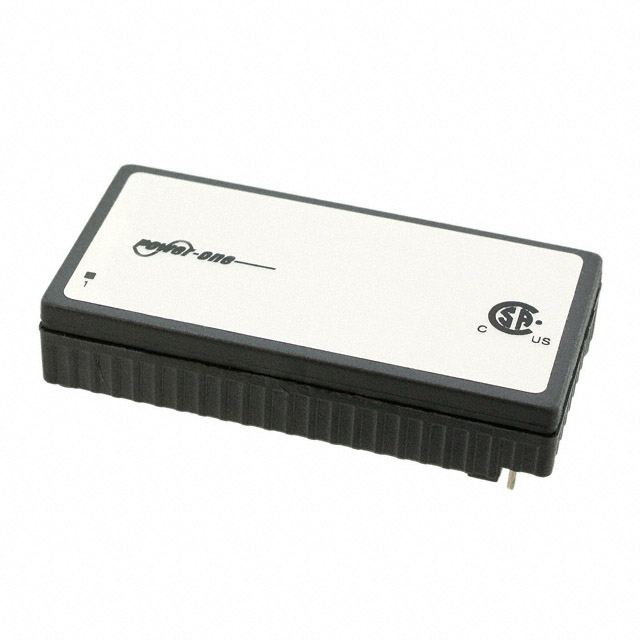

20IMX7 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE 15V 0.2A 6W IN 8.4-36V
| Part | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Number of Outputs | Voltage - Input (Min) [Min] | Features | Voltage - Isolation | Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Output 1 | Applications | Power (Watts) | Voltage - Input (Max) [Max] | Efficiency | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) [Max] | Current - Output (Max) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | 14-DIP Module 8 Leads | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.4 mm | 2 | 8.4 V | OCP OTP OVP Remote On/Off SCP UVLO | 1.5 kV | Isolated Module Conformal Coated | 85 °C | -40 C | Through Hole | 15 V | ITE (Commercial) Railway | 7 W | 36 V | 83 % | 15 V | ||||
 Bel Fuse Inc. | 14-DIP Module | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.4 mm | 2 | 8.4 V | OCP OTP OVP Remote On/Off SCP UVLO | 1.2 kV | Isolated Module Conformal Coated | 85 °C | -40 C | Through Hole | 24 V | ITE (Commercial) Railway | 7 W | 36 V | 83 % | 24 V | 130 mA | 130 mA | ||
 Bel Fuse Inc. | 14-SMD Module 8 Leads | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.4 mm | 2 | 8.4 V | OCP OTP OVP Remote On/Off SCP UVLO | 1.5 kV | Isolated Module Conformal Coated | 85 °C | -40 C | Surface Mount | 15 V | ITE (Commercial) Railway | 7 W | 36 V | 83 % | 15 V | ||||
 Bel Fuse Inc. | 14-DIP Module | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.4 mm | 1 | 8.4 V | OCP OTP OVP Remote On/Off SCP UVLO | 1.5 kV | Isolated Module Conformal Coated | 85 °C | -40 C | Through Hole | 5.1 V | ITE (Commercial) Railway | 7 W | 36 V | 78 % | 1.2 A | ||||
Bel Fuse Inc. | 14-DIP Module 9 Leads | 25.4 mm | 50.8 mm | 1 " | 0.42 " | 2 in | 10.5 mm | 2 | 8.4 V | OCP OTP OVP Remote On/Off SCP UVLO | 1.5 kV | Isolated Module Conformal Coated | 85 °C | -40 C | Through Hole | 5 V | ITE (Commercial) Railway | 7 W | 36 V | 81 % | 5 V | 600 mA | 600 mA | ||
 Bel Fuse Inc. | 14-DIP Module | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.4 mm | 2 | 8.4 V | OCP OTP OVP Remote On/Off SCP UVLO | 1.5 kV | Isolated Module Conformal Coated | 85 °C | -40 C | Through Hole | 5 V | ITE (Commercial) Railway | 7 W | 36 V | 81 % | 5 V | 600 mA | 600 mA | ||
Bel Fuse Inc. | 14-DIP Module | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.4 mm | 2 | 8.4 V | OCP OTP OVP Remote On/Off SCP UVLO | 1.5 kV | Isolated Module Conformal Coated | 85 °C | -40 C | Through Hole | 12 V | ITE (Commercial) Railway | 7 W | 36 V | 83 % | 12 V | 250 mA | |||
Bel Fuse Inc. | 14-DIP Module 8 Leads | 25.4 mm | 50.8 mm | 1 " | 0.41 in | 2 in | 10.4 mm | 2 | 8.4 V | OCP OTP OVP Remote On/Off SCP UVLO | 1.5 kV | Isolated Module Conformal Coated | 85 °C | -40 C | Through Hole | 15 V | ITE (Commercial) Railway | 7 W | 36 V | 83 % | 15 V |
