TGH Series

Manufacturer: Ohmite

Catalog

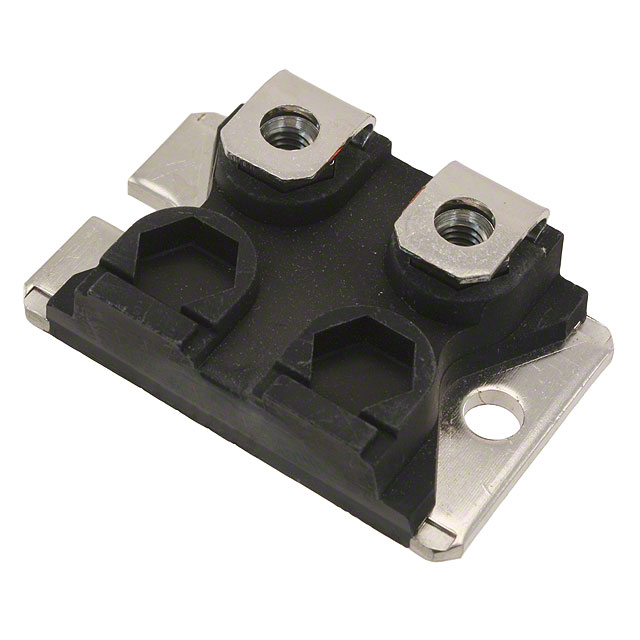

PLANAR RESISTORS - CHASSIS MOUNT 120WATT 1OHM 5% HIGH POWER

Part	Composition	Lead Style	Temperature Coefficient	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Coating, Housing Type	Power (Watts)	Mounting Feature	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max]
Ohmite TGHHV1R00JE	Thick Film	M4 Threaded	250 ppm/°C	1 Ohms	12.26 mm	0.483 in	5 %	155 C	-55 C	1.496 "	38 mm	0.98 in	24.9 mm	High Frequency Non-Inductive Pulse Withstanding RF	Epoxy Coated	120 W	Flanges	SOT-227-2
Ohmite TGHHV10R0JE	Thick Film	M4 Threaded	250 ppm/°C	10 Ohms	12.26 mm	0.483 in	5 %	155 C	-55 C	1.496 "	38 mm	0.98 in	24.9 mm	High Frequency Non-Inductive Pulse Withstanding RF	Epoxy Coated	120 W	Flanges	SOT-227-2
Ohmite TGHLV10K0JE	Thick Film	M4 Threaded	250 ppm/°C	10000 Ohms	12.26 mm	0.483 in	5 %	155 C	-55 C	1.496 "	38 mm	0.98 in	24.9 mm	High Frequency Non-Inductive Pulse Withstanding RF	Epoxy Coated	200 Watts	Flanges	SOT-227-2
Ohmite TGHLV500RJE	Thick Film	M4 Threaded	250 ppm/°C	0.5 kOhms	12.26 mm	0.483 in	5 %	155 C	-55 C	1.496 "	38 mm	0.98 in	24.9 mm	High Frequency Non-Inductive Pulse Withstanding RF	Epoxy Coated	200 Watts	Flanges	SOT-227-2
Ohmite TGHHV15R0FE	Thick Film	M4 Threaded	250 ppm/°C	15 Ohms			1 %	155 C	-55 C	1.496 "	38 mm	0.98 in	24.9 mm	High Frequency Non-Inductive Pulse Withstanding RF	Epoxy Coated	120 W		SOT-227-2	12.2 mm	0.48 in
