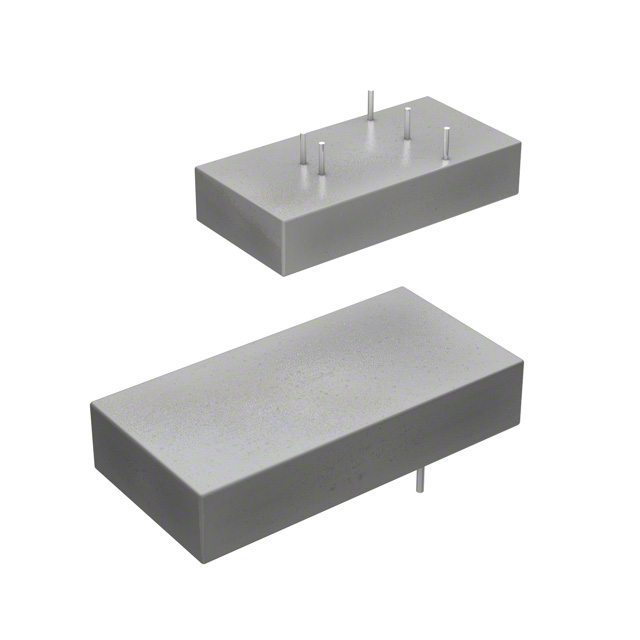

RP15-FW Series
Manufacturer: Recom Power
Beta
⌘K

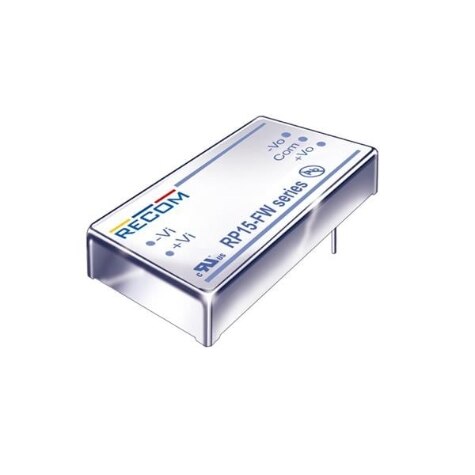

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 15W DC/DC 1.6KV REG 4:1 9-36VIN 15VOUT
| Part | Type | Efficiency | Applications | Voltage - Isolation | Control Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Features | Number of Outputs | Size / Dimension | Voltage - Input (Min) [Min] | Power (Watts) | Mounting Type | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Package / Case | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | Isolated Module | 86 % | ITE (Commercial) | 1.6 kV | Active Low Enable | -40 C | 75 ░C | 15 V | OCP OVP Remote On/Off SCP | 1 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 9 V | 15 W | Through Hole | 1 A | 36 V | 6-DIP Module | |||
 Recom Power | Isolated Module | 86 % | ITE (Commercial) | 1.6 kV | -40 C | 75 ░C | 15 V | OCP OVP SCP | 2 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 9 V | 15 W | Through Hole | 36 V | 6-DIP Module | -15 V | 500 mA | |||
 Recom Power | Isolated Module | 85 % | ITE (Commercial) | 1.6 kV | -40 C | 75 ░C | 12 V | OCP OVP SCP | 2 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 9 V | 15 W | Through Hole | 625 mA | 36 V | 6-DIP Module | -12 V | 625 mA | ||
Recom Power | Isolated Module | 85 % | ITE (Commercial) | 1.6 kV | -40 C | 75 ░C | 12 V | OCP OVP SCP | 1 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 9 V | 15 W | Through Hole | 1.25 A | 36 V | 6-DIP Module | ||||
Recom Power | Isolated Module | 84 % | ITE (Commercial) | 1.6 kV | -40 C | 65 °C | 3.3 V | OCP OVP SCP | 1 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 18 V | 15 W | Through Hole | 4.5 A | 75 V | 6-DIP Module | ||||
 Recom Power | Isolated Module | ITE (Commercial) | 1.6 kV | -40 C | 65 °C | 5 V | OCP OVP SCP | 2 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 9 V | 15 W | Through Hole | 36 V | 6-DIP Module | -5 V | 1.5 A | ||||
Recom Power | Isolated Module | 86 % | ITE (Commercial) | 1.6 kV | -40 C | 75 ░C | 15 V | OCP OVP SCP | 1 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 18 V | 15 W | Through Hole | 1 A | 75 V | 6-DIP Module | ||||
Recom Power | Isolated Module | ITE (Commercial) | 1.6 kV | Active High Enable | -40 C | 65 °C | 5 V | OCP OVP Remote On/Off SCP | 2 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 18 V | 15 W | Through Hole | 75 V | 6-DIP Module | -5 V | 1.5 A | |||
 Recom Power | Isolated Module | 86 % | ITE (Commercial) | 1.6 kV | Active Low Enable | -40 C | 75 ░C | 15 V | OCP OVP Remote On/Off SCP | 2 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 18 V | 15 W | Through Hole | 75 V | 6-DIP Module | -15 V | 500 mA | ||
Recom Power | Isolated Module | 84 % | ITE (Commercial) | 1.6 kV | Active Low Enable | -40 C | 65 °C | 3.3 V | OCP OVP Remote On/Off SCP | 1 | 0.4 in 10.2 mm 25.4 mm 50.8 mm | 18 V | 15 W | Through Hole | 4.5 A | 75 V | 6-DIP Module |
