K85X-AD Series
Manufacturer: Kycon, Inc.
Beta
⌘K

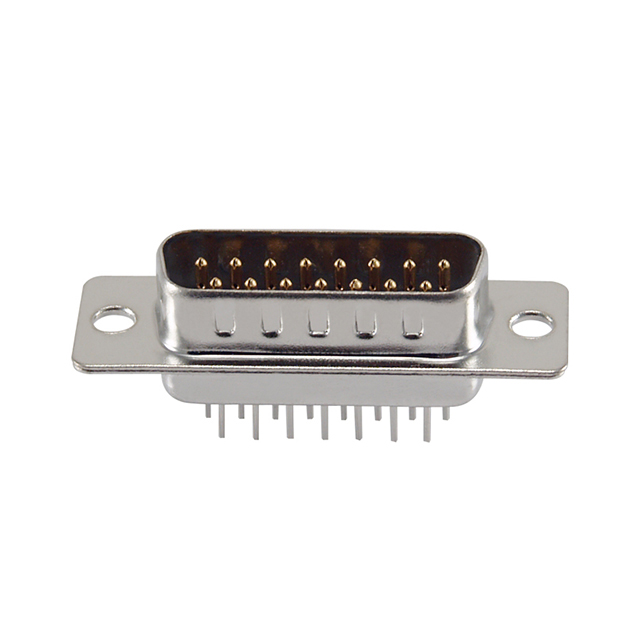

CONN D-SUB PLUG 15POS VERT SLDR
| Part | Contact Material | Voltage Rating | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Current Rating (Amps) | Connector Type | Shell Material, Finish | Mounting Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Shell Size, Connector Layout | Number of Rows [custom] | Number of Positions | Connector Style | Termination | Contact Finish | Flange Feature | Features | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | Brass | 30 VDC | Stamped | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 2 A | Plug Male Pins | Nickel Plated Steel | Through Hole | Signal | 30 Áin | 0.76 Ám | UL94 V-0 | 2 | 2 | 15 | D-Sub | Solder | Gold | Board Side (4-40) | Board Lock Grounding Indents | |
 Kycon, Inc. | Brass | 30 VDC | Stamped | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 2 A | Plug Male Pins | Nickel Plated Steel | Through Hole | Signal | 30 Áin | 0.76 Ám | UL94 V-0 | 2 | 2 | 15 | D-Sub | Solder | Gold | Housing/Shell (Unthreaded) | Grounding Indents | |
Kycon, Inc. | Brass | 30 VDC | Stamped | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 2 A | Plug Male Pins | Nickel Plated Steel | Through Hole | Signal | UL94 V-0 | 2 | 2 | 15 | D-Sub | Solder | Gold | Housing/Shell (Unthreaded) | Grounding Indents | Flash | ||
Kycon, Inc. | Brass | 30 VDC | Stamped | -55 C | 105 ░C | Polybutylene Terephthalate (PBT) Glass Filled | Black | 2 A | Receptacle Female Sockets | Nickel Plated Steel | Through Hole | Signal | UL94 V-0 | 2 | 2 | 15 | D-Sub | Solder | Gold | Housing/Shell (Unthreaded) | Board Lock | Flash |
