BUCHANAN WireMate Modular Screwless Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
WIRE-TO-BOARD TERMINAL BLOCK, SCREWLESS, 3.5 MM, 4 POSITIONS, 20 AWG, 14 AWG, PUSH IN
| Part | Pitch | Pitch | Current | Wire Gauge [Max] | Wire Gauge [Min] | Color | Number of Levels | Wire Termination | Mating Orientation | Mounting Type | Voltage | Positions Per Level | Features | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Orientation | Mating Orientation | Clamp Material - Plating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

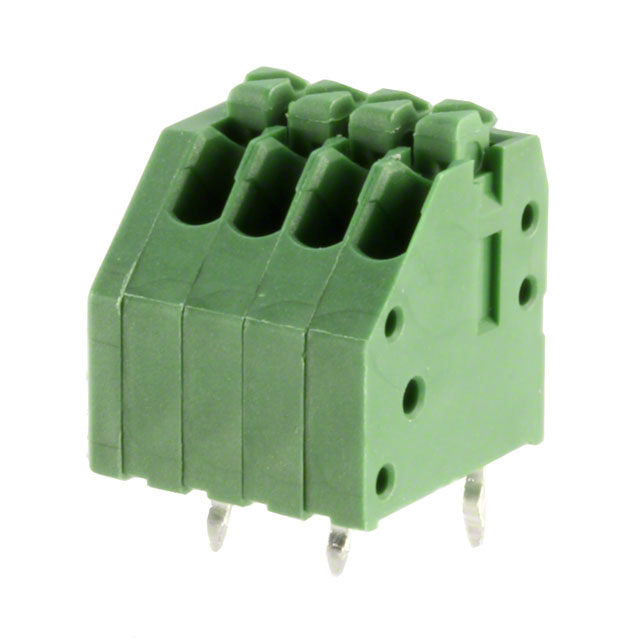

 TE Connectivity AMP Connectors | 3.5 mm | 0.138 " | 6 A | 20 AWG | 14 AWG | Green | 1 | Leg Spring Push-In Spring | Vertical with Board | Kinked Pin Through Hole | 300 VDC | 4 | |||||||

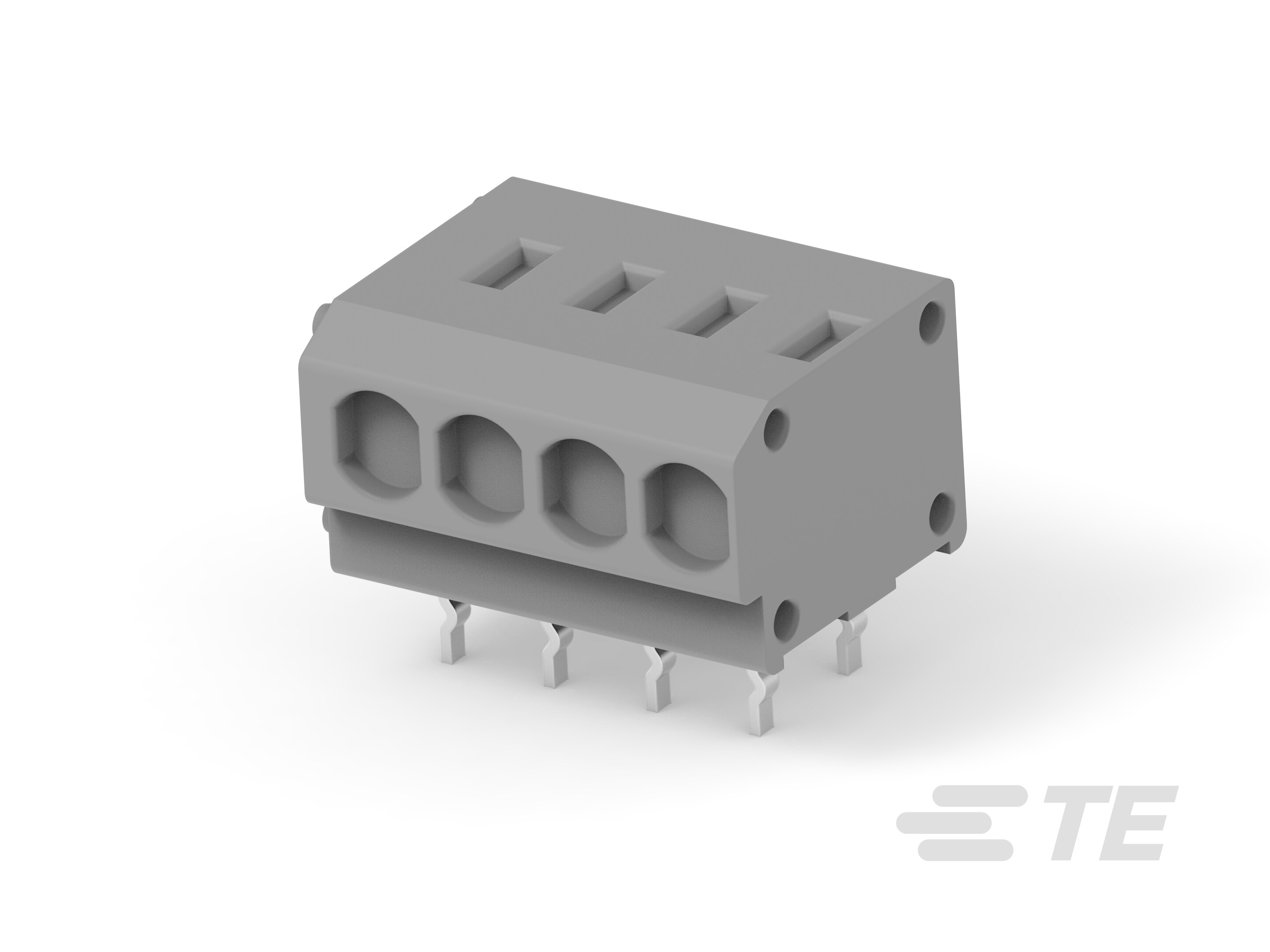

 TE Connectivity AMP Connectors | 3.81 mm | 0.15 in | 8 A | 20 AWG | 16 AWG | 1 | Leg Spring Push-In Spring | Horizontal with Board | Kinked Pin Through Hole | 300 VDC | 3 | Interlocking (Side) | |||||||

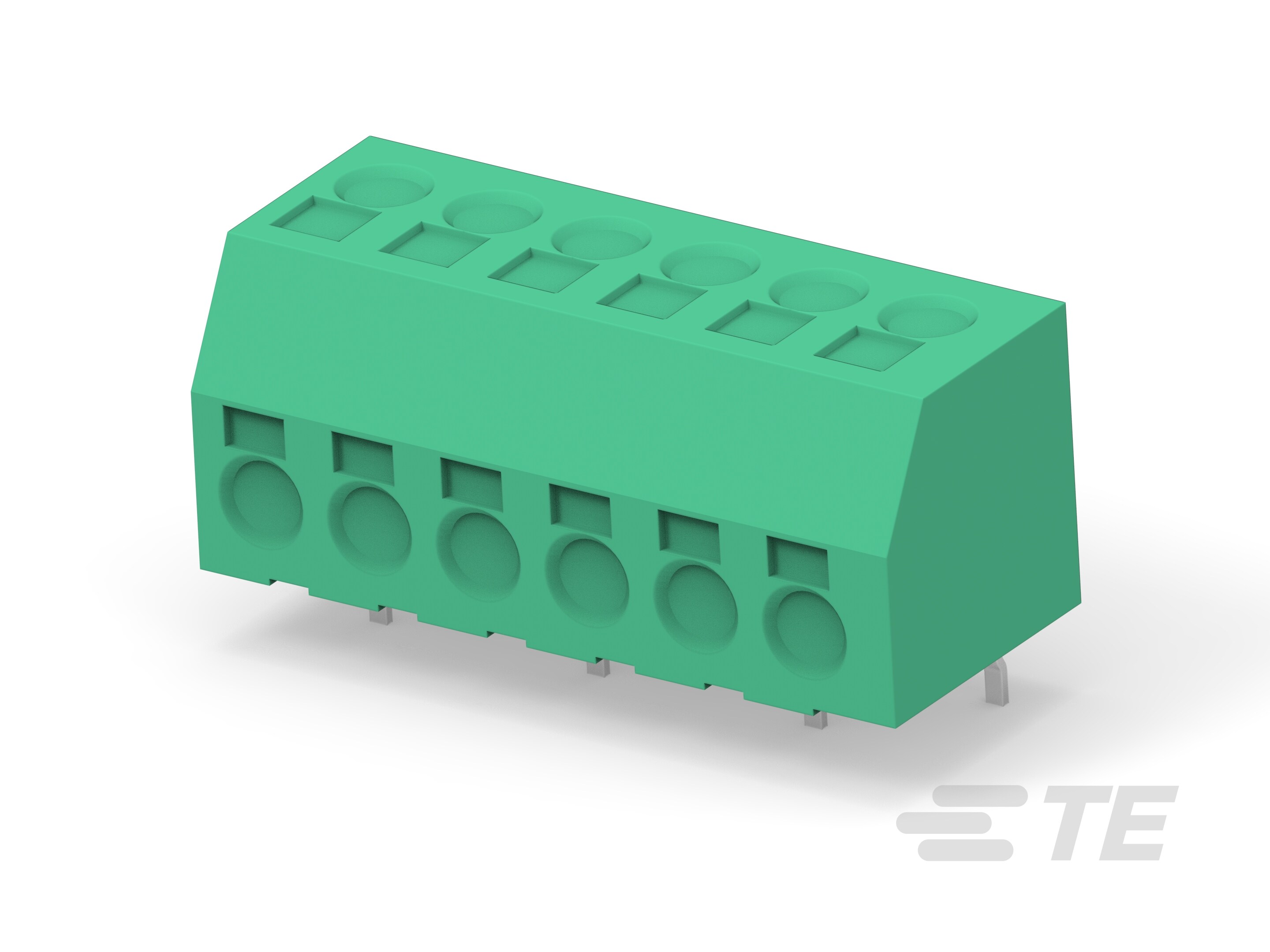

 TE Connectivity AMP Connectors | 5 mm | 0.197 in | 10 A | 20 AWG | 16 AWG | Green | 1 | Leg Spring Push-In Spring | Horizontal and Vertical with Board | Kinked Pin Through Hole | 300 VDC | 6 | |||||||

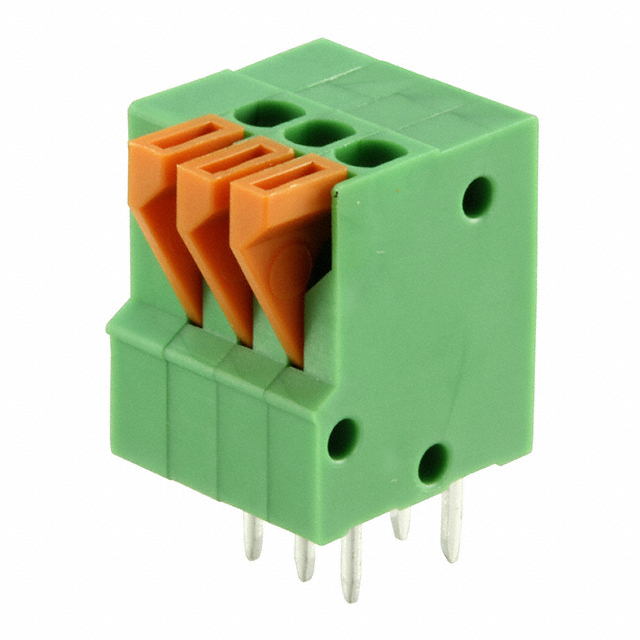

 TE Connectivity AMP Connectors | 3.5 mm | 0.138 " | 6 A | 20 AWG | 16 AWG | Green | 1 | Screwless | Horizontal with Board | Through Hole | 300 VDC | 3 | |||||||
 TE Connectivity AMP Connectors | 5.08 mm | 0.2 in | 10 A | 20 AWG | 14 AWG | 1 | Leg Spring Push-In Spring | Horizontal with Board | Kinked Pin Through Hole | 300 VDC | 2 | Interlocking (Side) | |||||||
 TE Connectivity AMP Connectors | 2.5 mm | 0.098 in | 4 A | 28 AWG | 19.5 AWG | Gray | 1 | Screwless - Spring Cage Tension Clamp | Through Hole | 150 V | 2 | Interlocking (Side) | Brass - Tin Plated | -40 C | 105 ░C | 135 ° | 45 ° | ||
 TE Connectivity AMP Connectors | 2.54 mm | 0.1 " | 6 A | 26 AWG | 19.5 AWG | Green | 1 | Screwless - Spring Cage Tension Clamp | Vertical with Board | Through Hole | 150 V | 3 | Copper Alloy - Tin Plated | -40 C | 105 ░C | Stainless Steel | |||

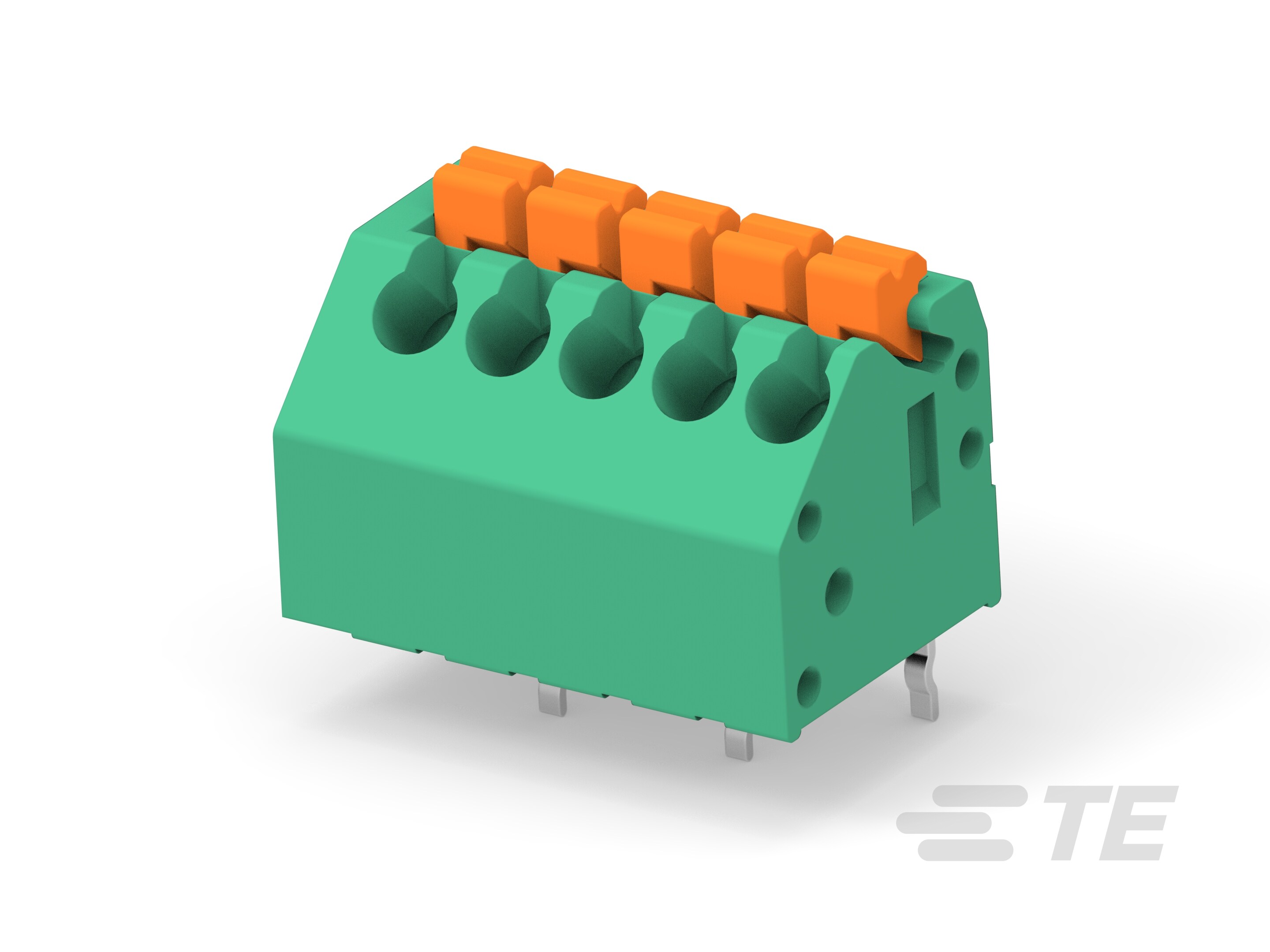

 TE Connectivity AMP Connectors | 3.5 mm | 0.138 " | 6 A | 20 AWG | 14 AWG | Green | 1 | Leg Spring Push-In Spring | Vertical with Board | Kinked Pin Through Hole | 300 VDC | 5 | |||||||
 TE Connectivity AMP Connectors | 2.5 mm | 0.098 in | 5 A | 26 AWG | 19.5 AWG | Green | 1 | Screwless - Push Button Clamp | Vertical with Board | Kinked Pin Through Hole | 300 VDC | 4 | Copper Alloy - Tin Plated | -40 C | 105 ░C | ||||
 TE Connectivity AMP Connectors | 5 mm | 0.197 in | 20 A | 28 AWG | 12 AWG | Gray | 1 | Screwless - Spring Cage Tension Clamp | Horizontal with Board | Through Hole | 300 VDC | 3 | Interlocking (Side) Lever Actuated | Brass - Tin Plated | -40 C | 105 ░C |
