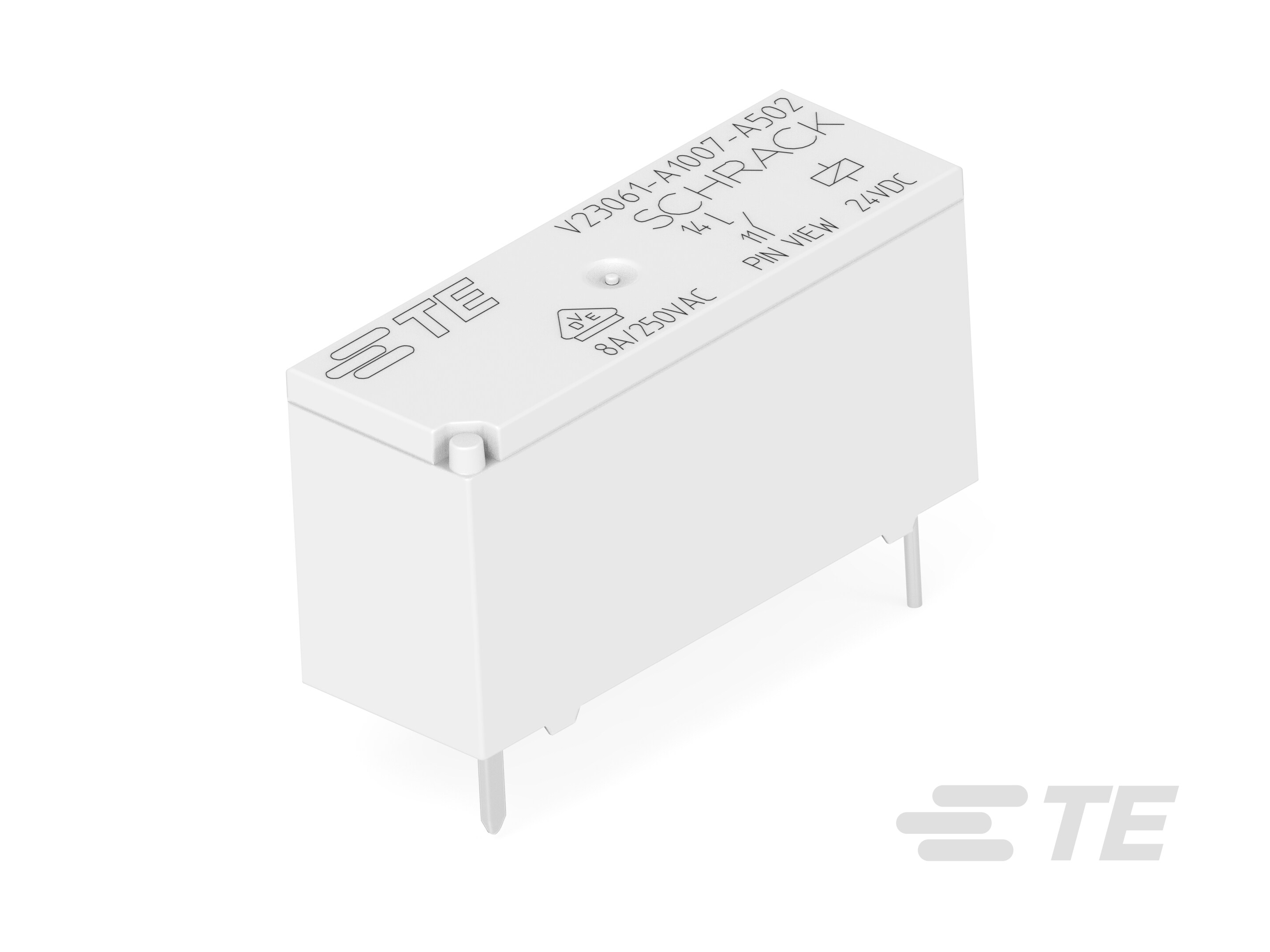

1393222 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
POWER/SIGNAL RELAY, 1 FORM A, 9V
| Part | Contact Rating (Current) | Termination Style | Switching Voltage [Max] | Approval Agency | Contact Form | Mounting Type | Seal Rating | Must Release Voltage | Relay Type | Load - Max Switching [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Coil Current | Operate Time | Release Time | Must Operate Voltage | Contact Material | Coil Voltage | Coil Resistance | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 8 A | PC Pin | 400 VAC | cURus VDE | SPST-NO (1 Form A) | Through Hole | Sealed - Fully | 0.9 VDC | General Purpose | 2000 VA | 85 °C | -40 C | Non Latching | 24.7 mA | 10 ms | 5 ms | 6.1 VDC | Silver Tin Oxide (AgSnO) | 9 VDC | ||
 TE Connectivity AMP Connectors | 8 A | PC Pin | 400 VAC | cURus VDE | SPDT (1 Form C) | Through Hole | Sealed - Fully | 0.6 VDC | General Purpose | 85 °C | -40 C | Non Latching | 36.4 mA | 10 ms | 5 ms | 4.1 VDC | Silver Cadmium Oxide (AgCdO) | 165 Ohms | 3200 VA | ||
TE Connectivity AMP Connectors | 8 A | PC Pin | 400 VAC | cURus VDE | SPST-NO (1 Form A) | Through Hole | Sealed - Fully | 6 VDC | General Purpose | 85 °C | -40 C | Non Latching | 4 mA | 10 ms | 5 ms | 40.8 VDC | Silver Cadmium Oxide (AgCdO) | 60 VDC | 15.27 kOhms | 3200 VA | |
TE Connectivity AMP Connectors | 8 A | PC Pin | 400 VAC | cURus VDE | SPDT (1 Form C) | Through Hole | Sealed - Fully | 1.2 VDC | General Purpose | 85 °C | -40 C | Non Latching | 18.4 mA | 10 ms | 5 ms | 8.2 VDC | Silver Cadmium Oxide (AgCdO) | 12 VDC | 652 Ohms | 3200 VA | |
TE Connectivity AMP Connectors | 8 A | PC Pin | 400 VAC | cURus VDE | SPST-NO (1 Form A) | Through Hole | Sealed - Fully | General Purpose | 85 °C | -40 C | Non Latching | 10 ms | 5 ms | Silver Cadmium Oxide (AgCdO) | 3200 VA | ||||||
 TE Connectivity AMP Connectors | 8 A | PC Pin | 400 VAC | cURus VDE | SPST-NO (1 Form A) | Through Hole | Sealed - Fully | 2.4 VDC | General Purpose | 85 °C | -40 C | Non Latching | 10.6 mA | 10 ms | 5 ms | 16.3 VDC | Silver Nickel (AgNi) | 24 VDC | 2.27 kOhms | 3200 VA | |
TE Connectivity AMP Connectors | |||||||||||||||||||||
TE Connectivity AMP Connectors | 8 A | PC Pin | 400 VAC | cURus VDE | SPDT (1 Form C) | Through Hole | Sealed - Fully | 0.9 VDC | General Purpose | 85 °C | -40 C | Non Latching | 24.7 mA | 10 ms | 5 ms | 6.1 VDC | Silver Cadmium Oxide (AgCdO) | 9 VDC | 364 Ohms | 3200 VA | |
TE Connectivity AMP Connectors | |||||||||||||||||||||
TE Connectivity AMP Connectors |
