2564100 Series

Catalog

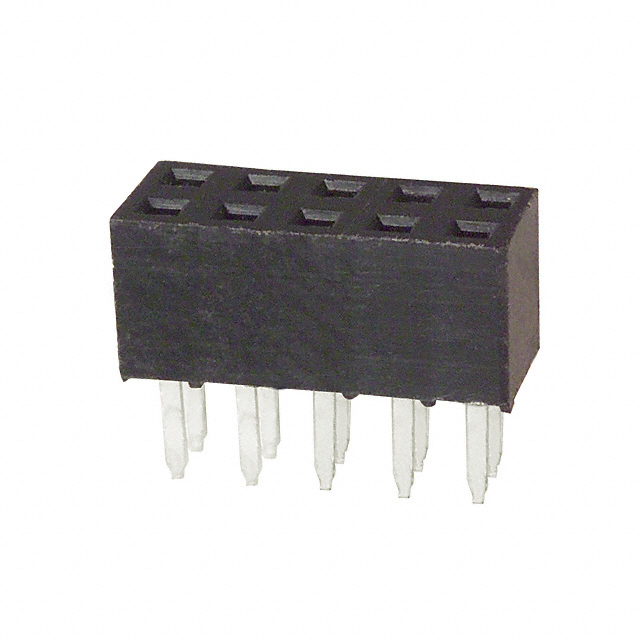

25641001RP2 ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Contact Shape	Contact Finish - Post	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Contact Type	Number of Positions Loaded	Insulation Color	Material Flammability Rating	Contact Finish - Mating	Contact Finish Thickness - Mating	Connector Type	Fastening Type	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Termination	Mounting Type
NorComp Inc. 25641001RP2	2.54 µm	100 µin	Phosphor Bronze	Square	Tin	10	-40 C	105 ░C	2	Female Socket	All	Black	UL94 V-0	Gold	Flash	Receptacle	Push-Pull	0.177 in	4.5 mm	2 mm	0.079 in	0.079 "	2 mm	0.118 in	3 mm	Solder	Through Hole
