UDB Series

DIN Rail Terminal Blocks UDB 2X35/25 BK

Manufacturer: Phoenix Contact

Catalog

DIN Rail Terminal Blocks UDB 2X35/25 BK

Catalog

DIN Rail Terminal Blocks UDB 2X35/25 BK

Part	Voltage - IEC	Terminal - Width [y]	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Housing Color	Mounting Type	Current - IEC	Number of Positions	Number of Levels	Termination Style	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Stripping Length	Material Flammability Rating	Height (Max) [z]	Height (Max) [z]	Material - Insulation	Length	Length [x]	Height (Max)	Height (Max) [Max] [z]	Length

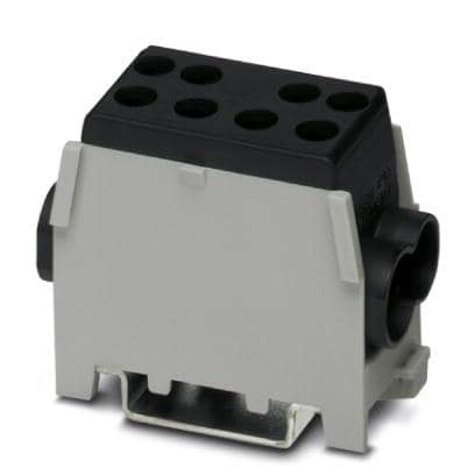

Phoenix Contact 3071351	400 V	27 mm	Branch Terminal	2 AWG	8 AWG	Black	DIN Rail/Channel	125 A	4	1	Screw	35 mm²	10 mm²

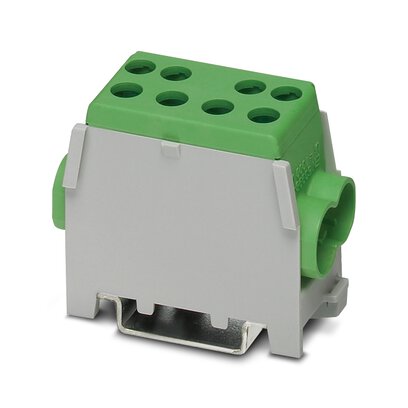

Phoenix Contact 3071354	400 V	27 mm	Branch Terminal	2 AWG	8 AWG	Green	DIN Rail/Channel	125 A	4	1	Screw	35 mm²	10 mm²	25 mm	UL94 V-0	2.106 in	53.5 mm	Nylon Polyamide (PA)	55 mm	2.165 in

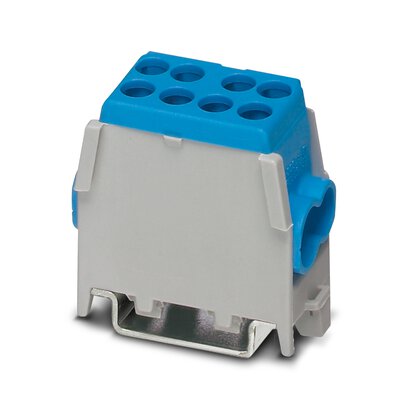

Phoenix Contact 3071358	400 V	23 mm	Branch Terminal	2 AWG	8 AWG	Blue	DIN Rail/Channel	101 A	4	1	Screw	25 mm²	1.5 mm²	16 mm	UL94 V-0			Nylon Polyamide (PA)	46 mm		49.5 mm	1.949 in	1.811 "
