083614 Series
Manufacturer: Molex
Beta
⌘K
CONN MICRO-D PLUG 25P VERT SLDR
| Part | Number of Rows | Connector Type | Material Flammability Rating | Flange Feature | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Mounting Type | Shell Material, Finish | Operating Temperature [Max] | Operating Temperature [Min] | Features | Dielectric Material | Termination | Connector Style | Backset Spacing | Backset Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

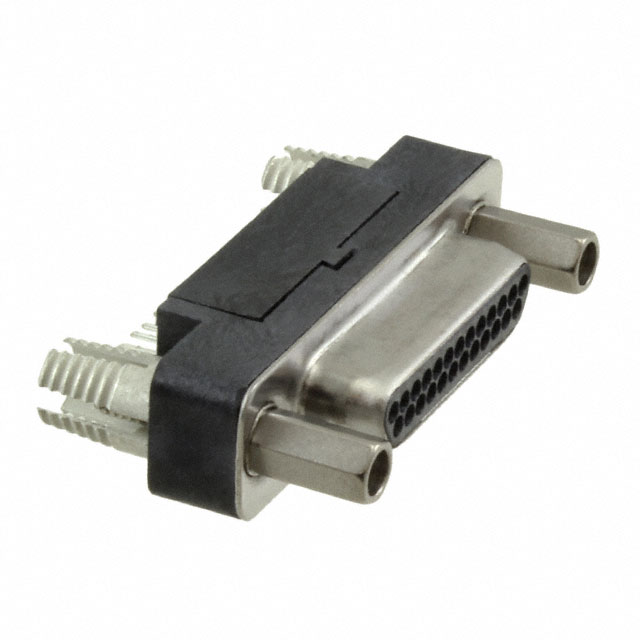

 Molex | 2 | Male Pins Plug | UL94 V-0 | Female Screwlock (2-56) Mating Side | Signal | 15 µin | 0.38 µm | Copper Alloy | 0.05 | 0.05 | Gold | Through Hole | Nickel Plated Steel | 125 °C | -40 °C | Board Lock Shielded | Liquid Crystal Polymer (LCP) | Solder | D-Type Micro-D | ||

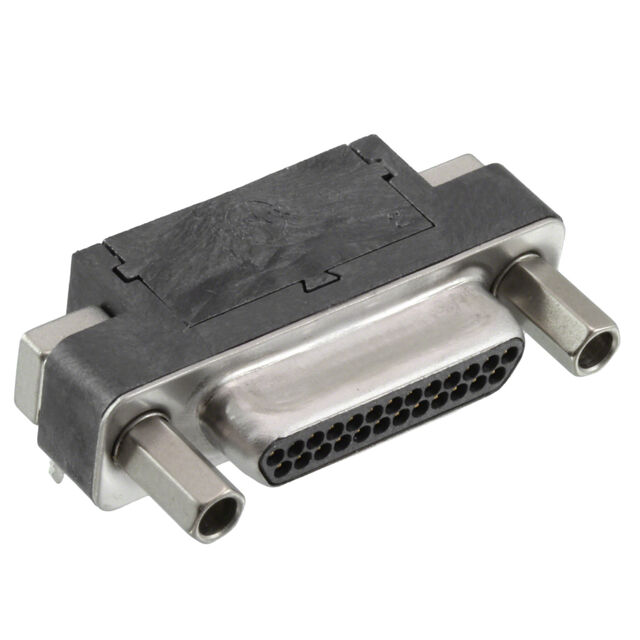

 Molex | 2 | Male Pins Plug | UL94 V-0 | Female Screwlock (2-56) Mating Side | Signal | 15 µin | 0.38 µm | Copper Alloy | 0.05 | 0.05 | Gold | Panel Mount Right Angle Through Hole | Nickel Plated Steel | 125 °C | -40 °C | Board Lock Shielded | Liquid Crystal Polymer (LCP) | Solder | D-Type Micro-D | 0.267 in | 6.78 mm |
