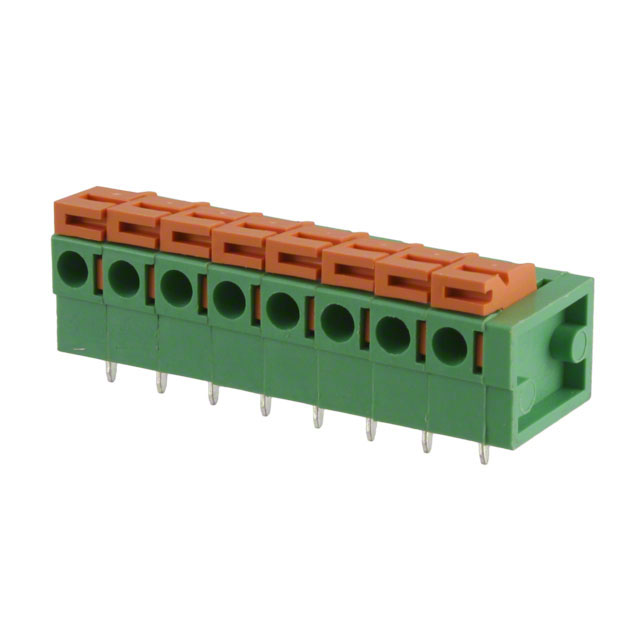

OSTHA08 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLK 8POS TOP ENT 2.54MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Clamp Material - Plating [custom] | Contact Material - Plating | Housing Material | Mounting Type | Mating Orientation | Voltage | Pitch | Pitch | Wire Termination | Current | Positions Per Level | Color | Wire Gauge [Min] | Wire Gauge [Max] | Number of Levels | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Brass | Thermoplastic | Through Hole | Vertical with Board | 150 V | 0.1 " | 2.54 mm | Leg Spring Push-In Spring | 2 A | 8 | Green | 19.5 AWG | 26 AWG | 1 | Lever Actuated |
 On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Brass | Thermoplastic | Through Hole | Horizontal with Board | 300 VDC | 0.2 in | 5.08 mm | Leg Spring Push-In Spring | 10 A | 8 | Green | 14 AWG | 24 AWG | 1 | Lever Actuated |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Brass | Thermoplastic | Through Hole | Horizontal with Board | 300 VDC | 0.197 in | 5 mm | Leg Spring Push-In Spring | 10 A | 8 | Green | 14 AWG | 24 AWG | 1 | Lever Actuated |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Brass | Thermoplastic | Through Hole | Horizontal with Board | 300 VDC | 0.295 in | 7.5 mm | Leg Spring Push-In Spring | 10 A | 8 | Green | 14 AWG | 24 AWG | 1 | Lever Actuated |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Brass | Thermoplastic | Through Hole | Vertical with Board | 300 VDC | 0.394 in | 10 mm | Leg Spring Push-In Spring | 10 A | 8 | Green | 14 AWG | 24 AWG | 1 | Lever Actuated |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Brass | Thermoplastic | Through Hole | Vertical with Board | 300 VDC | 0.2 in | 5.08 mm | Leg Spring Push-In Spring | 10 A | 8 | Green | 14 AWG | 24 AWG | 1 | Lever Actuated |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Brass | Thermoplastic | Through Hole | Horizontal with Board | 300 VDC | 0.3 in | 7.62 mm | Leg Spring Push-In Spring | 10 A | 8 | Green | 14 AWG | 24 AWG | 1 | Lever Actuated |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Brass | Thermoplastic | Through Hole | Horizontal with Board | 150 V | 0.1 " | 2.54 mm | Leg Spring Push-In Spring | 2 A | 8 | Green | 19.5 AWG | 26 AWG | 1 | Lever Actuated |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Brass | Thermoplastic | Through Hole | Vertical with Board | 300 VDC | 0.3 in | 7.62 mm | Leg Spring Push-In Spring | 10 A | 8 | Green | 14 AWG | 24 AWG | 1 | Lever Actuated |
On Shore Technology Inc. | -30 ░C | 105 ░C | Stainless Steel | Brass | Thermoplastic | Through Hole | Vertical with Board | 300 VDC | 0.197 in | 5 mm | Leg Spring Push-In Spring | 10 A | 8 | Green | 14 AWG | 24 AWG | 1 | Lever Actuated |
