1546105 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

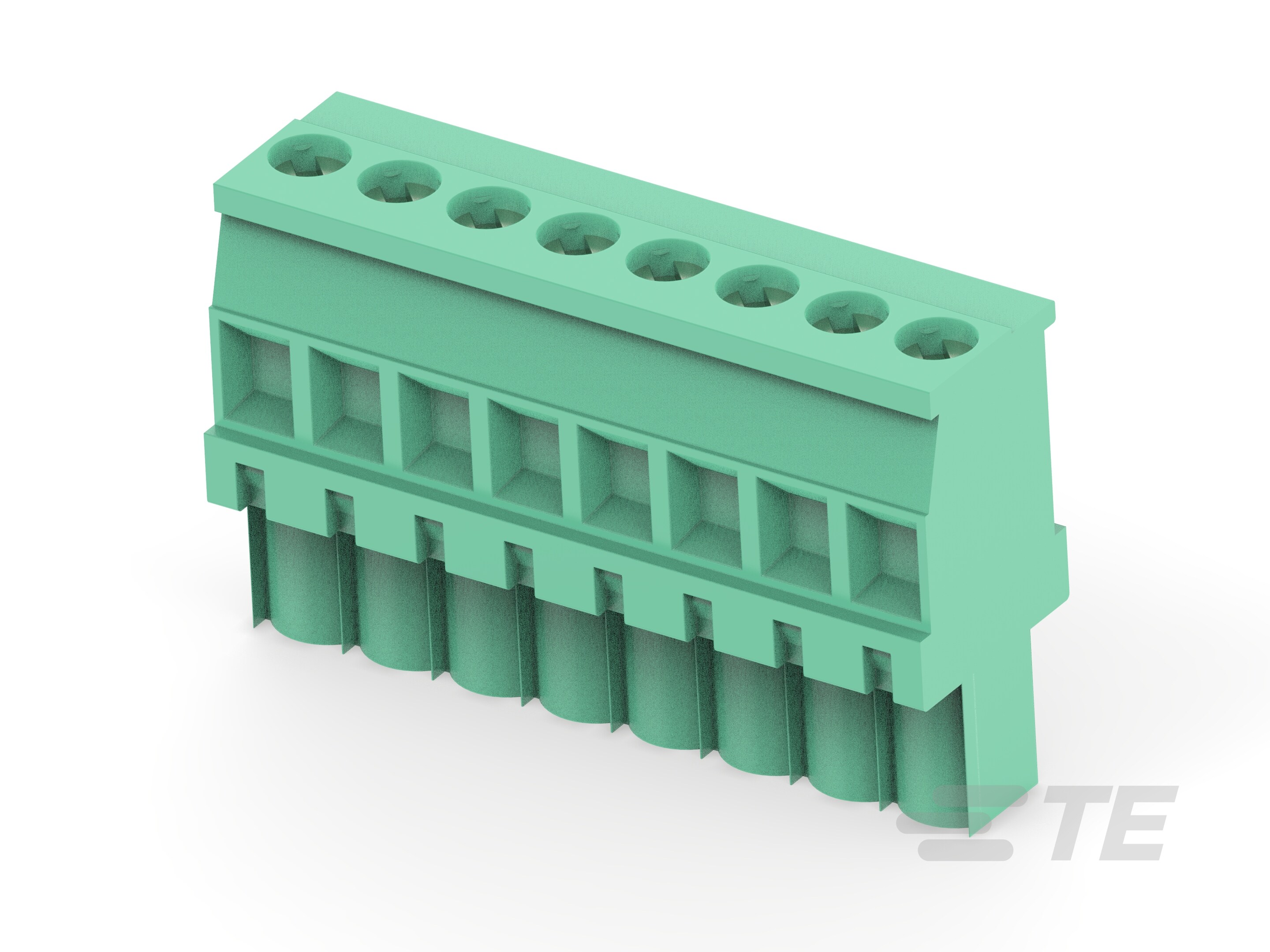

TERM BLOCK PLUG 8POS 5.08MM

Part	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Insulation Height	Insulation Height	Torque - Screw	Torque - Screw	Screw Size	Wire Strip Length [Max]	Wire Strip Length [Min]	Contact Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Positions Per Level	Voltage - UL	Contact Mating Finish	Termination Style	Pitch	Pitch	Number of Levels	Plug Wire Entry [custom]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Type	Number of Positions	Color	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Features
TE Connectivity AMP Connectors 1546105-8	3 mm˛	0.05 mm˛	0.984 "	25 mm	7 Lb-In	0.79 Nm	M3	7.5 mm	6 mm	Phosphor Bronze	UL94 V-0	-40 C	110 °C	8	300 V	Tin	Screw - Rising Cage Clamp	5.08 mm	0.2 in	1	270 °	3 mm²	0.05 mm²	Plug Female Sockets	8	Black	30 AWG	12 AWG	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-1546105-5			0.984 "	25 mm	7 Lb-In	0.79 Nm	M3	7.5 mm	6 mm	Phosphor Bronze	UL94 V-0	-40 C	110 °C	15	300 V	Tin	Screw - Rising Cage Clamp	5.08 mm	0.2 in	1	270 °	3 mm²	0.05 mm²	Plug Female Sockets	15	Black	30 AWG	12 AWG	Free Hanging (In-Line)
TE Connectivity AMP Connectors 5-1546105-6	3 mm˛	0.05 mm˛	0.984 "	25 mm	7 Lb-In	0.79 Nm	M3	7.5 mm	6 mm	Phosphor Bronze	UL94 V-0	-40 C	110 °C	12	300 V	Tin	Screw - Rising Cage Clamp	5.08 mm	0.2 in	1	270 °	3 mm²	0.05 mm²	Plug Female Sockets	12	Black	30 AWG	12 AWG	Free Hanging (In-Line)	Positions Stamped Retention Latches (Non-Wire Side)
TE Connectivity AMP Connectors 1546105-5			0.984 "	25 mm	7 Lb-In	0.79 Nm	M3	7.5 mm	6 mm	Phosphor Bronze	UL94 V-0	-40 C	110 °C	5	300 V	Tin	Screw - Rising Cage Clamp	5.08 mm	0.2 in	1	270 °	3 mm²	0.05 mm²	Plug Female Sockets	5	Black	30 AWG	12 AWG	Free Hanging (In-Line)
TE Connectivity AMP Connectors 1-1546105-1			0.984 "	25 mm	7 Lb-In	0.79 Nm	M3	7.5 mm	6 mm	Phosphor Bronze	UL94 V-0	-40 C	110 °C	11	300 V	Tin	Screw - Rising Cage Clamp	5.08 mm	0.2 in	1	270 °	3 mm²	0.05 mm²	Plug Female Sockets	11	Black	30 AWG	12 AWG	Free Hanging (In-Line)
TE Connectivity AMP Connectors 2-1546105-1			0.984 "	25 mm	7 Lb-In	0.79 Nm	M3	7.5 mm	6 mm	Phosphor Bronze	UL94 V-0	-40 C	110 °C	21	300 V	Tin	Screw - Rising Cage Clamp	5.08 mm	0.2 in	1	270 °	3 mm²	0.05 mm²	Plug Female Sockets	21	Black	30 AWG	12 AWG	Free Hanging (In-Line)
