ALMD-EL3 Series

Catalog

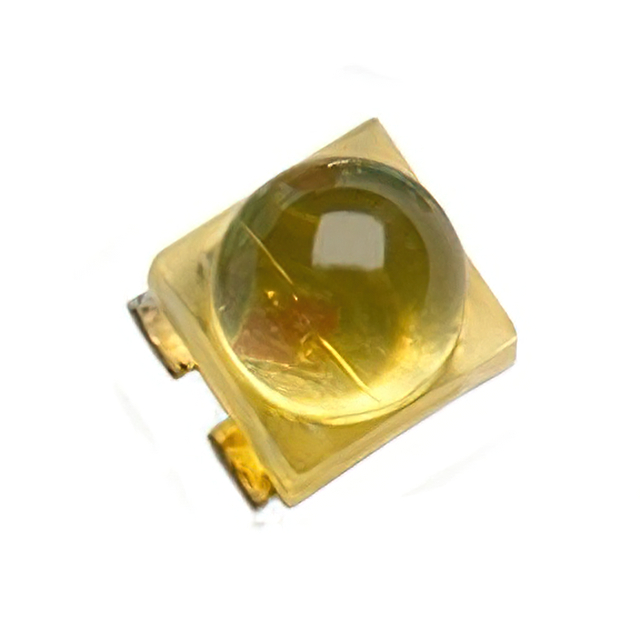

LED AMBER CLEAR 4SMD

Part	Height (Max) [Max] [z]	Lens Style	Millicandela Rating	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Current - Test	Viewing Angle	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Package / Case	Wavelength - Dominant	Color	Supplier Device Package	Configuration
Broadcom Limited ALMD-EL3D-WXL02	7 mm	Round with Domed Top	7400 mcd	594 nm	2.1 V	20 mA	30 °	Clear	4.2 mm	4.2 mm	Surface Mount	4-SMD Gull Wing	590 nm	Amber	4-SMD
Broadcom Limited ALMD-EL3D-WY002	7 mm	Round with Domed Top	8750 mcd	594 nm	2.1 V	20 mA	30 °	Clear	4.2 mm	4.2 mm	Surface Mount	4-SMD Gull Wing	590 nm	Amber	4-SMD
Broadcom Limited ALMD-EL3E-WY002	7 mm	Round with Domed Top	8750 mcd	594 nm	2.1 V	20 mA	30 °		4.2 mm	4.2 mm	Surface Mount	4-SMD Gull Wing	590 nm	Amber	4-SMD
Broadcom Limited ALMD-EL3M-VX002
Broadcom Limited ALMD-EL3E-XYK02	7 mm	Round with Domed Top	9600 mcd	594 nm	2.1 V	20 mA	30 °		4.2 mm	4.2 mm	Surface Mount	4-SMD Gull Wing	590 nm	Amber	4-SMD
Broadcom Limited ALMD-EL3D-WXK02	7 mm	Round with Domed Top	7400 mcd	594 nm	2.1 V	20 mA	30 °	Clear	4.2 mm	4.2 mm	Surface Mount	4-SMD Gull Wing	590 nm	Amber	4-SMD
Broadcom Limited ALMD-EL3C-VX002
Broadcom Limited ALMD-EL3D-XYK02	7 mm	Round with Domed Top	9600 mcd	594 nm	2.1 V	20 mA	30 °	Clear	4.2 mm	4.2 mm	Surface Mount	4-SMD Gull Wing	590 nm	Amber	4-SMD
Broadcom Limited ALMD-EL3E-WXK02	7 mm	Round with Domed Top	7400 mcd	594 nm	2.1 V	20 mA	30 °		4.2 mm	4.2 mm	Surface Mount	4-SMD Gull Wing	590 nm	Amber	SMD	Standard
