FF300R07 Series

Manufacturer: INFINEON

Catalog

IGBT MODULE, DUAL, 390 A, 1.55 V, 1.1 KW, 150 °C, MODULE

Part	Supplier Device Package	Input	Vce(on) (Max) @ Vge, Ic	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	IGBT Type	Configuration	Mounting Type	Input Capacitance (Cies) @ Vce	Current - Collector Cutoff (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Package / Case
INFINEON FF300R07ME4B11BOSA1	Module	Standard	1.95 V	1100 W	-40 C	150 °C	Trench Field Stop	2 Independent	Chassis Mount	18.5 nF	1 mA	650 V	390 A	Module
INFINEON FF300R07ME4BOSA1	AG-ECONOD-3	Standard	1.95 V	20 mW	-40 °C	150 °C	Trench Field Stop	2 Independent	Chassis Mount	18.5 nF	1 mA	650 V		Module

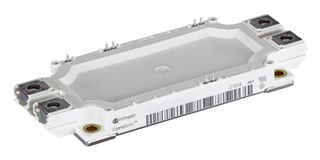

INFINEON FF300R07ME4B11BPSA1	AG-ECONOD-3	Standard	1.95 V	1100 W	-40 °C	150 °C	Trench Field Stop	2 Independent	Chassis Mount	18.5 nF	1 mA	650 V	390 A	Module
