RP-3000 Series
Manufacturer: RF Industries
Beta
⌘K
RP SMA MALE CRIMP; 50 OHMS
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Center Contact Plating | Body Material | Body Finish | Dielectric Material | Contact Termination | Shield Termination | Fastening Type | Cable Group | Number of Ports | Frequency - Max [Max] | Center Contact Material | Housing Color | Mounting Type | Impedance | Connector Style | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

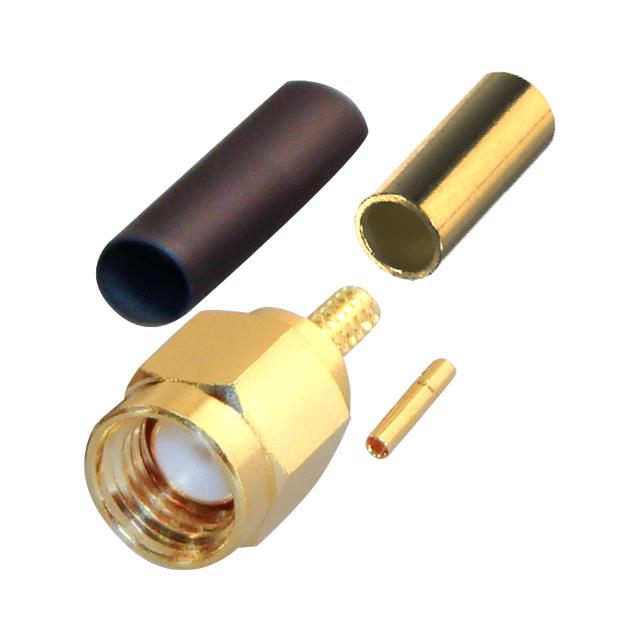

 RF Industries | -65 ░C | 85 °C | 500 V | Gold | Brass | Gold | Polytetrafluoroethylene (PTFE) | Solder | Crimp | Threaded | Belden 9258 LMR-240 RG-8X | 1 | 12.4 GHz | Beryllium Copper | Gold | Free Hanging (In-Line) | 50 Ohms | RP-SMA | Female Socket Plug |

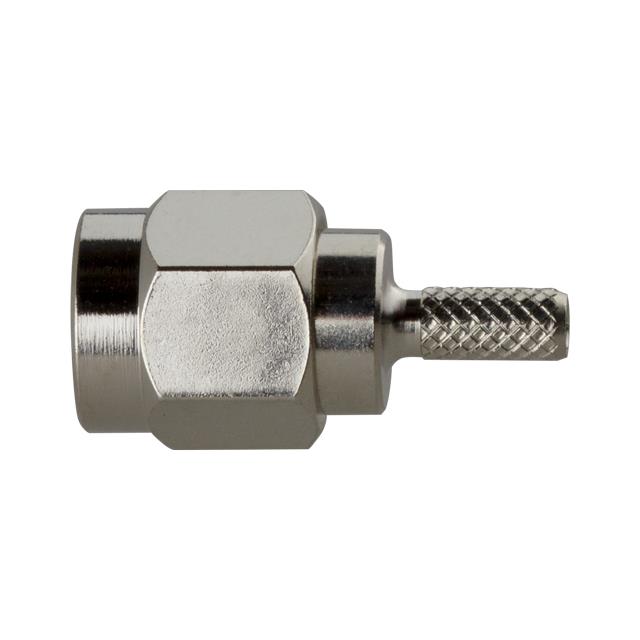

 RF Industries | -65 ░C | 85 °C | 500 V | Gold | Brass | Nickel | Polytetrafluoroethylene (PTFE) | Solder | Crimp | Threaded | 1 | 12.4 GHz | Beryllium Copper | Silver | Free Hanging (In-Line) | 50 Ohms | RP-SMA | Female Socket Plug |
