AWHW2 26 Series

Catalog

CONN HEADER R/A 26POS 2MM

Part	Fastening Type	Features	Insulation Material	Contact Type	Number of Positions	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Style	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Finish Thickness - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Contact Material	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Termination	Material Flammability Rating	Contact Length - Post [custom]	Contact Length - Post	Insulation Color	Contact Shape	Contact Finish - Mating	Contact Length - Post	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Assmann WSW Components AWHW2 26A-0202	Push-Pull	Keying Slot	Glass Filled Nylon 9T Polyamide (PA9T)	Male Pin	26	1.5 A	4 mm	0.157 in	Board to Cable/Wire	0.217 in	5.51 mm	All	Flash	Header	-40 C	105 ░C	Right Angle Through Hole	2 mm	0.079 in	Shrouded - 4 Wall	Brass	2	0.079 "	2 mm	Solder	UL94 V-0	0.11 in	2.79 mm	Black	Square	Gold
Assmann WSW Components AWHW2 26G-0202	Push-Pull	Keying Slot	Glass Filled Nylon 9T Polyamide (PA9T)	Male Pin	26	1.5 A	4 mm	0.157 in	Board to Cable/Wire	0.226 in	5.74 mm	All	Flash	Header	-40 C	105 ░C	Through Hole	2 mm	0.079 in	Shrouded - 4 Wall	Brass	2	0.079 "	2 mm	Solder	UL94 V-0	0.11 in	2.79 mm	Black	Square	Gold

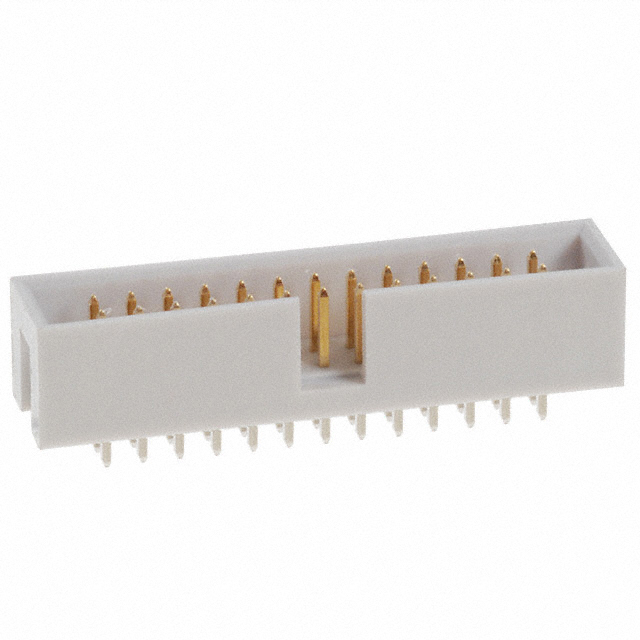

Assmann WSW Components AWHW26G-0102-T-R	Push-Pull	Keying Slot	Polybutylene Terephthalate (PBT) Glass Filled	Male Pin	26	3 A	5.7 mm	0.224 in	Board to Cable/Wire	0.354 in	9 mm	All		Header	-40 C	105 ░C	Through Hole			Shrouded - 4 Wall	Brass	2	0.1 "	2.54 mm	Solder	UL94 V-0		3.3 mm	Gray	Square	Gold	0.13 "	Tin	0.76 Ám	30 Áin	0.1 in	2.54 mm
