UP01 Series

Catalog

SWITCH SNAP ACTION N.O./N.C. SPDT LEVER PC PINS 0.1A 125VAC 30VDC 0.49N THRU-HOLE TRAY

Part	Mechanical Life	Termination Style	Actuator Type	Operating Force	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Release Force	Operating Position [x]	Operating Position [x]	Pretravel	Pretravel	Differential Travel	Differential Travel	Voltage Rating - AC	Overtravel [custom]	Overtravel [custom]	Electrical Life	Current Rating (Amps)	Circuit	Voltage Rating - DC	Switch Function	Operating Position	Operating Position	Differential Travel

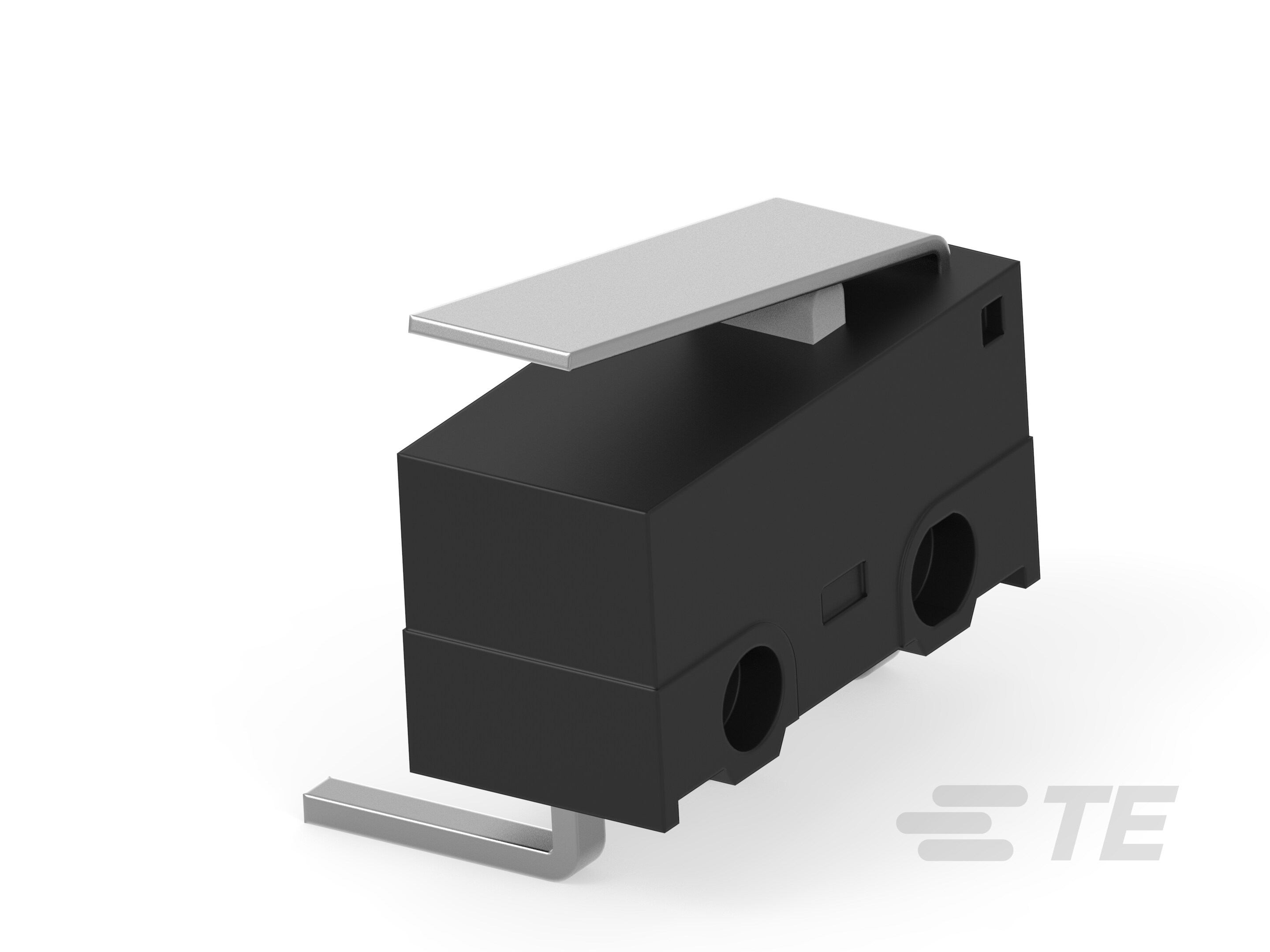

TE Connectivity AMP Connectors UP01DTBNLA04	1000000 Cycles	PC Pin	Lever Straight	50 gf	80 °C	-40 C	Right Angle Through Hole	8 gf	0.312 in	7.9 mm	0.12 in	3 mm	0.031 in	0.8 mm	125 V	0.025 in	0.6 mm	1000000 Cycles	100 mA	SPDT	30 V	On-Mom
TE Connectivity AMP Connectors UP01DTAOLA04	1000000 Cycles	PC Pin	Round (Pin Plunger)		80 °C	-40 C	Through Hole	35 gf			0.024 in	0.6 mm		0.005 in	125 V	0.008 in	0.2 mm	1000000 Cycles	100 mA	SPDT	30 V	On-Mom	0.272 in	6.9 mm	0.13 mm
