VER24 Series

Manufacturer: XP Power

Catalog

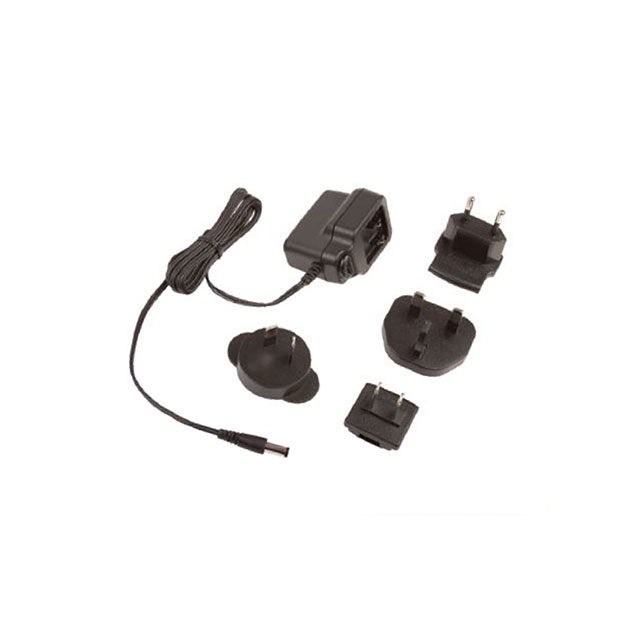

AC/DC WALL MOUNT ADAPTER 15V 23W

Part	Weight [custom]	Weight [custom]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	No Load Power Consumption	Applications	Input Type	Polarization	Efficiency	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]	Input Connector	Standard Number	Form	Voltage - Input [Max]	Voltage - Input [Min]	Region Utilized	Operating Temperature [Max]	Power (Watts)	Cord Length	Cord Length	Voltage - Output	Current - Output (Max) [Max]	Approval Agency
XP Power VER24US150-JA	0.177 lb	80.29 g	43 mm	42.7 mm	3.54 in	1.69 "	90 mm	1.68 "	75 mW	ITE (Commercial)	Multi-Blade (Included)	Positive Center	Level VI	2.1 mm	5.5 mm	Barrel Plug	12 mm	Multi-Blade	62368-1	Wall Mount	264 VAC	90 VAC	International	60 °C	23 Watts	1.5 m	59 in	15 V	1.5 A	CB
XP Power VER24US120-JA	0.177 lb	80.29 g	43 mm	42.7 mm	3.54 in	1.69 "	90 mm	1.68 "	75 mW	ITE (Commercial)	Multi-Blade (Included)	Positive Center	Level VI	2.1 mm	5.5 mm	Barrel Plug	12 mm	Multi-Blade	62368-1	Wall Mount	264 VAC	90 VAC	International	60 °C	24 W	1.5 m	59 in	12 V	2 A	CB
XP Power VER24US240-JA	0.177 lb	80.29 g	43 mm	42.7 mm	3.54 in	1.69 "	90 mm	1.68 "	75 mW	ITE (Commercial)	Multi-Blade (Included)	Positive Center	Level VI	2.1 mm	5.5 mm	Barrel Plug	12 mm	Multi-Blade	62368-1	Wall Mount	264 VAC	90 VAC	International	60 °C	24 W	1.5 m	59 in	24 V	1 A	CB
