SMR Series

Manufacturer: Chemi-Con

Catalog

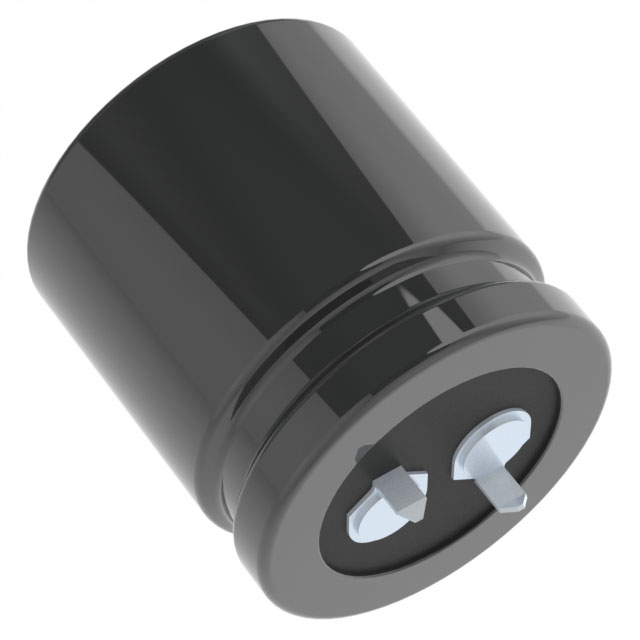

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 400V 390UF 20% TOL.

Part	Ripple Current @ Low Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Capacitance	Package / Case	Voltage - Rated	Tolerance	Polarization	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Size / Dimension	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Lifetime @ Temp.	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]
Chemi-Con ESMR401VSN391MR30S	2.32 A	85 °C	-25 °C	General Purpose	390 µF	Radial Can - Snap-In	400 V	20 %	Polar	3.3176 A	0.394 in	10 mm	30 mm	1.181 "	32.5 mm	1.28 in	Through Hole	2000 Hrs
Chemi-Con ESMR421VSN391MQ45S	2.47 A	85 °C	-25 °C	General Purpose	390 µF	Radial Can - Snap-In	420 V	20 %	Polar	3.5321 A	0.394 in	10 mm		1 "			Through Hole	2000 Hrs	47.5 mm	1.87 in	25.4 mm
Chemi-Con ESMR421VSN331MR30S	2.08 A	85 °C	-25 °C	General Purpose	330 µF	Radial Can - Snap-In	420 V	20 %	Polar	2.9744 A	0.394 in	10 mm	30 mm	1.181 "	32.5 mm	1.28 in	Through Hole	2000 Hrs
Chemi-Con ESMR451VSN331MA25S	2.1 A	85 °C	-25 °C	General Purpose	330 µF	Radial Can - Snap-In	450 V	20 %	Polar	3.003 A	0.394 in	10 mm		1.378 "			Through Hole	2000 Hrs	27.5 mm	1.083 in	35 mm
