RP154 Series

Manufacturer: Nisshinbo Micro Devices Inc.

Catalog

IC REG LINEAR 3V/3V DFN1216-8

Part	Current - Quiescent (Iq)	Supplier Device Package	Number of Regulators	PSRR	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Protection Features	Voltage - Output (Min/Fixed) [Max]	Voltage - Output (Min/Fixed) [Min]	Control Features	Voltage Dropout (Max)	Package / Case	Voltage - Output (Min/Fixed)
Nisshinbo Micro Devices Inc. RP154L025A-E2	75 µA	DFN1216-8	2	75 dB	5.25 V	Surface Mount	85 C	-40 ¯C	Positive	Over Current	3 V	3 V	Enable	0.29 V	8-XFDFN Exposed Pad
Nisshinbo Micro Devices Inc. RP154L013A-E2	75 µA	DFN1216-8	2	75 dB	5.25 V	Surface Mount	85 C	-40 ¯C	Positive	Over Current			Enable	0.29 V 0.3 V	8-XFDFN Exposed Pad	2.8 V 3.3 V
Nisshinbo Micro Devices Inc. RP154L053B-E2	75 µA	DFN1216-8	2	75 dB	5.25 V	Surface Mount	85 C	-40 ¯C	Positive	Over Current			Enable	0.29 V 0.3 V	8-XFDFN Exposed Pad	2.85 V 3.1 V

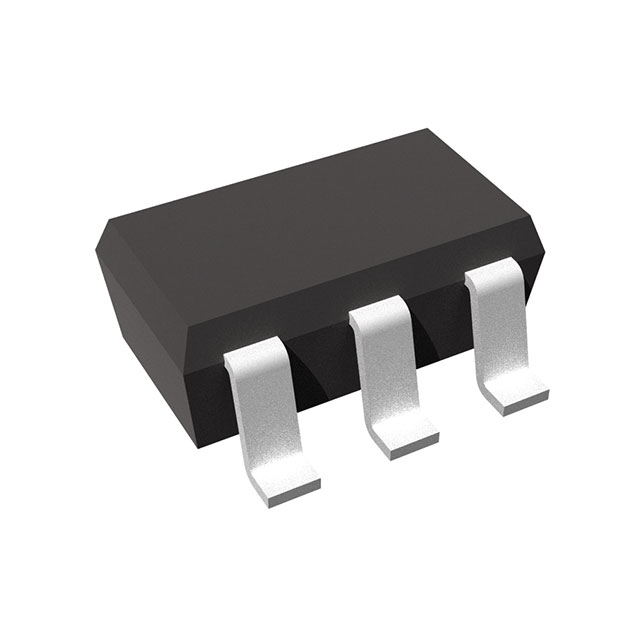

Nisshinbo Micro Devices Inc. RP154N022B-TR-FE	75 µA	SOT-23-6	2	75 dB	5.25 V	Surface Mount	85 C	-40 ¯C	Positive	Over Current			Enable	0.3 V 0.5 V	SOT-23-6	1.2 V 2.8 V
Nisshinbo Micro Devices Inc. RP154L031B-E2	75 µA	DFN1216-8	2	75 dB	5.25 V	Surface Mount	85 C	-40 ¯C	Positive	Over Current			Enable	0.3 V	8-XFDFN Exposed Pad	2.65 V 2.85 V
Nisshinbo Micro Devices Inc. RP154L058B-E2	75 µA	DFN1216-8	2	75 dB	5.25 V	Surface Mount	85 C	-40 ¯C	Positive	Over Current			Enable	0.29 V 0.59 V	8-XFDFN Exposed Pad	1 V 3.3 V
Nisshinbo Micro Devices Inc. RP154L029B-E2	75 µA	DFN1216-8	2	75 dB	5.25 V	Surface Mount	85 C	-40 ¯C	Positive	Over Current	1.5 V	1.5 V	Enable	0.44 V	8-XFDFN Exposed Pad
Nisshinbo Micro Devices Inc. RP154L054B-E2	75 µA	DFN1216-8	2	75 dB	5.25 V	Surface Mount	85 C	-40 ¯C	Positive	Over Current	1.2 V	1.2 V	Enable	0.5 V	8-XFDFN Exposed Pad
Nisshinbo Micro Devices Inc. RP154N010B-TR-FE	75 µA	SOT-23-6	2	75 dB	5.25 V	Surface Mount	85 C	-40 ¯C	Positive	Over Current			Enable	0.29 V 0.39 V	SOT-23-6	1.8 V 3 V
Nisshinbo Micro Devices Inc. RP154L011B-E2	75 µA	DFN1216-8	2	75 dB	5.25 V	Surface Mount	85 C	-40 ¯C	Positive	Over Current			Enable	0.39 V 0.44 V	8-XFDFN Exposed Pad	1.5 V 1.8 V
