087761 Series

Manufacturer: Molex

Catalog

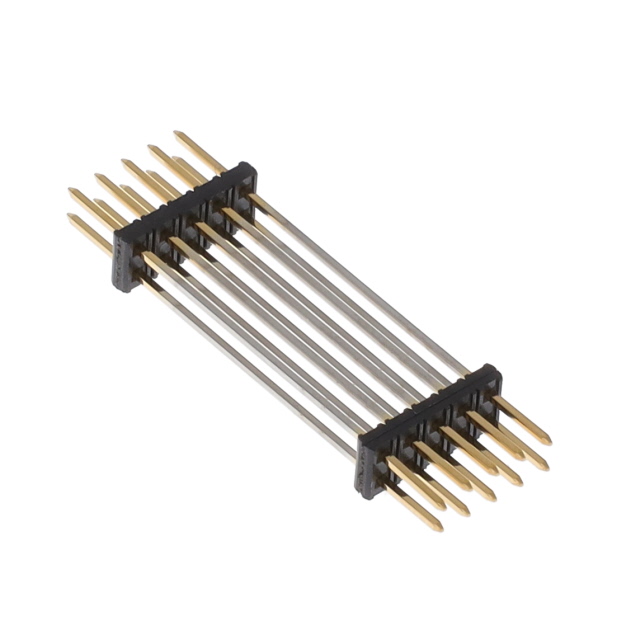

CONN HDR 10POS 0.079 STACK T/H

Part	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Termination	Contact Finish - Post (Mating)	Length - Stack Height [x]	Length - Stack Height [x]	Row Spacing	Row Spacing	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Pitch [x]	Pitch [x]	Number of Positions	Length - Overall Pin [x]	Length - Overall Pin [x]	Number of Rows	Color	Mounting Type	Length - Tail	Length - Tail	Length - Stack Height [z]	Length - Stack Height [z]	Length - Tail [x]	Length - Tail [x]	Number of Positions	Length - Overall Pin	Length - Overall Pin
Molex 0877610001	0.38 Ám	15 Áin	Solder	Gold	22.86 mm	0.9 in	2 mm	0.079 in	0.2 in	5.08 mm	0.079 in	2 mm	10	1.3 in	33.02 mm	2	Black	Through Hole	0.2 in	5.08 mm
Molex 0877610006	0.38 Ám	15 Áin	Solder	Gold	8.179 mm	0.322 in	2 mm	0.079 in	0.215 in	5.45 mm	0.079 in	2 mm	4	0.752 in	19.1 mm	2	Black	Through Hole	0.215 in	5.45 mm
Molex 0877615022	0.38 Ám	15 Áin	Solder	Gold			2 mm	0.079 in	0.157 in	4 mm	0.079 in	2 mm	50	0.48 in	12.2 mm	2	Black	Through Hole			5.74 mm	0.226 in	2.5 mm	0.098 in
Molex 0877611601	2.54 Ám	100 Áin	Solder	Tin			2 mm	0.079 in			0.079 in	2 mm				2	Black	Through Hole			4 mm	0.157 in			16
Molex 0877610023	0.76 µm	30 µin	Solder	Gold	16 mm	0.63 in	2 mm	0.079 in	0.354 in	9 mm	0.079 in	2 mm	40			2	Black	Through Hole					4.216 mm	0.166 in		1.15 "	29.21 mm
Molex 0877610801	0.38 Ám	15 Áin	Solder	Gold	15.5 mm	0.61 in	2 mm	0.079 in	0.157 in	4 mm	0.079 in	2 mm	8	0.906 in	23 mm	2	Black	Through Hole	0.138 in	3.5 mm
Molex 0877615021	0.38 Ám	15 Áin	Solder	Gold	8.7 mm	0.343 in	2 mm	0.079 in	0.157 in	4 mm	0.079 in	2 mm	50			2	Black	Through Hole					2.5 mm	0.098 in		0.598 in	15.2 mm
