RR3130C Series
Manufacturer: E-Switch
Beta
⌘K

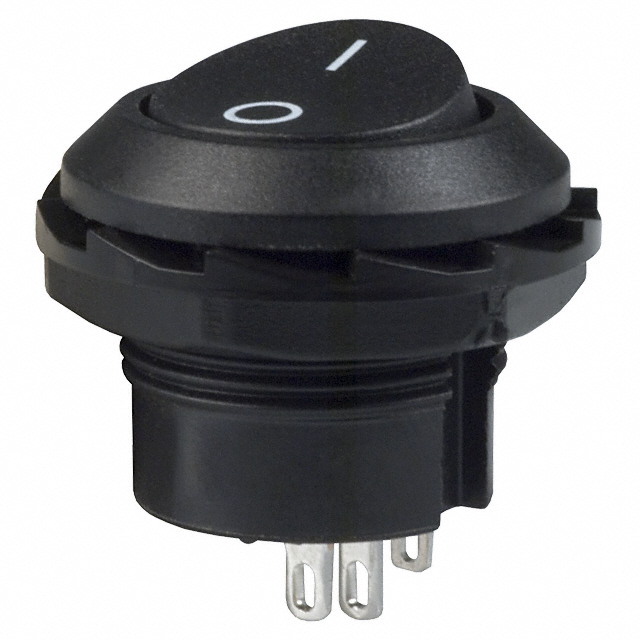

SWITCH ROCKER SPDT 10A 125V
| Part | Mechanical Life | Electrical Life | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Termination Style | Actuator Marking | Actuator Type | Circuit | Color - Actuator/Cap | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 20000 Cycles | 6000 Cycles | 125 V | 18.2 mm | On-On | 0 °C | 65 °C | Panel Mount Threaded Body with Nut | Solder Lug | No Marking | Round | SPDT | Black | 10 A |
 E-Switch | 20000 Cycles | 6000 Cycles | 125 V | 18.2 mm | On-On | 0 °C | 65 °C | Panel Mount Threaded Body with Nut | Solder Lug | O - | Round | SPDT | Black | 10 A |
