039960 Series
Manufacturer: Molex
Beta
⌘K

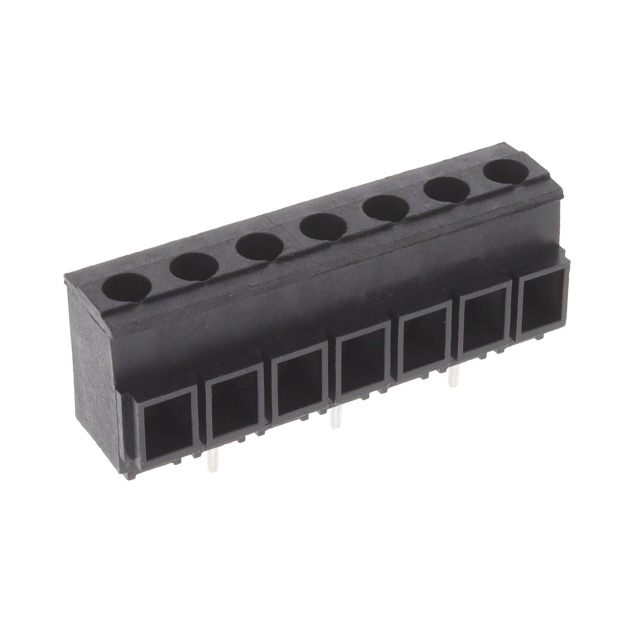

TERM BLK 7POS SIDE ENTRY 8MM PCB
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Wire Termination | Housing Material | Screw Thread | Current | Color | Torque - Screw | Torque - Screw | Positions Per Level | Number of Levels | Mounting Type | Screw Material - Plating | Voltage | Contact Material - Plating [custom] | Clamp Material - Plating | Mating Orientation | Features | Wire Gauge | Contact Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 22 AWG | 10 AWG | -40 °C | 130 °C | Screw - Rising Cage Clamp | Thermoplastic | M3.5 | 30 A | Black | 0.79 Nm | 7 Lb-In | 7 | 1 | Through Hole | Bronze Tin Plated | 600 V | Brass - Tin Plated | Brass - Nickel Plated | Horizontal with Board | |||
Molex | 22 AWG | 10 AWG | -40 °C | 130 °C | Screw - Rising Cage Clamp | Thermoplastic | M3.5 | 30 A | Black | 0.79 Nm | 7 Lb-In | 6 | 1 | Through Hole | Bronze Tin Plated | 600 V | Brass - Tin Plated | Brass - Nickel Plated | Horizontal with Board | |||
Molex | 22 AWG | 10 AWG | -40 °C | 130 °C | Screw - Rising Cage Clamp | Thermoplastic | M3.5 | 30 A | Black | 0.79 Nm | 7 Lb-In | 4 | 1 | Through Hole | Bronze Tin Plated | 600 V | Brass - Tin Plated | Brass - Nickel Plated | Horizontal with Board | |||
 Molex | Screw | Polybutylene Terephthalate (PBT) Polyester | M3.5 | 30 A | Black | 8 | 1 | Through Hole | Bronze Tin Plated | 300 V | Brass - Nickel Plated | Vertical with Board | Positions Stamped | 10 AWG | ||||||||
Molex | Screw - Rising Cage Clamp | Polybutylene Terephthalate (PBT) | M3.5 | 30 A | Black | 10 | 1 | Through Hole | Stainless Steel | 600 V | Brass - Nickel Plated | Horizontal with Board | 10 AWG | Copper Alloy - Tin Plated |
