PCAL6408 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
PCAL6408A - LOW-VOLTAGE TRANSLATING, 8-BIT I²C-BUS/SMBUS I/O EXPANDER QFN 16-PIN
| Part | Voltage - Supply [Max] | Voltage - Supply [Min] | Features | Operating Temperature [Max] | Operating Temperature [Min] | Interface | Current - Output Source/Sink [custom] | Current - Output Source/Sink [custom] | Output Type | Supplier Device Package | Number of I/O | Package / Case | Clock Frequency | Mounting Type | Interrupt Output | Package / Case [x] | Package / Case [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

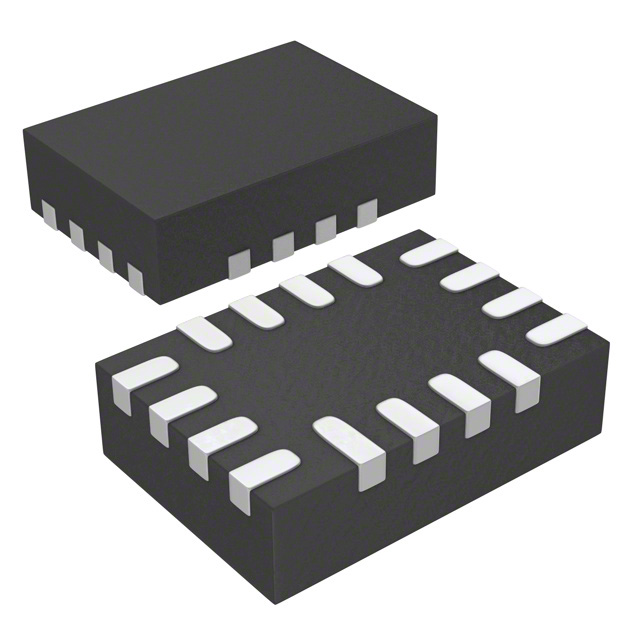

 Freescale Semiconductor - NXP | 5.5 V | 1.65 V | POR | 85 °C | -40 °C | I2C SMBus | 10 mA | 25 mA | Open Drain Push-Pull | 16-XQFN (1.8x2.6) | 8 | 16-XFQFN | 400 kHz | Surface Mount | |||
 Freescale Semiconductor - NXP | 5.5 V | 1.65 V | POR | 85 °C | -40 °C | I2C SMBus | 10 mA | 25 mA | Open Drain Push-Pull | 16-TSSOP | 8 | 16-TSSOP | 400 kHz | Surface Mount | 0.173 in | 4.4 mm |
