887-011 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 11POS 0.156

Part	Material - Insulation	Termination Rows	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Type	Card Type	Number of Rows	Number of Positions/Bay/Row	Read Out	Card Thickness [Max]	Card Thickness [Min]	Gender	Mounting Type	Contact Material	Termination	Color	Pitch	Pitch	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Operating Temperature [Max]	Operating Temperature [Min]
EDAC Inc. 887-011-523-104	Polyphenylene Sulfide (PPS)	1	Gold	0.25 Ám	10 Áin	11	Cantilever	Non Specified - Single Edge	1	11	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Copper Alloy	Solder	Black	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	125 °C	-40 C
EDAC Inc. 887-011-524-102	Polyphenylene Sulfide (PPS)	1	Gold	0.25 Ám	10 Áin	11	Cantilever	Non Specified - Single Edge	1	11	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Copper Alloy	Solder	Black	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	125 °C	-40 C
EDAC Inc. 887-011-520-101	Polyphenylene Sulfide (PPS)	1	Gold	0.25 Ám	10 Áin	11	Cantilever	Non Specified - Single Edge	1	11	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Copper Alloy	Solder	Black	3.96 mm	0.156 in				125 °C	-40 C

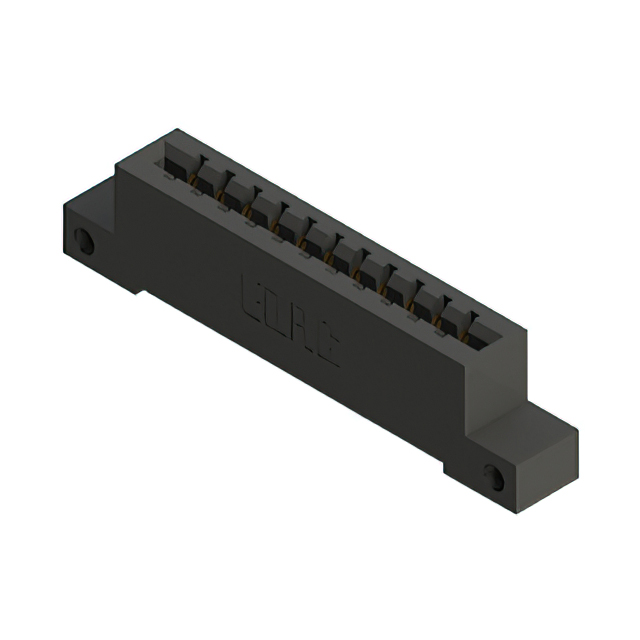

EDAC Inc. 887-011-521-112	Polyphenylene Sulfide (PPS)	1	Gold	0.25 Ám	10 Áin	11	Cantilever	Non Specified - Single Edge	1	11	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Copper Alloy	Solder	Black	3.96 mm	0.156 in	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	125 °C	-40 C

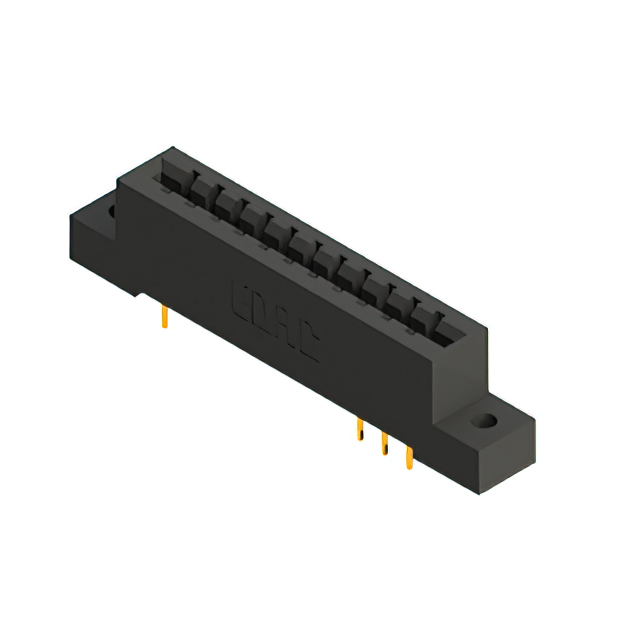

EDAC Inc. 887-011-558-102	Polyphenylene Sulfide (PPS)	1	Gold	0.25 Ám	10 Áin	11	Cantilever	Non Specified - Single Edge	1	11	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Right Angle Through Hole	Copper Alloy	Solder	Black	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	125 °C	-40 C
EDAC Inc. 887-011-523-108	Polyphenylene Sulfide (PPS)	1	Gold	0.25 Ám	10 Áin	11	Cantilever	Non Specified - Single Edge	1	11	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Copper Alloy	Solder	Black	3.96 mm	0.156 in	4-40 Flush Mount Threaded Insert Top Opening			125 °C	-40 C
EDAC Inc. 887-011-524-608	Polyphenylene Sulfide (PPS)	1	Gold	0.25 Ám	10 Áin	11	Cantilever	Non Specified - Single Edge	1	11	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Copper Alloy	Solder	Black	3.96 mm	0.156 in	4-40 Threaded Insert Top Mount Opening			125 °C	-40 C
EDAC Inc. 887-011-523-112	Polyphenylene Sulfide (PPS)	1	Gold	0.25 Ám	10 Áin	11	Cantilever	Non Specified - Single Edge	1	11	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Copper Alloy	Solder	Black	3.96 mm	0.156 in	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	125 °C	-40 C
EDAC Inc. 887-011-523-103	Polyphenylene Sulfide (PPS)	1	Gold	0.25 Ám	10 Áin	11	Cantilever	Non Specified - Single Edge	1	11	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Copper Alloy	Solder	Black	3.96 mm	0.156 in	Floating Bobbin Flush Mount	0.116 "	2.95 mm	125 °C	-40 C
EDAC Inc. 887-011-523-602	Polyphenylene Sulfide (PPS)	1	Gold	0.25 Ám	10 Áin	11	Cantilever	Non Specified - Single Edge	1	11	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	Through Hole	Copper Alloy	Solder	Black	3.96 mm	0.156 in		0.128 "	3.25 mm	125 °C	-40 C
