NCV7381C Series

FlexRay® Transceiver, Clamp 30

Catalog

FlexRay® Transceiver, Clamp 30

Part	Primary Attributes	Secondary Attributes	Utilized IC / Part	Supplied Contents	Function	Type	Embedded	Duplex	Qualification	Data Rate	Grade	Package / Case	Package / Case [custom]	Package / Case [custom]	Protocol	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Receiver Hysteresis

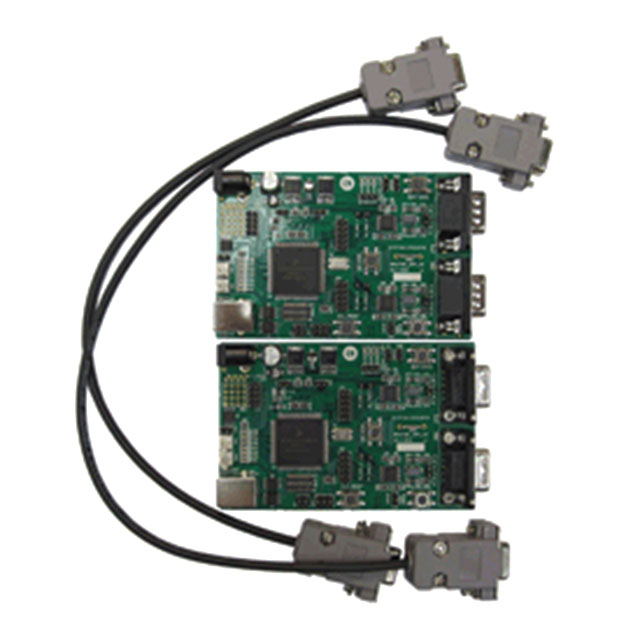

ON Semiconductor NCV7381GEVK	1-Channel (Single)	On-Board LEDs	NCV7381	Board(s) Cable(s)	Flexray	Interface	16-Bit MCU
ON Semiconductor NCV7381DP0R2G						Transceiver		Half	AEC-Q100	10 Mbps	Automotive	16-SSOP	0.209 in	5.3 mm	FlexRay	16-SSOP	125 °C	-40 °C	Surface Mount	4.75 V	5.25 V
ON Semiconductor NCV7381DP0G						Transceiver		Half	AEC-Q100	10 Mbps	Automotive	16-SSOP	0.209 in	5.3 mm	FlexRay	16-SSOP	125 °C	-40 °C	Surface Mount	4.75 V	5.25 V
ON Semiconductor NCV7381CDP0R2G						Transceiver		Half	AEC-Q100	10 Mbps	Automotive	16-SSOP	0.209 in	5.3 mm	FlexRay	16-SSOP	150 °C	-40 °C	Surface Mount	4.75 V	5.25 V	140 mV

Catalog

FlexRay® Transceiver, Clamp 30

Key Features

• Compliant with FlexRay Electrical Physical Layer SpecificationRev 3.0.1

• FlexRay Transmitter and Receiver in Normal-power Modes forCommunication up to 10 Mbit/s

• Support of 60 ns Bit Time

• FlexRay Low-power Mode Receiver for Remote Wakeup Detection

• Excellent Electromagnetic Susceptibility (EMS) Level over FullFrequency Range. Very Low Electromagnetic Emissions (EME)

• Bus Pins Protected against >10 kV System ESD Pulses

• Safe Behavior under Missing Supply or No Supply Conditions

• Interface Pins for a Protocol Controller and a Host(TxD, RxD, TxEN, RxEN, STBN, BGE, EN, ERRN)

• INH Output for Control of External Regulators

• Local Wakeup Pin WAKE

• TxEN Time-out

• BGE Feedback

• Supply Pins VBAT, VCC, VIO with Independent Voltage Ramp Up:- VBAT Supply Parametrical Range from 5.5 V to 50 V- VCC Supply Parametrical Range from 4.75 V to 5.25 V- VIO Supply Parametrical Range from 2.3 V to 5.25 V

• Compatible with 14 V and 28 V Systems

• Operating Ambient Temperature -40°C to +150°C (TAMB_Class0)

• Junction Temperature Monitoring with Two Levels

• Increased Operating Junction Temperature

• FlexRay Functional Classes- Bus Driver Voltage Regulator Control- Bus Driver Bus Guardian Interface- Bus Driver Logic Level Adaptation- Bus Driver Remote Wakeup

• Automotive Qualification According to AECQ100

Description

NCV7381C is a high−temperature single-channel FlexRay transceiver compliant with the FlexRay Electrical Physical Layer Specification Rev. 3.0.1, capable of communicating at speeds of up to 10 Mbit/s. It provides differential transmit and receive capability between a wired FlexRay communication medium on one side and a protocol controller and a host on the other side.NCV7381C mode control functionality is optimized for nodes permanently connected to car battery.It offers excellent EMC and ESD performance.
