PT08E Series

Manufacturer: Amphenol Aerospace Operations

Catalog

PT 6C 6#20 SKT PLUG

Part	Contact Material	Applications	Backshell Material, Plating	Insert Material	Operating Temperature (Max)	Operating Temperature (Min)	Shell Finish	Orientation	Mounting Type	Fastening Type	Shielding	Ingress Protection	Number of Positions	Qualification	Shell Material	Termination	Color	Shell Size - Insert Length	Shell Size - Insert Width	Contact Finish - Mating	Primary Material	Connector Type	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Features	Voltage Rating	Cable Opening
Amphenol Aerospace Operations PT08E10-6SW-SR	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Aluminum Olive Drab Cadmium	Neoprene	125 °C	-55 °C	Cadmium Olive Drab Chromate	W	Free Hanging (In-Line) Right Angle	Bayonet Lock	Unshielded	Environment Resistant	6	MIL-DTL-26482 Series I	Aluminum	Solder Cup	Olive Drab	10 mm	6 mm	Gold	Metal	Female Sockets Plug
Amphenol Aerospace Operations PT08E-22-36S(152)	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military		Neoprene	125 °C	-55 °C		N (Normal)	Free Hanging (In-Line) Right Angle	Bayonet Lock	Unshielded	Environment Sealed	36	MIL-DTL-26482 Series I		Solder Cup						Female Sockets Plug	22	36	Coupling Nut
Amphenol Aerospace Operations PT08E-12-3SY(SR)	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military		Neoprene	125 °C	-55 °C	Cadmium Olive Drab Chromate	Y	Free Hanging (In-Line) Right Angle	Bayonet Lock	Unshielded	Environment Sealed	3	MIL-DTL-26482 Series I	Aluminum	Solder Cup	Olive Drab	12 mm	3 mm	Gold	Metal	Female Sockets Plug			Cable Clamp Coupling Nut Strain Relief

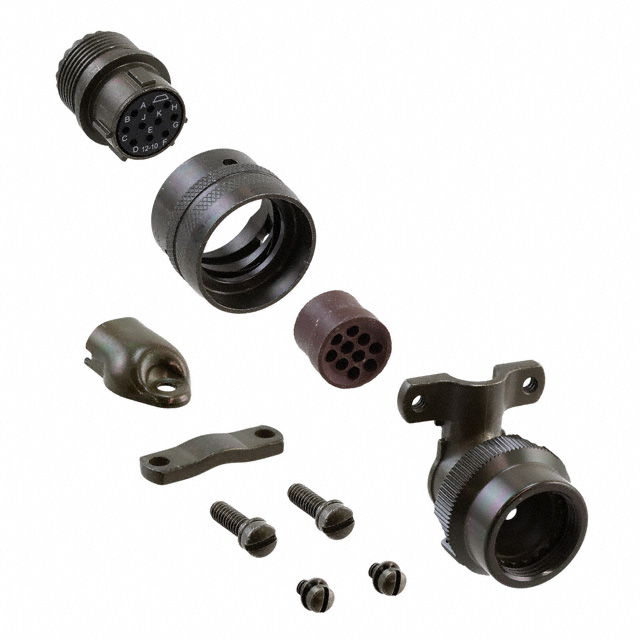

Amphenol Aerospace Operations PT08E-12-10S(SR)	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	Neoprene	125 °C	-55 °C	Cadmium Olive Drab Chromate	N (Normal)	Free Hanging (In-Line) Right Angle	Bayonet Lock	Unshielded	Environment Sealed	10	MIL-DTL-26482 Series I	Aluminum	Solder Cup	Olive Drab	12 mm	10 mm	Gold	Metal	Female Sockets Plug			Cable Clamp Coupling Nut Strain Relief
Amphenol Aerospace Operations PT08E8-2S-SR	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	Neoprene	125 °C	-55 °C	Cadmium Olive Drab Chromate	N (Normal)	Free Hanging (In-Line) Right Angle	Bayonet Lock	Unshielded	Environment Resistant	2	MIL-DTL-26482 Series I	Aluminum	Solder Cup	Olive Drab	8 mm	2 mm	Gold	Metal	Female Sockets Plug
Amphenol Aerospace Operations PT08E10-2P-SR	Copper Alloy	Aerospace Communication Systems Industrial Instrumentation Mass Transit	Aluminum Olive Drab Cadmium	Neoprene	125 °C	-55 °C	Cadmium Olive Drab Chromate	N (Normal)	Free Hanging (In-Line) Right Angle	Bayonet Lock	Unshielded	Environment Resistant	2	MIL-DTL-26482 Series I	Aluminum	Solder Cup	Olive Drab	10 mm	2 mm	Gold	Metal	Male Pins Plug

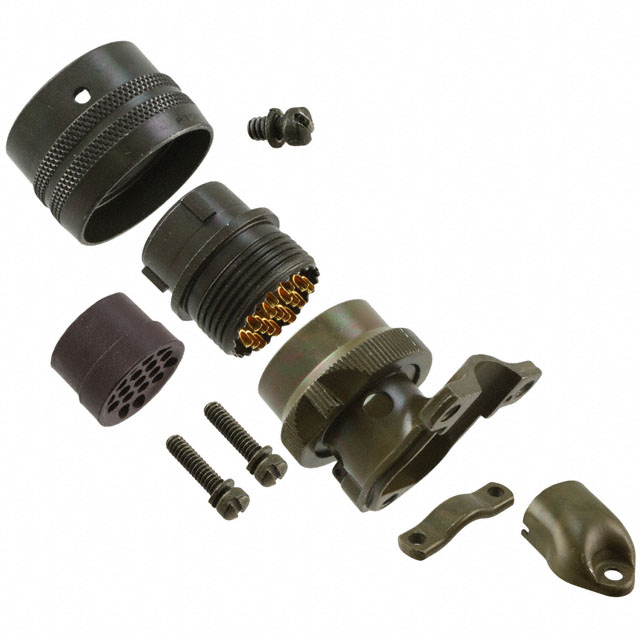

Amphenol Aerospace Operations PT08E-14-18S(SR)	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	Neoprene	125 °C	-55 °C	Cadmium Olive Drab Chromate	N (Normal)	Free Hanging (In-Line) Right Angle	Bayonet Lock	Unshielded	Environment Sealed	18	MIL-DTL-26482 Series I	Aluminum	Solder Cup	Olive Drab			Gold	Metal	Female Sockets Plug	14 S	18	Cable Clamp Coupling Nut Strain Relief

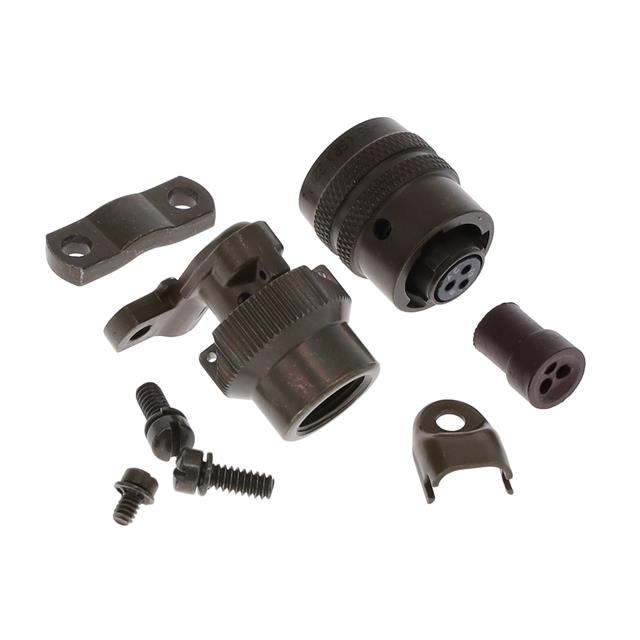

Amphenol Aerospace Operations PT08E8-3S-SR	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	Neoprene	125 °C	-55 °C	Cadmium Olive Drab Chromate	N (Normal)	Free Hanging (In-Line) Right Angle	Bayonet Lock	Unshielded	Environment Resistant	3	MIL-DTL-26482 Series I	Aluminum	Solder Cup	Olive Drab	8 mm	3 mm	Gold	Metal	Female Sockets Plug			Backshell Cable Clamp Coupling Nut Strain Relief	600 V	0.796 in

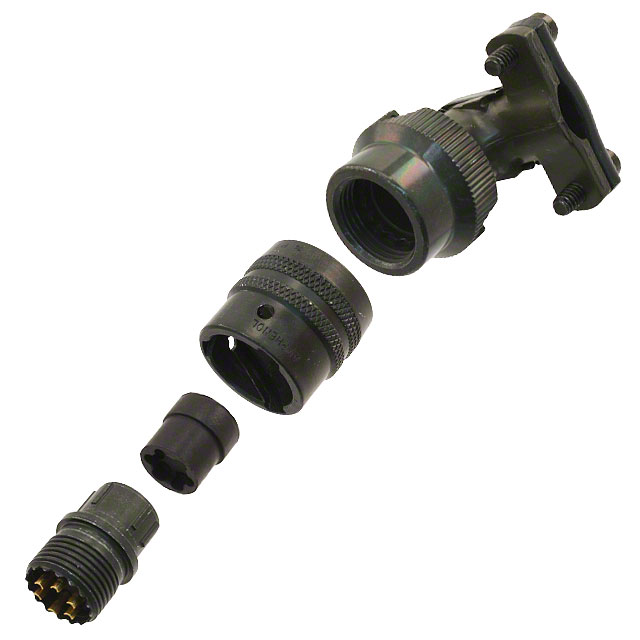

Amphenol Aerospace Operations PT08E-10-6P(SR)	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	Neoprene	125 °C	-55 °C	Cadmium Olive Drab Chromate	N (Normal)	Free Hanging (In-Line) Right Angle	Bayonet Lock	Unshielded	Environment Sealed	6	MIL-DTL-26482 Series I	Aluminum	Solder Cup	Olive Drab	10 mm	6 mm	Gold	Metal	Male Pins Plug			Cable Clamp Coupling Nut Strain Relief
Amphenol Aerospace Operations PT08E-24-61P(SR)	Copper Alloy	Aerospace Industrial Instrumentation Mass Transit Military	Aluminum Olive Drab Cadmium	Neoprene	125 °C	-55 °C	Cadmium Olive Drab Chromate	N (Normal)	Free Hanging (In-Line) Right Angle	Bayonet Lock	Unshielded	Environment Sealed	61	MIL-DTL-26482 Series I	Aluminum	Solder Cup	Olive Drab			Gold	Metal	Male Pins Plug	24	61	Cable Clamp Coupling Nut Strain Relief
