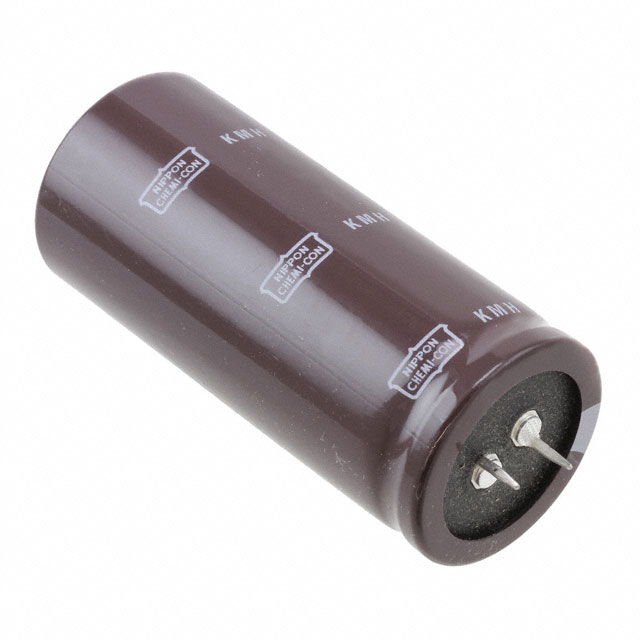

KMH Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SNAP IN 8200UF 63 VOLT

Part	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	ESR (Equivalent Series Resistance)	Ripple Current @ High Frequency	Voltage - Rated	Package / Case	Polarization	Applications	Ripple Current @ Low Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Capacitance	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKMH630VQT822MB30T	2000 Hrs	1.575 in	40 mm	Through Hole	28 mOhm	3.72 A	63 V	Radial Can - 5 Lead	Polar	General Purpose	3.1 A	-40 C	105 ░C	25 mm	0.984 in	20 %	1.26 in	32 mm
Chemi-Con EKMH251VNN102MA40C	2000 Hrs	1.378 "	35 mm	Through Hole	249 mOhm	3.45 A	250 V	Radial Can - Snap-In	Polar	General Purpose	2.3 A	-25 °C	105 ░C	10 mm	0.394 in	20 %	1.654 in	42 mm	1000 µF
Chemi-Con EKMH160VNN393MA40T	2000 Hrs	1.378 "	35 mm	Through Hole	17 mOhm	5.1732 A	16 V	Radial Can - Snap-In	Polar	General Purpose	4.79 A	-40 C	105 ░C	10 mm	0.394 in	20 %	1.654 in	42 mm	39000 µF
Chemi-Con EKMH6R3VSN563MA35S	2000 Hrs	1.378 "	35 mm	Through Hole	18 mOhm	4.4496 A	6.3 VDC	Radial Can - Snap-In	Polar	General Purpose	4.12 A	-40 C	105 ░C	10 mm	0.394 in	20 %	1.457 in		56000 µF	37 mm
Chemi-Con EKMH350VNN153MA35S	2000 Hrs	1.378 "	35 mm	Through Hole	28 mOhm	3.9636 A	35 V	Radial Can - Snap-In	Polar	General Purpose	3.67 A	-40 C	105 ░C	10 mm	0.394 in	20 %	1.457 in			37 mm
Chemi-Con EKMH101VQT103MB80T	2000 Hrs	1.575 in	40 mm	Through Hole	25 mOhm	7.428 A	100 V	Radial Can - 5 Lead	Polar	General Purpose	6.19 A	-40 C	105 ░C	25 mm	0.984 in	20 %			10000 µF		3.228 in	82 mm
Chemi-Con EKMH401VNN471MA45W	2000 Hrs	1.378 "	35 mm	Through Hole	529 mOhm	2.4882 A	400 V	Radial Can - Snap-In	Polar	General Purpose	1.74 A	-25 °C	105 ░C	10 mm	0.394 in	20 %			470 µF		47 mm		1.85 in
Chemi-Con EKMH401VNN820MQ25S	2000 Hrs	1 "	25.4 mm	Through Hole	3.032 Ohm		400 V	Radial Can - Snap-In	Polar	General Purpose	640 mA	-25 °C	105 ░C	10 mm	0.394 in	20 %			0.082 mF		27 mm		1.063 in
Chemi-Con EKMH800VNN103MA63T	2000 Hrs	1.378 "	35 mm	Through Hole			80 V	Radial Can - Snap-In	Polar	General Purpose		-40 C	105 ░C	10 mm	0.394 in	20 %			10000 µF		65 mm		2.559 in
Chemi-Con EKMH250VNN473MA63T	2000 Hrs	1.378 "	35 mm	Through Hole	12 mOhm	6.5988 A	25 VDC	Radial Can - Snap-In	Polar	General Purpose	6.11 A	-40 C	105 ░C	10 mm	0.394 in	20 %			47 mF		65 mm		2.559 in
