MAX883 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

IC REG LIN POS ADJ 200MA 8-SOIC

Part	Mounting Type	Supplier Device Package	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed) [Min]	Voltage - Output (Max) [Max]	Control Features	Number of Regulators	Protection Features	Package / Case	Package / Case	Package / Case	Current - Quiescent (Iq)	Output Type	Output Configuration	Voltage Dropout (Max)	Current - Supply (Max) [Max]	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]
Analog Devices Inc./Maxim Integrated MAX883ESA	Surface Mount	8-SOIC	11.5 V	5 V	1.25 V	11 V	Enable Low Battery Detection	1	Over Current Over Temperature Reverse Polarity	0.154 in	8-SOIC	3.9 mm	15 µA	Adjustable (Fixed)	Positive	0.44 V	25 µA	0.2 A	85 °C	-40 C
Analog Devices Inc./Maxim Integrated MAX883MPA/PR	Through Hole	8-PDIP	11.5 V	5 V	1.25 V	11 V	Enable Low Battery Detection	1	Over Current Over Temperature Reverse Polarity		8-DIP (0.300" 7.62mm)		30 µA	Adjustable (Fixed)	Positive	0.44 V	40 µA	0.2 A	125 °C	-55 C

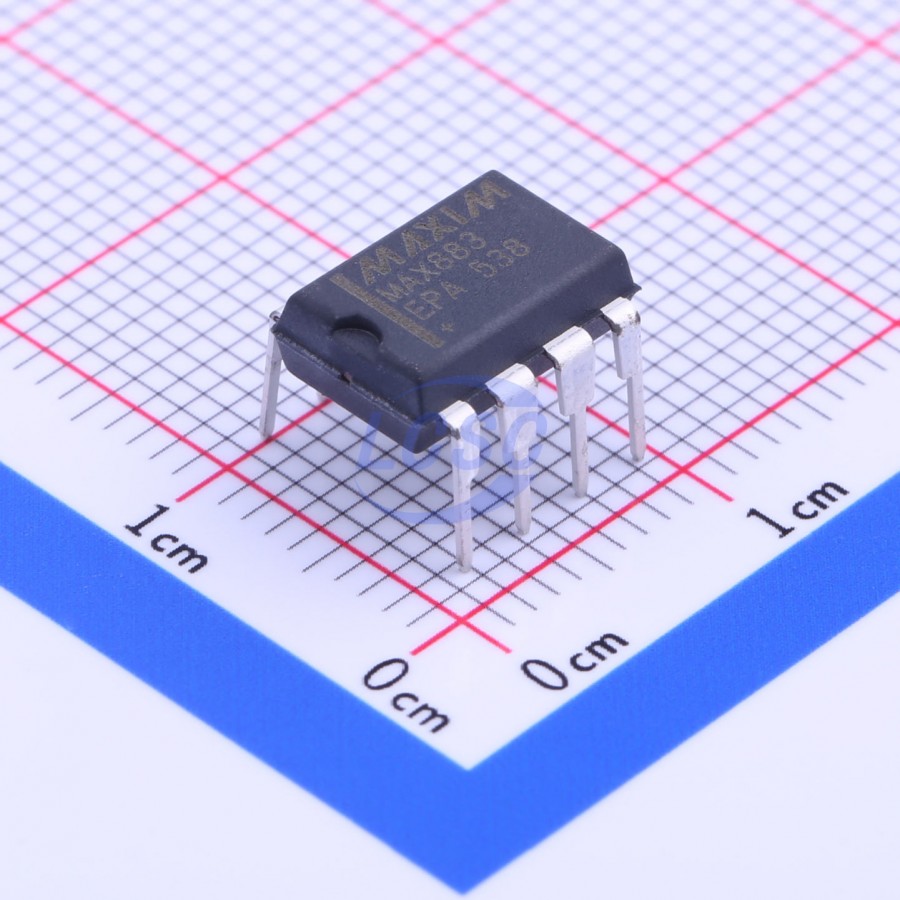

Analog Devices Inc./Maxim Integrated MAX883EPA+	Through Hole	8-PDIP	11.5 V	5 V	1.25 V	11 V	Enable Low Battery Detection	1	Over Current Over Temperature Reverse Polarity		8-DIP (0.300" 7.62mm)		15 µA	Adjustable (Fixed)	Positive	0.44 V	25 µA	0.2 A	85 °C	-40 C
Analog Devices Inc./Maxim Integrated MAX883CPA	Through Hole	8-PDIP	11.5 V	5 V	1.25 V	11 V	Enable Low Battery Detection	1	Over Current Over Temperature Reverse Polarity		8-DIP (0.300" 7.62mm)		15 µA	Adjustable (Fixed)	Positive	0.44 V	25 µA	0.2 A	70 °C	0 °C
Analog Devices Inc./Maxim Integrated MAX883ESA+T	Surface Mount	8-SOIC	11.5 V	5 V	1.25 V	11 V	Enable Low Battery Detection	1	Over Current Over Temperature Reverse Polarity	0.154 in	8-SOIC	3.9 mm	15 µA	Adjustable (Fixed)	Positive	0.44 V	25 µA	0.2 A	85 °C	-40 C
Analog Devices Inc./Maxim Integrated MAX883CSA+	Surface Mount	8-SOIC	11.5 V	5 V	1.25 V	11 V	Enable Low Battery Detection	1	Over Current Over Temperature Reverse Polarity	0.154 in	8-SOIC	3.9 mm	15 µA	Adjustable (Fixed)	Positive	0.44 V	25 µA	0.2 A	70 °C	0 °C
Analog Devices Inc./Maxim Integrated MAX883CPA+	Through Hole	8-PDIP	11.5 V	5 V	1.25 V	11 V	Enable Low Battery Detection	1	Over Current Over Temperature Reverse Polarity		8-DIP (0.300" 7.62mm)		15 µA	Adjustable (Fixed)	Positive	0.44 V	25 µA	0.2 A	70 °C	0 °C
Analog Devices Inc./Maxim Integrated MAX883ESA+	Surface Mount	8-SOIC	11.5 V	5 V	1.25 V	11 V	Enable Low Battery Detection	1	Over Current Over Temperature Reverse Polarity	0.154 in	8-SOIC	3.9 mm	15 µA	Adjustable (Fixed)	Positive	0.44 V	25 µA	0.2 A	85 °C	-40 C
Analog Devices Inc./Maxim Integrated MAX883CSA	Surface Mount	8-SOIC	11.5 V	5 V	1.25 V	11 V	Enable Low Battery Detection	1	Over Current Over Temperature Reverse Polarity	0.154 in	8-SOIC	3.9 mm	15 µA	Adjustable (Fixed)	Positive	0.44 V	25 µA	0.2 A	70 °C	0 °C
Analog Devices Inc./Maxim Integrated MAX883ESA-T	Surface Mount	8-SOIC	11.5 V	5 V	1.25 V	11 V	Enable Low Battery Detection	1	Over Current Over Temperature Reverse Polarity	0.154 in	8-SOIC	3.9 mm	15 µA	Adjustable (Fixed)	Positive	0.44 V	25 µA	0.2 A	85 °C	-40 C
