FS200R07 Series

Manufacturer: INFINEON

Catalog

THE FS200R07A5E3_S6 IS AN AUTOMOTIVE QUALIFIED SIXPACK IGBT3 - E3 MODULE IN A HYBRIDPACK™ LIGHT HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 650 V AND 200 A.

Part	Mounting Type	Power - Max [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	IGBT Type	Input	Input Capacitance (Cies) @ Vce	Configuration	Package / Case	Supplier Device Package	Vce(on) (Max) @ Vge, Ic [Max]	Current - Collector Cutoff (Max) [Max]
INFINEON FS200R07A5E3S6BPSA1	Chassis Mount	630 W	705 V	1.7 V	200 A	-40 °C	150 °C	Trench	Standard	13 nF	Full Bridge Inverter	Module
INFINEON FS200R07A1E3BOSA1	Chassis Mount	790 W	650 V		250 A	-40 °C	150 °C		Standard	13 nF	Three Phase Inverter	Module	Module	1.9 V	1 mA
INFINEON FS200R07N3E4RBOSA1	Chassis Mount	600 W	650 V		200 A	-40 C	150 °C	Trench Field Stop	Standard	13 nF	Three Phase Inverter	Module	Module	1.95 V	1 mA
INFINEON FS200R07PE4BOSA1	Chassis Mount	600 W	650 V		200 A	-40 °C	150 °C	Trench Field Stop	Standard	12 nF	Three Phase Inverter	Module	Module	1.95 V	1 mA

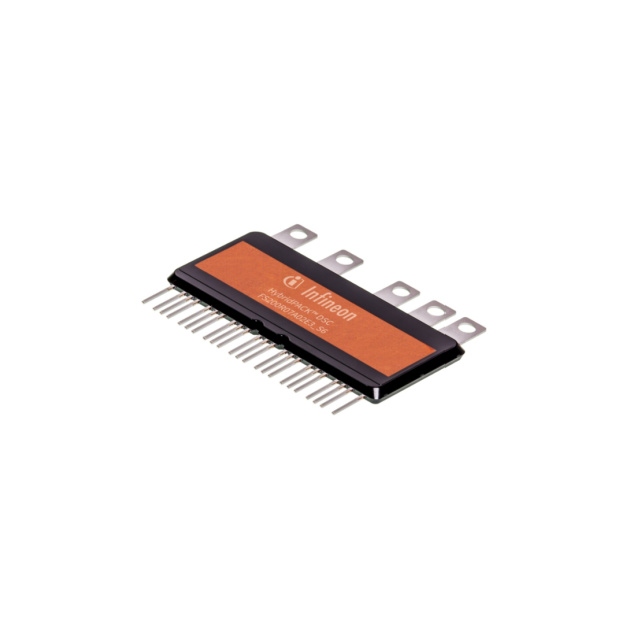

INFINEON FS200R07A02E3S6BKSA2	Chassis Mount	694 W	700 V	2.25 V	200 A	-40 °C	150 °C	Trench Field Stop	Standard	13.5 nF	Three Phase	Module	PG-MDIP-28
