IPSLD Series

Catalog

CONN PLUG FMALE 1POS SCREW

Part	Applications	Ingress Protection	Voltage Rating	Termination	Connector Type	Features	Contact Finish - Mating	Color	Fastening Type	Material Flammability Rating	Current Rating (Amps)	Number of Positions	Primary Material	Mounting Type
PEI-Genesis IPSLD-N-BL-S120-M40A-UL	Industrial	IP67 - Dust Tight Waterproof	1000 VAC	Screw	Plug Female Sockets	Cable Clamp Strain Relief	Silver	Blue	Bayonet Lock	UL94 V-0	800 A	1	Plastic	Free Hanging (In-Line)
PEI-Genesis IPSLD-2-BK-S120-M40A-UL	Industrial	IP67 - Dust Tight Waterproof	1000 VAC	Screw	Plug Female Sockets	Cable Clamp Strain Relief	Silver	Black	Bayonet Lock	UL94 V-0	800 A	1	Plastic	Free Hanging (In-Line)
PEI-Genesis IPSLD-1-BK-S120-M40A-UL	Industrial	IP67 - Dust Tight Waterproof	1000 VAC	Screw	Plug Female Sockets	Cable Clamp Strain Relief	Silver	Black	Bayonet Lock	UL94 V-0	800 A	1	Plastic	Free Hanging (In-Line)
PEI-Genesis IPSLD-2-R-S120-M40A-UL	Industrial	IP67 - Dust Tight Waterproof	1000 VAC	Screw	Plug Female Sockets	Cable Clamp Strain Relief	Silver	Red	Bayonet Lock	UL94 V-0	800 A	1	Plastic	Free Hanging (In-Line)

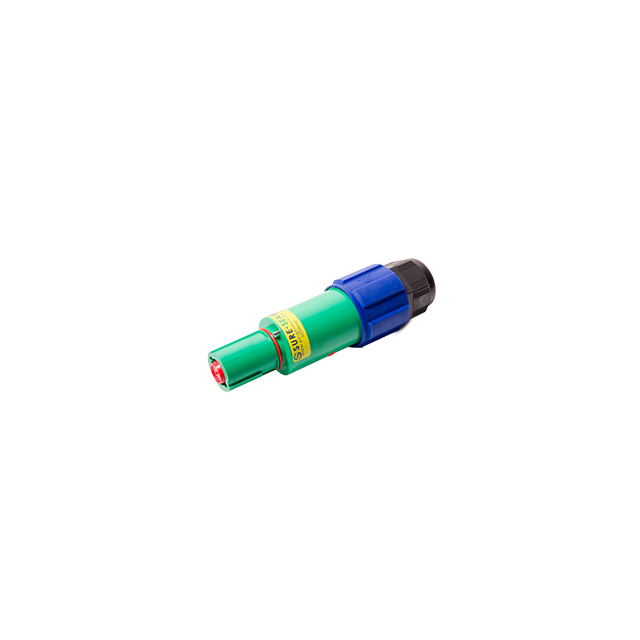

PEI-Genesis IPSLD-E-GN-S120-M40A-UL	Industrial	IP67 - Dust Tight Waterproof	1000 VAC	Screw	Plug Female Sockets	Cable Clamp Strain Relief	Silver	Green	Bayonet Lock	UL94 V-0	800 A	1	Plastic	Free Hanging (In-Line)
