TB003 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
TERMINAL BLOCK, SCREW TYPE, 5.00
| Part | Positions Per Level | Wire Gauge [Min] | Wire Gauge [Max] | Voltage | Current | Mounting Type | Wire Termination | Color | Pitch | Pitch | Number of Levels | Mating Orientation | Features | Screw Thread | Operating Temperature [Min] | Operating Temperature [Max] | Screw Material - Plating | Clamp Material - Plating [custom] | Contact Material - Plating | Torque - Screw | Torque - Screw | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

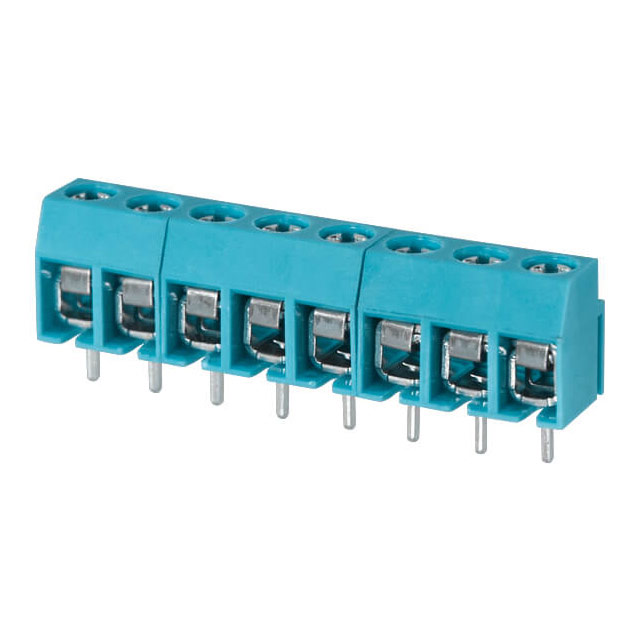

 Same Sky (Formerly CUI Devices) | 8 | 14 AWG | 26 AWG | 300 VDC | 10 A | Through Hole | Screw - Leaf Spring Wire Guard | Blue | 0.197 in | 5 mm | 1 | Horizontal with Board | Interlocking (Side) | |||||||||
 Same Sky (Formerly CUI Devices) | 21 | 14 AWG | 26 AWG | 300 VDC | 10 A | Through Hole | Screw - Leaf Spring Wire Guard | Blue | 0.197 in | 5 mm | 1 | Horizontal with Board | Interlocking (Side) | |||||||||
 Same Sky (Formerly CUI Devices) | 5 | 14 AWG | 26 AWG | 300 VDC | 10 A | Through Hole | Screw - Leaf Spring Wire Guard | Blue | 0.197 in | 5 mm | 1 | Vertical with Board | Interlocking (Side) | M2.5 | -40 C | 105 ░C | Steel - Zinc Plated | Stainless Steel | Copper Alloy - Tin Plated | 3.5 Lb-In | 0.4 Nm | |

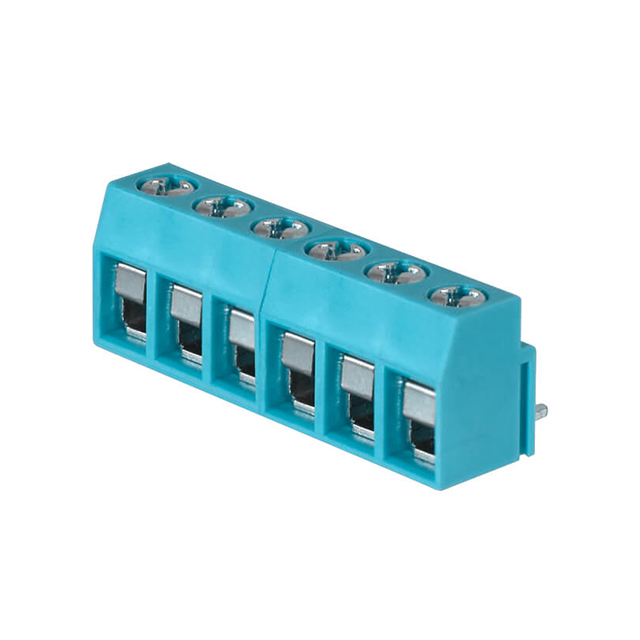

 Same Sky (Formerly CUI Devices) | 6 | 14 AWG | 26 AWG | 300 VDC | 10 A | Through Hole | Screw - Leaf Spring Wire Guard | Blue | 0.197 in | 5 mm | 1 | Vertical with Board | Interlocking (Side) | |||||||||
Same Sky (Formerly CUI Devices) | 12 | 14 AWG | 26 AWG | 300 VDC | 10 A | Through Hole | Screw - Leaf Spring Wire Guard | Blue | 0.197 in | 5 mm | 1 | Vertical with Board | Interlocking (Side) | M2.5 | -40 C | 105 ░C | Steel - Zinc Plated | Stainless Steel | Copper Alloy - Tin Plated | 3.5 Lb-In | 0.4 Nm | |
Same Sky (Formerly CUI Devices) | 11 | 14 AWG | 26 AWG | 300 VDC | 10 A | Through Hole | Screw - Leaf Spring Wire Guard | Blue | 0.197 in | 5 mm | 1 | Horizontal with Board | Interlocking (Side) | M2.5 | -40 C | 105 ░C | Steel - Zinc Plated | Stainless Steel | Copper Alloy - Tin Plated | 3.5 Lb-In | 0.4 Nm | |

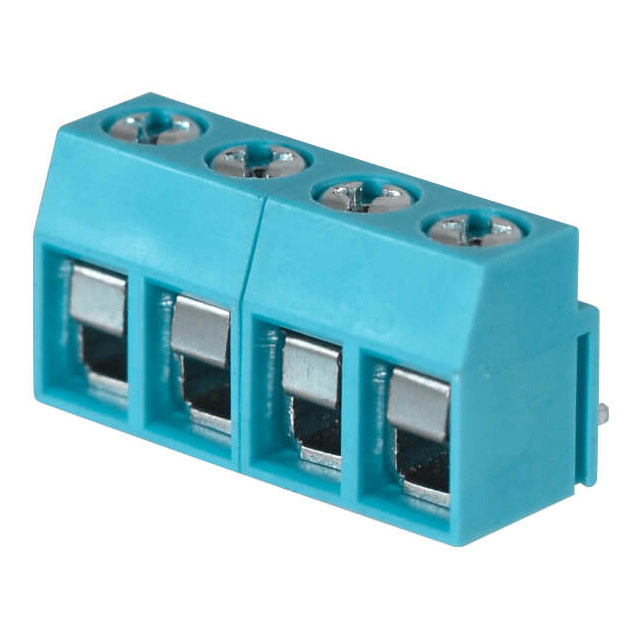

 Same Sky (Formerly CUI Devices) | 4 | 14 AWG | 26 AWG | 300 VDC | 10 A | Through Hole | Screw - Leaf Spring Wire Guard | Blue | 0.197 in | 5 mm | 1 | Vertical with Board | Interlocking (Side) | M2.5 | -40 C | 105 ░C | Steel - Zinc Plated | Stainless Steel | Copper Alloy - Tin Plated | 3.5 Lb-In | 0.4 Nm | |
Same Sky (Formerly CUI Devices) | 21 | 14 AWG | 26 AWG | 300 VDC | 10 A | Through Hole | Screw - Leaf Spring Wire Guard | Blue | 0.197 in | 5 mm | 1 | Vertical with Board | Interlocking (Side) | |||||||||
Same Sky (Formerly CUI Devices) | 12 | 14 AWG | 26 AWG | 300 VDC | 10 A | Through Hole | Screw - Leaf Spring Wire Guard | Blue | 0.197 in | 5 mm | 1 | Horizontal with Board | Interlocking (Side) | |||||||||
Same Sky (Formerly CUI Devices) | 14 AWG | 26 AWG | 300 VDC | 10 A | Through Hole | Screw - Leaf Spring Wire Guard | Blue | 0.197 in | 5 mm | 1 | Horizontal with Board | Interlocking (Side) | M2.5 | -40 C | 105 ░C | Steel - Zinc Plated | Stainless Steel | Copper Alloy - Tin Plated | 3.5 Lb-In | 0.4 Nm | 24 |
