54025 Series

Manufacturer: CNC Tech

Catalog

WIRE-TO BOARD HEADER, 2.5MM, 14

Part	Number of Rows [custom]	Shrouding	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Number of Positions	Contact Material	Voltage Rating	Insulation Material	Mounting Type	Contact Shape	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Number of Positions Loaded	Features	Insulation Color	Current Rating (Amps)	Insulation Height	Insulation Height	Style	Contact Length - Post	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination	Pin or Socket	Type	Contact Finish	Note	Pitch	Pitch	Color	Row Spacing	Row Spacing
CNC Tech 54025-14-0200-01	2	Shrouded - 4 Wall	2.5 mm	0.098 in	Tin	UL94 V-0	-40 C	105 ░C	Header	Latch Holder	14	Brass	250 VAC	Thermoplastic	Right Angle Through Hole	Square	Solder	2.5 mm	0.098 in	0.126 "	3.2 mm	Male Pin	All	Board Guide	Black	6.5 A	6.28 mm	0.247 "	Board to Cable/Wire
CNC Tech 54025-12-0100-01	2	Shrouded - 4 Wall	2.5 mm	0.098 in	Tin	UL94 V-0	-40 C	105 ░C	Header	Latch Holder	12	Brass	250 VAC	Thermoplastic	Through Hole	Square	Kinked Pin Solder	2.5 mm	0.098 in	0.134 "		Male Pin	All	Board Guide	Black	6.5 A	9.07 mm	0.357 in	Board to Cable/Wire	3.4 mm
CNC Tech 54025-2426																															24 AWG	26 AWG	Crimp	Socket	Stamped	Tin

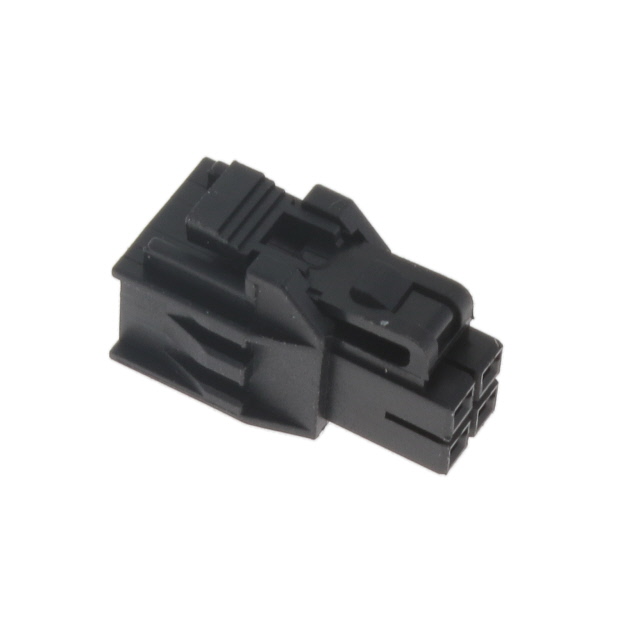

CNC Tech 54025-04	2						-40 C	105 ░C	Receptacle	Latch Lock	4			Nylon 4T Polyamide (PA4T)	Free Hanging (In-Line)							Female Socket											Crimp				Contacts Not Included	2.5 mm	0.098 in	Black	0.098 "	2.5 mm

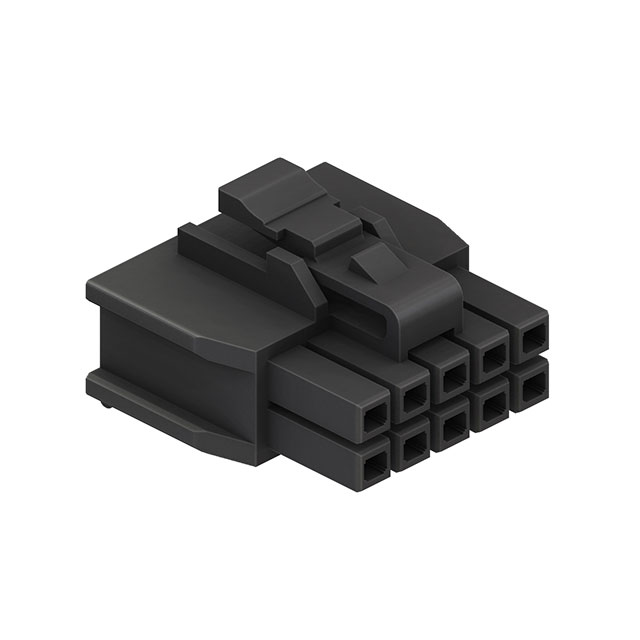

CNC Tech 54025-10	2						-40 C	105 ░C	Receptacle	Latch Lock	10			Nylon 4T Polyamide (PA4T)	Free Hanging (In-Line)							Female Socket											Crimp				Contacts Not Included	2.5 mm	0.098 in	Black	0.098 "	2.5 mm
CNC Tech 54025-16-0200-01	2	Shrouded - 4 Wall	2.5 mm	0.098 in	Tin	UL94 V-0	-40 C	105 ░C	Header	Latch Holder	16	Brass	250 VAC	Thermoplastic	Right Angle Through Hole	Square	Solder	2.5 mm	0.098 in	0.126 "	3.2 mm	Male Pin	All	Board Guide	Black	6.5 A	6.28 mm	0.247 "	Board to Cable/Wire

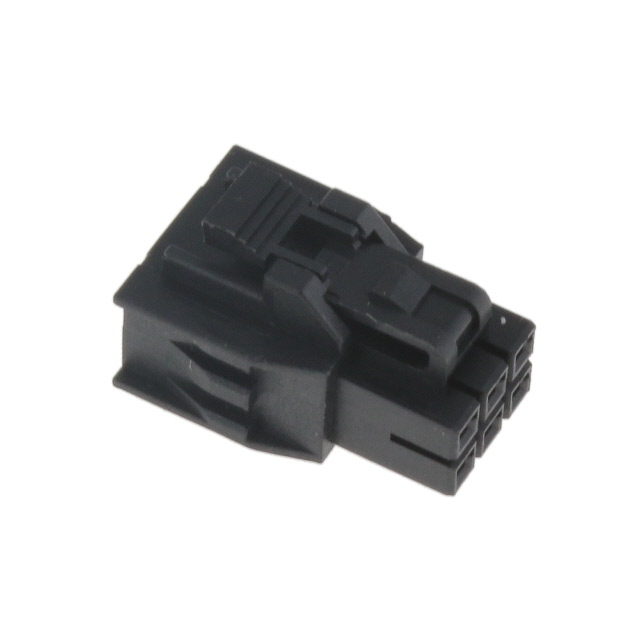

CNC Tech 54025-06	2						-40 C	105 ░C	Receptacle	Latch Lock	6			Nylon 4T Polyamide (PA4T)	Free Hanging (In-Line)							Female Socket											Crimp				Contacts Not Included	2.5 mm	0.098 in	Black	0.098 "	2.5 mm
CNC Tech 54025-18	2						-40 C	105 ░C	Receptacle	Latch Lock	18			Nylon 4T Polyamide (PA4T)	Free Hanging (In-Line)							Female Socket											Crimp				Contacts Not Included	2.5 mm	0.098 in	Black	0.098 "	2.5 mm
