TEH100 Series

Manufacturer: Ohmite

Catalog

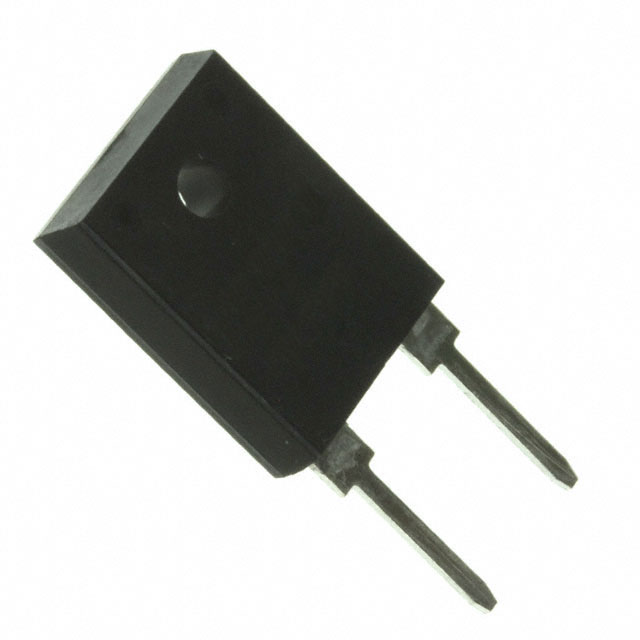

THICK FILM RESISTORS - THROUGH HOLE 100W 470 OHM 5%

Part	Tolerance	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Composition	Number of Terminations [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Temperature Coefficient	Supplier Device Package	Resistance	Power (Watts)	Features	Package / Case
Ohmite TEH100M470RJE	5 %	15.75 mm	0.62 in	0.195 in	4.95 mm	Thick Film	2	0.825 in	20.96 mm	50 ppm/░C	TO-247	470 Ohms	100 W	Moisture Resistant Non-Inductive Pulse Withstanding	TO-247-2
Ohmite TEH100M25R0FE	1 %	15.75 mm	0.62 in	0.195 in	4.95 mm	Thick Film	2	0.825 in	20.96 mm	50 ppm/░C	TO-247	25 Ohms	100 W	Moisture Resistant Non-Inductive Pulse Withstanding	TO-247-2
Ohmite TEH100M7R50JE	5 %	15.75 mm	0.62 in	0.195 in	4.95 mm	Thick Film	2	0.825 in	20.96 mm	100 ppm/°C	TO-247	7.5 Ohms	100 W	Moisture Resistant Non-Inductive Pulse Withstanding	TO-247-2
Ohmite TEH100M1R00JE	5 %	15.75 mm	0.62 in	0.195 in	4.95 mm	Thick Film	2	0.825 in	20.96 mm	250 ppm/°C	TO-247	1 Ohms	100 W	Moisture Resistant Non-Inductive Pulse Withstanding	TO-247-2
Ohmite TEH100M750RJE	5 %	15.75 mm	0.62 in	0.195 in	4.95 mm	Thick Film	2	0.825 in	20.96 mm	50 ppm/░C	TO-247	750 Ohms	100 W	Moisture Resistant Non-Inductive Pulse Withstanding	TO-247-2
Ohmite TEH100M2R00FE	1 %	15.75 mm	0.62 in	0.195 in	4.95 mm	Thick Film	2	0.825 in	20.96 mm	250 ppm/°C	TO-247	2 Ohms	100 W	Moisture Resistant Non-Inductive Pulse Withstanding	TO-247-2
