DC-ME4 Series

Catalog

MODULE ME

Part	Flash Size	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	RAM Size	Module/Board Type	Speed	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor
Digi International DC-ME4-01T-CLI
Digi International DC-ME4-01T-C	4 MB	1.45 in	36.7 mm	19.1 mm	0.75 in	64 Mbit	MPU Core	55 MHz	RJ45	85 °C	-40 C	ARM7TDMI NS7520
Digi International DC-ME4-01T-CC-1	4 MB	1.45 in	36.7 mm	19.1 mm	0.75 in	64 Mbit	MPU Core	55 MHz	RJ45	85 °C	-40 C	ARM7TDMI NS7520
Digi International DC-ME4-01T-S-10	4 MB	1.45 in	36.7 mm	19.1 mm	0.75 in	64 Mbit	MPU Core	55 MHz	RJ45	85 °C	-40 C	ARM7TDMI NS7520
Digi International DC-ME4-01T-C-50	4 MB	1.45 in	36.7 mm	19.1 mm	0.75 in	64 Mbit	MPU Core	55 MHz	RJ45	85 °C	-40 C	ARM7TDMI NS7520
Digi International DC-ME4-01T-S	4 MB	1.45 in	36.7 mm	19.1 mm	0.75 in	64 Mbit	MPU Core	55 MHz	RJ45	85 °C	-40 C	ARM7TDMI NS7520

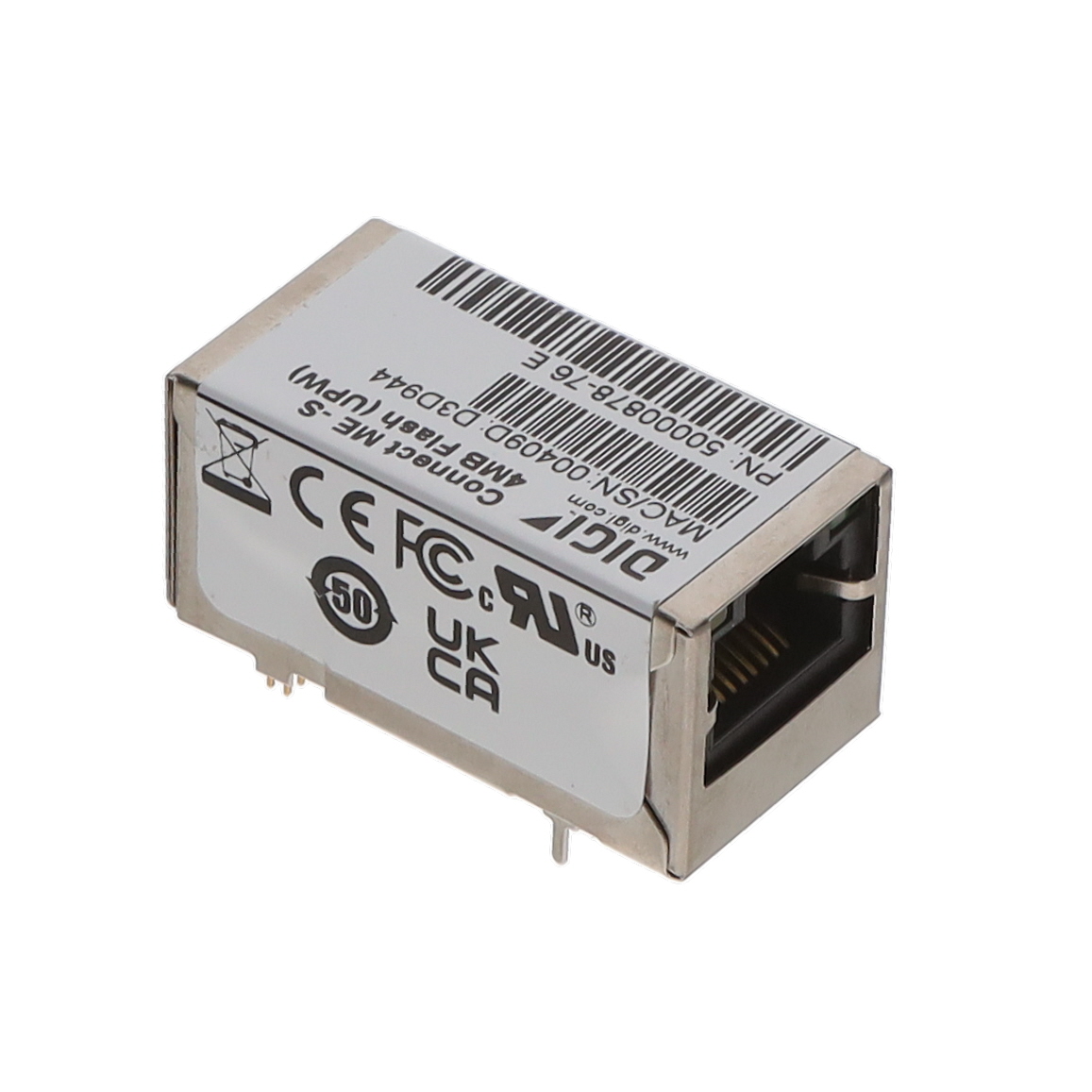

Digi International DC-ME4-01T-S-UPW	4 MB	1.45 in	36.7 mm	19.1 mm	0.75 in	64 Mbit	MPU Core	55 MHz	RJ45	85 °C	-40 C	ARM7TDMI NS7520
