200MDP3 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE DPDT 3A 120V

Part	Electrical Life	Actuator Material	Mounting Type	Circuit	Voltage Rating - DC	Bushing Thread	Illumination	Switch Function	Actuator Length [x]	Current Rating (Amps)	Termination Style	Actuator Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Panel Cutout Dimensions [diameter]
E-Switch 200MDP3T1B2M7QE	30000 Cycles	Brass Chrome Plated	Right Angle Through Hole Vertical	DPDT	28 V	Unthreaded	Non-Illuminated	On-Off-On	9.4 mm	3 A	PC Pin	Standard Round	Epoxy Sealed Terminals	85 °C	-30 ░C	120 V
E-Switch 200MDP3T1B6VS2RE	30000 Cycles	Brass Chrome Plated	Through Hole	DPDT	20 V	Unthreaded	Non-Illuminated	On-Off-On	9.4 mm	0.4 VA	PC Pin	Standard Round	Epoxy Sealed Terminals	85 °C	-30 ░C	20 V
E-Switch 200MDP3T4B6VS2QE	30000 Cycles	Brass Chrome Plated	Through Hole	DPDT	28 V	Unthreaded	Non-Illuminated	On-Off-On	10.41 mm	3 A	PC Pin	Standard Round	Epoxy Sealed Terminals	85 °C	-30 ░C	120 V
E-Switch 200MDP3T1B1M2RE	30000 Cycles	Brass Chrome Plated	Panel Mount	DPDT	20 V	10-48	Non-Illuminated	On-Off-On	9.4 mm	0.4 VA	PC Pin	Standard Round	Epoxy Sealed Terminals	85 °C	-30 ░C	20 V	4.95 mm

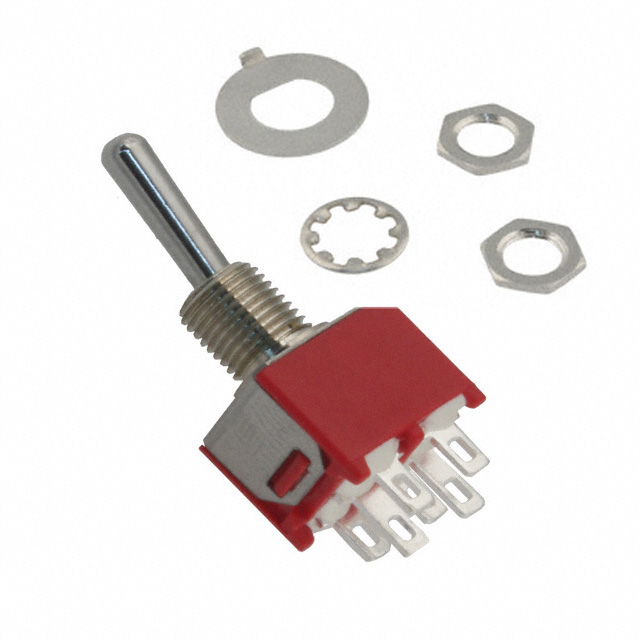

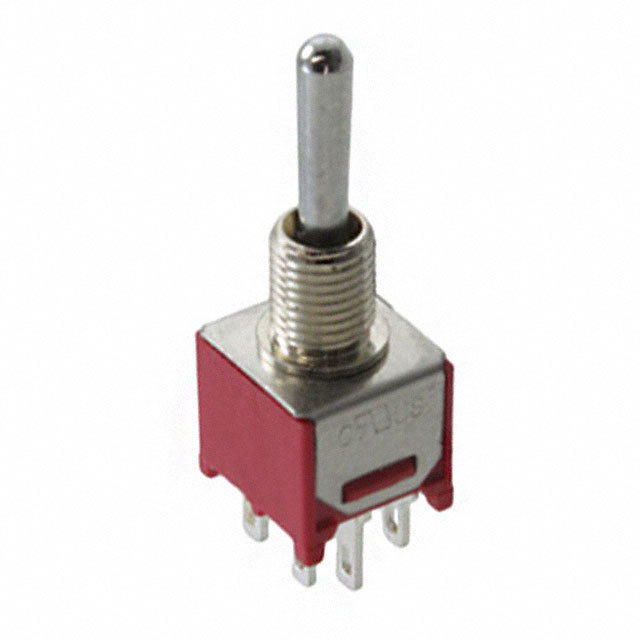

E-Switch 200MDP3T1B1M1QE	30000 Cycles	Brass Chrome Plated	Panel Mount	DPDT	28 V	10-48	Non-Illuminated	On-Off-On	9.4 mm	3 A	Solder Lug	Standard Round	Epoxy Sealed Terminals	85 °C	-30 ░C	120 V	4.95 mm
E-Switch 200MDP3T2B1M6QE	30000 Cycles	Brass Chrome Plated	Panel Mount Right Angle	DPDT	28 V	10-48	Non-Illuminated	On-Off-On	5.33 mm	3 A	PC Pin	Standard Round	Epoxy Sealed Terminals	85 °C	-30 ░C	120 V	4.95 mm
E-Switch 200MDP3T1B2M1RE	30000 Cycles	Brass Chrome Plated	Panel Mount	DPDT	20 V	Unthreaded	Non-Illuminated	On-Off-On	9.4 mm	0.4 VA	Solder Lug	Standard Round	Epoxy Sealed Terminals	85 °C	-30 ░C	20 V
E-Switch 200MDP3T4B7M6QE	30000 Cycles	Brass Chrome Plated	Panel Mount Right Angle	DPDT	28 V	1/4-40	Non-Illuminated	On-Off-On	11.68 mm	3 A	PC Pin	Standard Round	Epoxy Sealed Terminals	85 °C	-30 ░C	120 V	0.25 in
E-Switch 200MDP3T4B5M6RE	30000 Cycles	Brass Chrome Plated	Panel Mount Right Angle	DPDT	20 V	1/4-40	Non-Illuminated	On-Off-On	10.41 mm	0.4 VA	PC Pin	Standard Round	Epoxy Sealed Terminals	85 °C	-30 ░C	20 V	0.25 in
E-Switch 200MDP3T4B6M2QE	30000 Cycles	Brass Chrome Plated	Through Hole	DPDT	28 V	Unthreaded	Non-Illuminated	On-Off-On	10.41 mm	3 A	PC Pin	Standard Round	Epoxy Sealed Terminals	85 °C	-30 ░C	120 V
