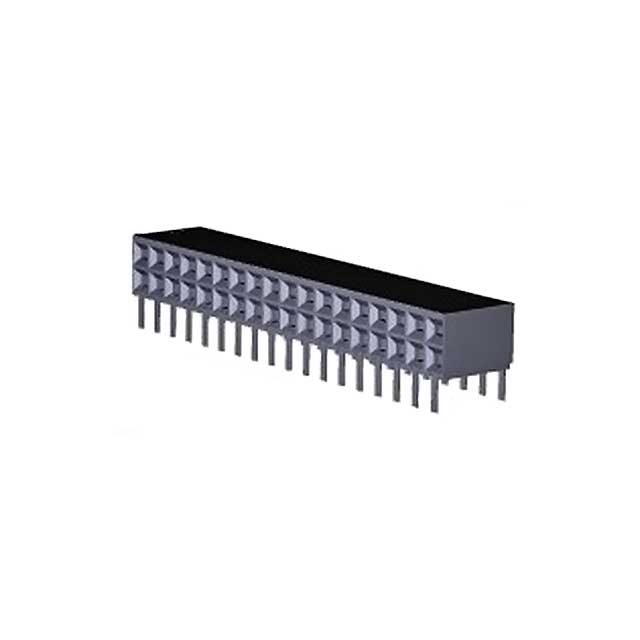

102084 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCP 10P 0.1 TIN-LEAD PCB RA

Part	Termination	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Current Rating (Amps)	Contact Material	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Shape	Insulation Color	Number of Positions	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Fastening Type	Contact Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Mounting Type
TE Connectivity Raychem Cable Protection 6-102084-1	Solder	Tin-Lead	2.54 µm	100 µin	2 A	Phosphor Bronze	2.92 mm	0.115 in	6.05 mm	0.238 in	Square	Black	10	2	2.54 çm	100 çin	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	Receptacle	-55 °C	125 °C	Polyester Glass Filled	Push-Pull	Female Socket	0.1 in	2.54 mm	All	Through Hole Right Angle
TE Connectivity Raychem Cable Protection 4-102084-8	Solder	Tin-Lead	2.54 µm	100 µin	2 A	Phosphor Bronze	2.92 mm	0.115 in	6.05 mm	0.238 in	Square	Black	36	2	2.54 çm	100 çin	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	Receptacle	-55 °C	125 °C	Polyester Glass Filled	Push-Pull	Female Socket	0.1 in	2.54 mm	All	Through Hole Right Angle
TE Connectivity Raychem Cable Protection 6-102084-3	Solder	Tin-Lead	2.54 µm	100 µin	2 A	Phosphor Bronze	2.92 mm	0.115 in	6.05 mm	0.238 in	Square	Black	6	2	2.54 çm	100 çin	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	Receptacle	-55 °C	125 °C	Polyester Glass Filled	Push-Pull	Female Socket	0.1 in	2.54 mm	All	Through Hole Right Angle
TE Connectivity Raychem Cable Protection 6-102084-2	Solder	Tin-Lead	2.54 µm	100 µin	2 A	Phosphor Bronze	2.92 mm	0.115 in	6.05 mm	0.238 in	Square	Black	8	2	2.54 çm	100 çin	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	Receptacle	-55 °C	125 °C	Polyester Glass Filled	Push-Pull	Female Socket	0.1 in	2.54 mm	All	Through Hole Right Angle
TE Connectivity Raychem Cable Protection 5-102084-7	Solder	Tin-Lead	2.54 µm	100 µin	2 A	Phosphor Bronze	2.92 mm	0.115 in	6.05 mm	0.238 in	Square	Black	18	2	2.54 çm	100 çin	Tin-Lead	2.54 mm	0.1 in	UL94 V-0	Receptacle	-55 °C	125 °C	Polyester Glass Filled	Push-Pull	Female Socket	0.1 in	2.54 mm	All	Through Hole Right Angle
