9062AC Series
Manufacturer: ALPHA WIRE
Beta
⌘K

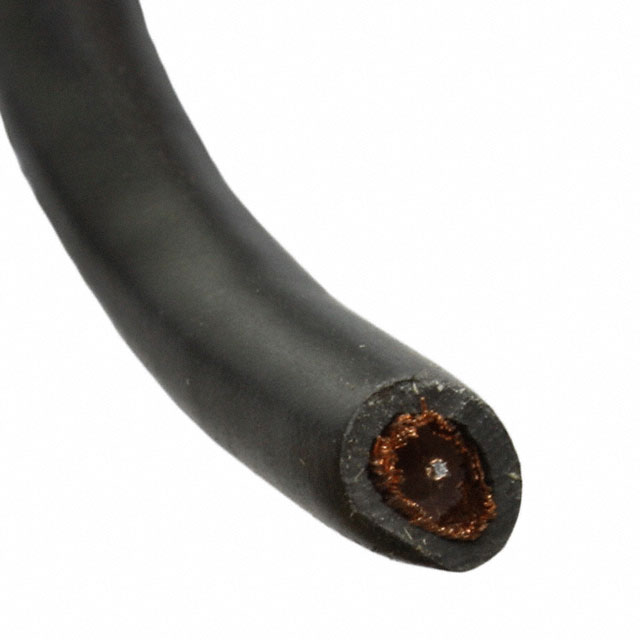

CABLE COAXIAL RG62A 22AWG 100'
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | VoP, Velocity of Propagation | Shield Coverage | Shield Material | Conductor Material | Shield Type | Jacket (Insulation) Material | Cable Group | Cable Type | Jacket Color | Conductor Strand | Wire Gauge | Impedance | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Solid Polyethylene (PE) | 80 °C | -20 ░C | 3.71 mm | 0.146 in | 83 | 95 % | Copper Bare | Copper Coated Steel | Braid | Poly-Vinyl Chloride (PVC) | RG-62A | Coaxial | Black | Solid | 22 AWG | 93 Ohms | 100 ' | 30.48 m |
