BC127 Series

Catalog

RF TXRX MOD BLUETOOTH CHIP SMD

Part	RF Family/Standard	Modulation	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate	Protocol	Frequency [Max]	Frequency [Min]	Antenna Type	Current - Transmitting	Mounting Type	Sensitivity	Current - Receiving	Voltage - Supply [Max]	Voltage - Supply [Min]	Power - Output	For Use With/Related Products	Supplied Contents	Contents	Utilized IC / Part	Frequency	Type	Memory Size

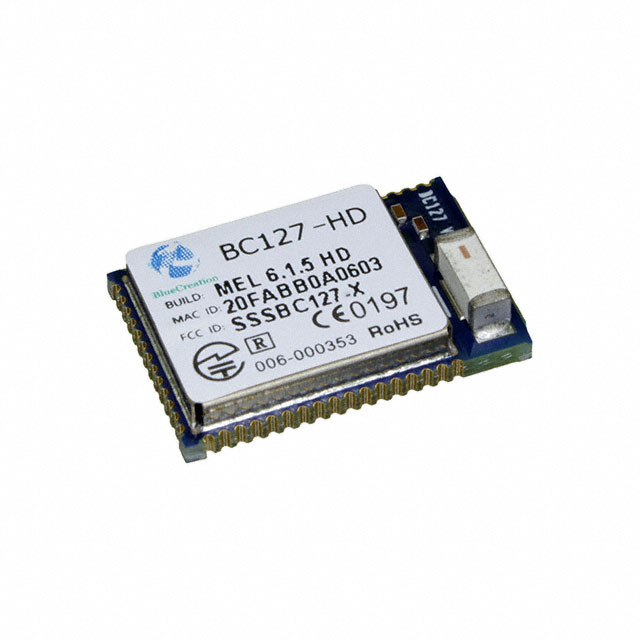

Semtech Corporation BC127-HD_1103709	Bluetooth	8PSK GFSK QPSK	Module	85 °C	-40 C	3 Mbps	Bluetooth v4.2	2.48 GHz	2.4 GHz	Chip Integrated	15 mA	Surface Mount	-88 dBm	15 mA	4.7 V	3.3 V	10 dBm

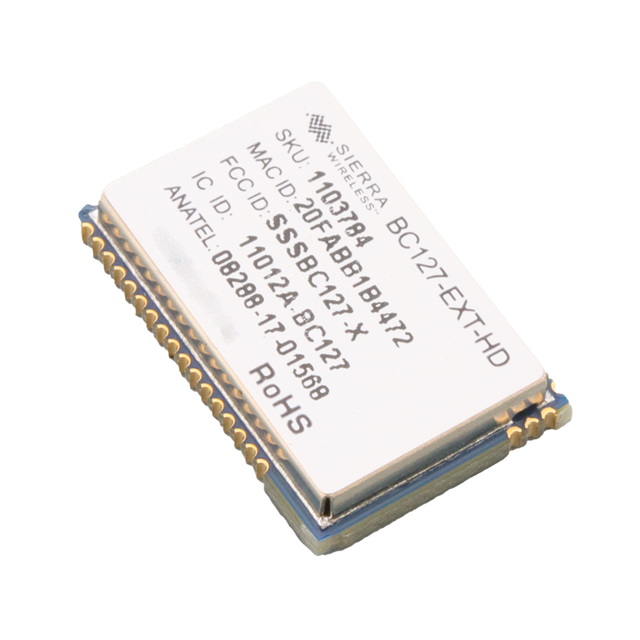

Semtech Corporation BC127-EXT-HD_1103784	Bluetooth	8PSK GFSK QPSK	Module	85 °C	-40 C	3 Mbps	Bluetooth v4.2	2.48 GHz	2.4 GHz	Antenna Not Included Castellation	15 mA	Surface Mount	-88 dBm	15 mA	4.7 V	3.3 V	10 dBm
Semtech Corporation BC127-HD DIS KIT_6001115																		BC127-HD	Board(s)	Board(s)	BC127-HD	2.4 GHz	Transceiver; Bluetooth® Smart 4.x Low Energy (BLE)

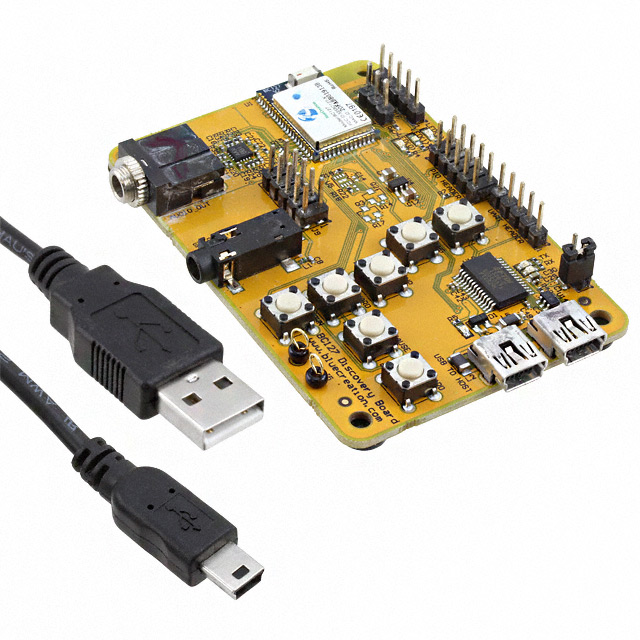

Semtech Corporation BC127-DISKIT001_6001098																		BC127	Board(s) Cable(s)	Board Cable	BC127	2.4 GHz	Transceiver; Bluetooth® Smart Ready 4.x Dual Mode (BLE)
Semtech Corporation BC127-1103383	Bluetooth	DPSK DQPSK GFSK	Module	85 °C	-40 C	3 Mbps	Bluetooth v4.0 Dual Mode			Chip Integrated	15 mA	Surface Mount	-88 dBm	15 mA	4.7 V	3.3 V	10 dBm					2.4 GHz		16 MB

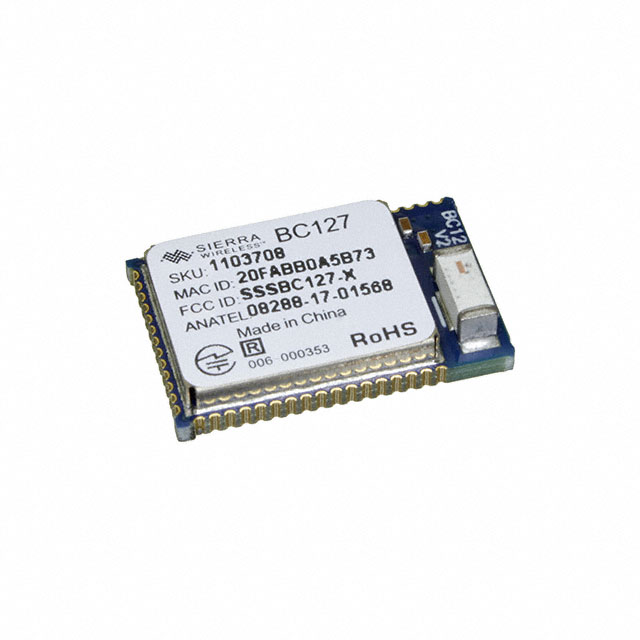

Semtech Corporation BC127-APTX_1103708	Bluetooth	8PSK GFSK QPSK	Module	85 °C	-40 C	3 Mbps	Bluetooth v4.2	2.48 GHz	2.4 GHz	Chip Integrated	15 mA	Surface Mount	-88 dBm	15 mA	4.7 V	3.3 V	10 dBm

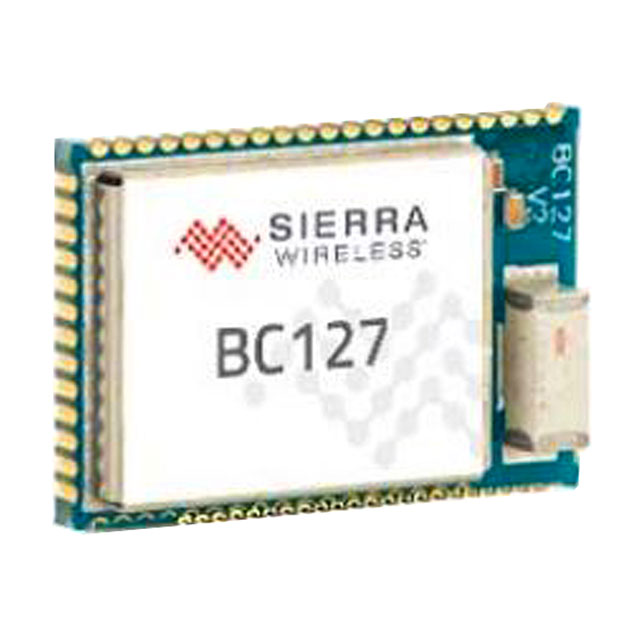

Semtech Corporation BC127-EXT-APTX_1103783	Bluetooth	8PSK GFSK QPSK	Module	85 °C	-40 C	3 Mbps	Bluetooth v4.2	2.48 GHz	2.4 GHz	Antenna Not Included Castellation	15 mA	Surface Mount	-88 dBm	15 mA	4.7 V	3.3 V	10 dBm
