SD-70 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

CONN RCPT FMALE DIN 7P SOLDER

Part	Material Flammability Rating	Color	Primary Material	Mounting Feature	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Shell Finish	Shielding	Shell Size - Insert	Shell Size - Insert	Contact Finish - Mating	Number of Positions	Shell Material	Connector Type	Orientation	Termination	Fastening Type	Features	Insert Material	Current Rating (Amps)	Contact Material	Cable Opening	Cable Opening	Insert Material [custom]	Insert Material [custom]
Same Sky (Formerly CUI Devices) SD-70SN	UL94 V-0	Silver	Metal	Flange	12 VDC 100 VAC	5 °C	70 °C	Panel Mount	Nickel	Shielded	DIN	270 Degree	Silver	7	Steel	Receptacle Female Sockets	Keyed	Solder Eyelet(s)	Push-Pull

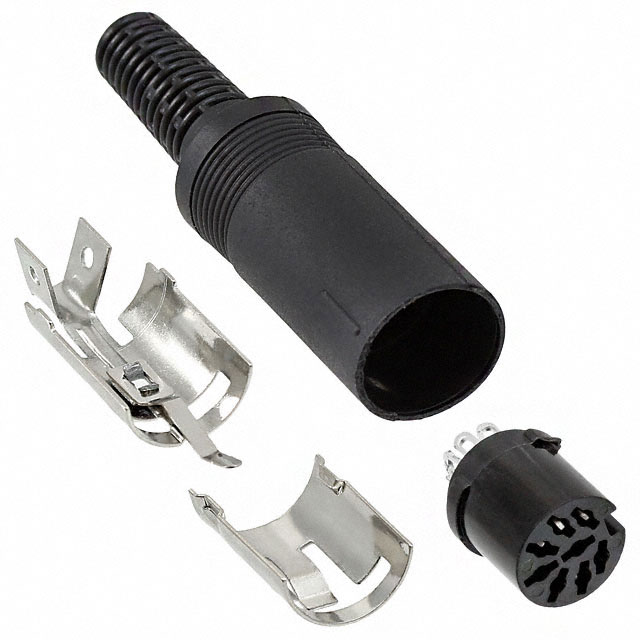

Same Sky (Formerly CUI Devices) SD-70J		Black	Metal		100 VAC	-5 °C	110 °C	Free Hanging (In-Line)	Black Nickel	Unshielded	DIN	270 Degree	Silver	7	Steel	Receptacle Female Sockets	Keyed	Solder	Push-Pull	Strain Relief	Polycarbonate (PC)	2 A	Brass

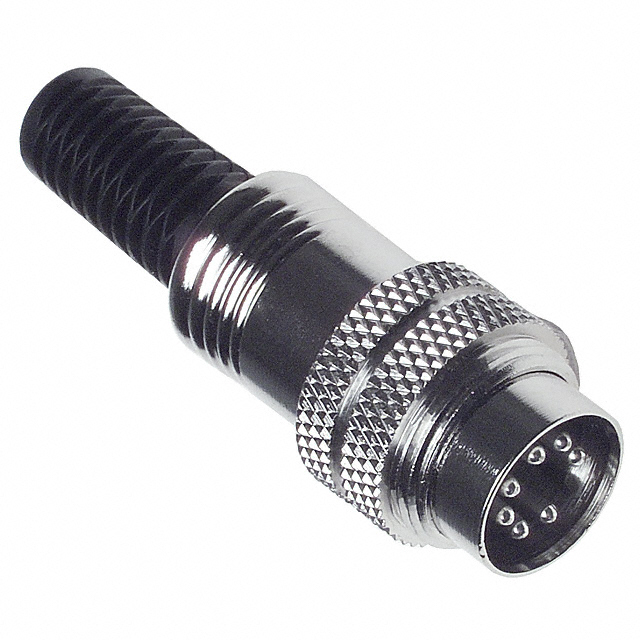

Same Sky (Formerly CUI Devices) SD-70LP		Silver	Metal		100 VAC	-40 C	85 °C	Free Hanging (In-Line)	Nickel	Shielded	DIN	270 Degree	Silver	7	Zinc Alloy	Plug Male Pins	Keyed	Solder	Threaded	Coupling Nut Strain Relief		2 A		8 mm	0.315 in
Same Sky (Formerly CUI Devices) SD-70BV	UL94 V-0	Silver	Metal		24 VDC	-20 ░C	60 °C	Through Hole	Nickel	Shielded	DIN	270 Degree		7	Iron Sheet	Receptacle Female Sockets	Keyed	Solder	Push-Pull				Brass
Same Sky (Formerly CUI Devices) SD-70BV	UL94 V-0	Silver	Metal		24 VDC	-20 ░C	60 °C	Through Hole	Nickel	Shielded	DIN	270 Degree		7	Iron Sheet	Receptacle Female Sockets	Keyed	Solder	Push-Pull

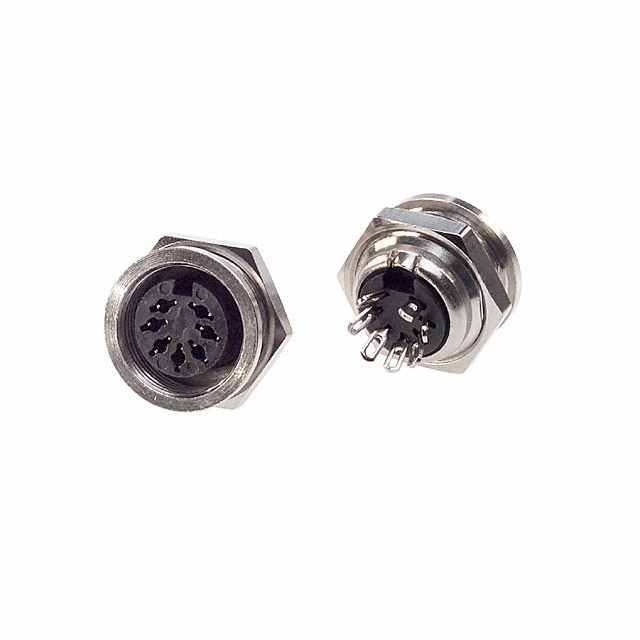

Same Sky (Formerly CUI Devices) SD-70LS	UL94 HB	Silver	Metal	Bulkhead - Rear Side Nut	100 VAC	-40 C	85 °C	Panel Mount	Nickel	Shielded	DIN	270 Degree		7	Zinc	Receptacle Female Sockets	Keyed	Solder Eyelet(s)	Threaded			2 A	Brass			Nylon	Polyamide (PA)
Same Sky (Formerly CUI Devices) SD-70SN	UL94 V-0	Silver	Metal	Flange	12 VDC 100 VAC	5 °C	70 °C	Panel Mount	Nickel	Shielded	DIN	270 Degree	Silver	7	Steel	Receptacle Female Sockets	Keyed	Solder Eyelet(s)	Push-Pull		Polybutylene Terephthalate (PBT)		Brass
Same Sky (Formerly CUI Devices) SD-70LP		Silver	Metal		100 VAC	-40 C	85 °C	Free Hanging (In-Line)	Nickel	Shielded	DIN	270 Degree	Silver	7	Zinc Alloy	Plug Male Pins	Keyed	Solder	Threaded	Coupling Nut Strain Relief		2 A	Brass	8 mm	0.315 in
