DS05-127 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

SWITCH: DIP-SWITCH; POLES NUMBER: 4; OFF-ON; 0.025A/24VDC; POS: 2

Part	Voltage Rating	Actuator Type	Mounting Type	Actuator Level	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]	Circuit	Contact Material	Number of Positions	Current Rating (Amps)	Contact Finish	Pitch	Pitch	Pitch	Termination Style	Electrical Life	Body Material	Length [x]	Length [x]	Length	Length

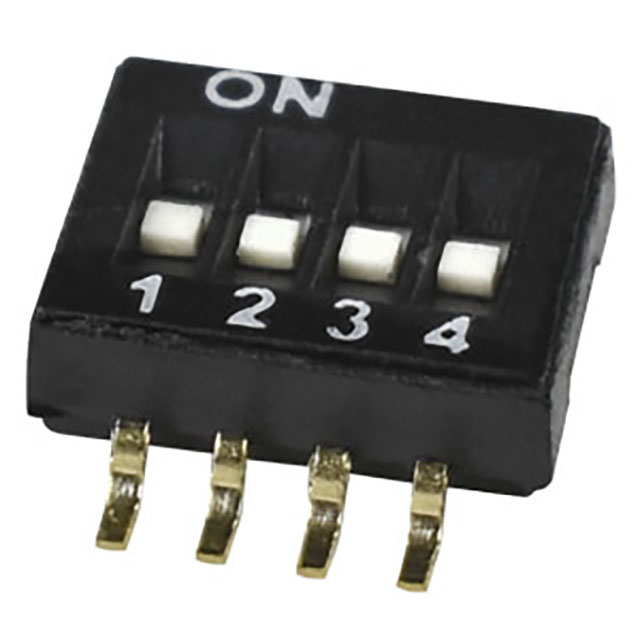

Same Sky (Formerly CUI Devices) DS05-127-2-04BK-SMT-TR	24 VDC	Slide (Standard)	Surface Mount	Flush Recessed	85 °C	-40 C	0.094 in	2.4 mm	SPST	Copper Alloy	4	25 mA	Gold	0.05 "	1.27 mm	Half	Gull Wing

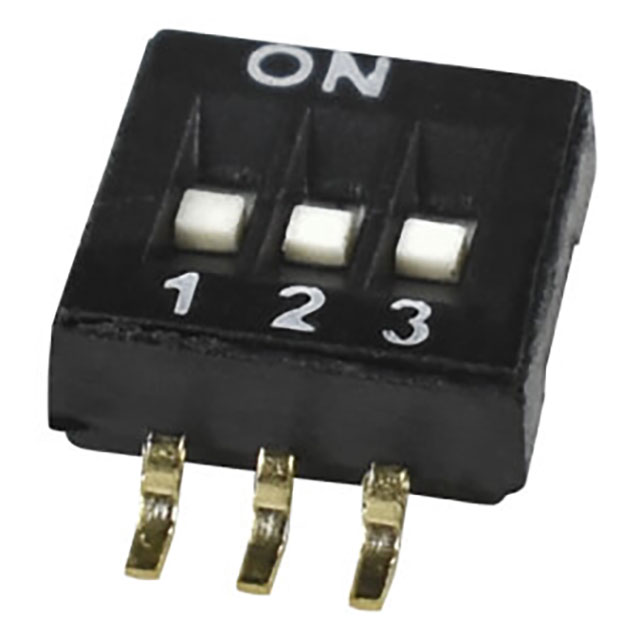

Same Sky (Formerly CUI Devices) DS05-127-2-03BK-SMT-TR	24 VDC	Slide (Standard)	Surface Mount	Flush Recessed	85 °C	-40 C	0.094 in	2.4 mm	SPST	Copper Alloy		25 mA	Gold	0.05 "	1.27 mm	Half	Gull Wing	2000 Steps	Polybutylene Terephthalate (PBT)	5.38 mm	0.212 in
Same Sky (Formerly CUI Devices) DS05-127-2-02BK-SMT-TR	24 VDC	Slide (Standard)	Surface Mount	Flush Recessed	85 °C	-40 C	0.094 in	2.4 mm	SPST	Copper Alloy	2	25 mA	Gold	0.05 "	1.27 mm	Half	Gull Wing	2000 Steps	Polybutylene Terephthalate (PBT)			4.11 mm	0.162 in
Same Sky (Formerly CUI Devices) DS05-127-2-10BK-SMT-TR	24 VDC	Slide (Standard)	Surface Mount	Flush Recessed	85 °C	-40 C	0.094 in	2.4 mm	SPST	Copper Alloy	10	25 mA	Gold	0.05 "	1.27 mm	Half	Gull Wing	2000 Steps	Polybutylene Terephthalate (PBT)	14.27 mm	0.562 in
Same Sky (Formerly CUI Devices) DS05-127-2-06BK-SMT-TR	24 VDC	Slide (Standard)	Surface Mount	Flush Recessed	85 °C	-40 C	0.094 in	2.4 mm	SPST	Copper Alloy	6	25 mA	Gold	0.05 "	1.27 mm	Half	Gull Wing	2000 Steps	Polybutylene Terephthalate (PBT)	9.19 mm	0.362 in
Same Sky (Formerly CUI Devices) DS05-127-2-06BK-SMT-TR	24 VDC	Slide (Standard)	Surface Mount	Flush Recessed	85 °C	-40 C	0.094 in	2.4 mm	SPST	Copper Alloy	6	25 mA	Gold	0.05 "	1.27 mm	Half	Gull Wing
Same Sky (Formerly CUI Devices) DS05-127-2-04BK-SMT-TR	24 VDC	Slide (Standard)	Surface Mount	Flush Recessed	85 °C	-40 C	0.094 in	2.4 mm	SPST	Copper Alloy	4	25 mA	Gold	0.05 "	1.27 mm	Half	Gull Wing	2000 Steps	Polybutylene Terephthalate (PBT)			6.65 mm	0.262 in

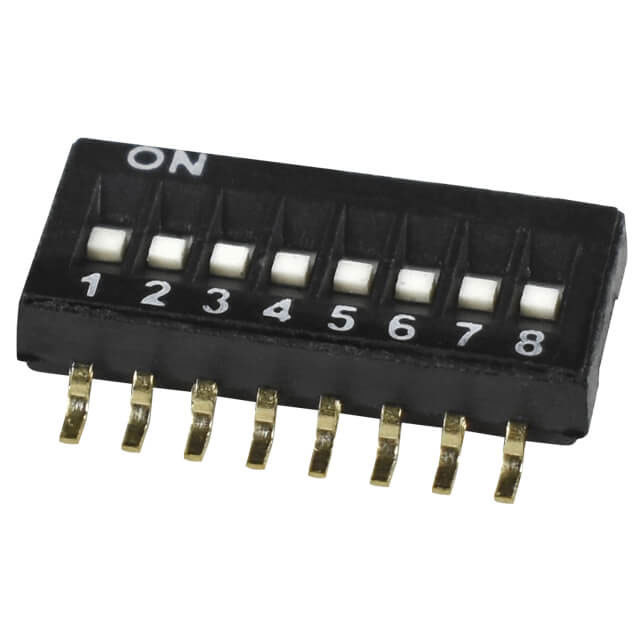

Same Sky (Formerly CUI Devices) DS05-127-2-08BK-SMT-TR	24 VDC	Slide (Standard)	Surface Mount	Flush Recessed	85 °C	-40 C	0.094 in	2.4 mm	SPST	Copper Alloy	8	25 mA	Gold	0.05 "	1.27 mm	Half	Gull Wing
Same Sky (Formerly CUI Devices) DS05-127-2-08BK-SMT-TR	24 VDC	Slide (Standard)	Surface Mount	Flush Recessed	85 °C	-40 C	0.094 in	2.4 mm	SPST	Copper Alloy	8	25 mA	Gold	0.05 "	1.27 mm	Half	Gull Wing	2000 Steps	Polybutylene Terephthalate (PBT)			11.73 mm	0.462 in
Same Sky (Formerly CUI Devices) DS05-127-2-10BK-SMT-TR	24 VDC	Slide (Standard)	Surface Mount	Flush Recessed	85 °C	-40 C	0.094 in	2.4 mm	SPST	Copper Alloy	10	25 mA	Gold	0.05 "	1.27 mm	Half	Gull Wing
