ASPI-S Series

Catalog

POWER INDUCTORS - SMD IND 15.00 UH 0.450 A 360.00 MOHM

Part	DC Resistance (DCR)	Type	Current - Saturation (Isat)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Tolerance	Inductance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Shielding	Inductance Frequency - Test	Package / Case	Current Rating (Amps)	Material - Core	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Height - Seated (Max)
Abracon LLC ASPI-3012S-150M-T	360 mOhm	Drum Core Wirewound	450 mA	3 mm	0.118 in	3 mm	0.118 "	125 °C	-40 C	Surface Mount	20 %	15 µH	0.055 in	1.4 mm	Shielded	100 kHz	Nonstandard	0.71 A	Ferrite	27 MHz

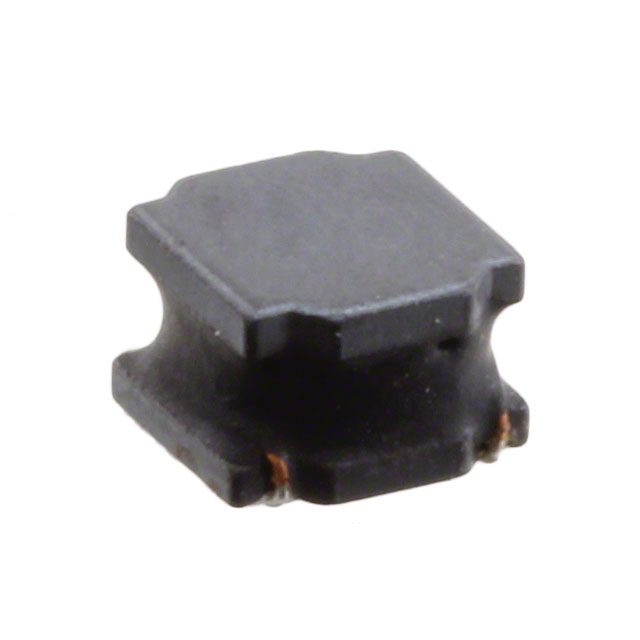

Abracon LLC ASPI-4030S-3R3M-T	40 mOhm	Drum Core Wirewound	3.3 A	4 mm	0.157 "	4 mm	0.157 in	125 °C	-40 C	Surface Mount	20 %	3.3 µH			Shielded	100 kHz	Nonstandard	2.4 A	Nickel Zinc Ferrite (NiZn)	38 MHz	0.118 "	3 mm
Abracon LLC ASPI-0428S-271M-T	2.86 Ohm	Drum Core Wirewound		4.7 mm	0.185 in	4.7 mm	0.185 in	125 °C	-40 C	Surface Mount	20 %	270 µH			Shielded	1 kHz	Nonstandard	0.185 A	Ferrite		0.118 "	3 mm
Abracon LLC ASPI-0428S-330M-T	378 mOhm	Drum Core Wirewound		4.7 mm	0.185 in	4.7 mm	0.185 in	85 °C	-40 C	Surface Mount	20 %	33 µH			Shielded	100 kHz	Nonstandard	0.56 A	Ferrite		0.118 "	3 mm
Abracon LLC ASPI-1306S-681M-T		Drum Core Wirewound	960 mA	18.54 mm	0.6 in	15.24 mm	0.73 in	85 °C	-40 C	Surface Mount	20 %	680 µH	0.3 in		Shielded	100 kHz	Nonstandard	0.64 A	Ferrite	960 kHz			1.4 Ohm	7.62 mm

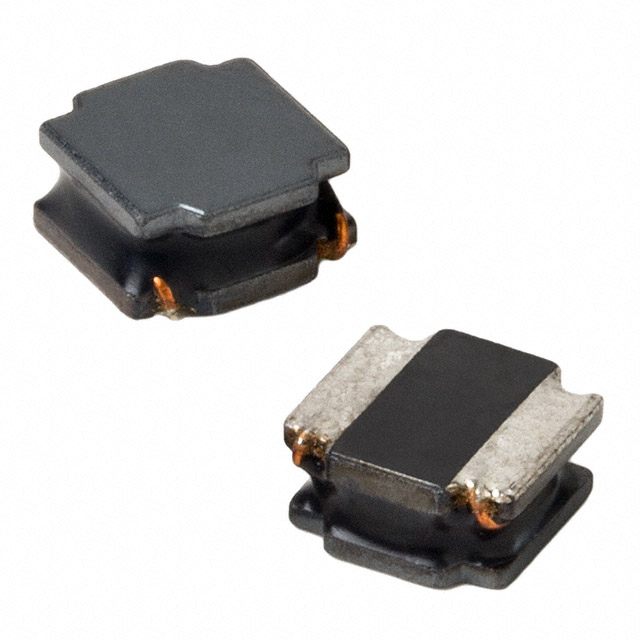

Abracon LLC ASPI-8040S-360M-T	102 mOhm	Drum Core Wirewound	2 A	8 mm	0.315 in	8 mm	0.315 in	125 °C	-40 C	Surface Mount	20 %	36 µH			Shielded	100 kHz	Nonstandard	1.75 A	Ferrite	7.8 MHz	0.165 "			4.2 mm
Abracon LLC ASPI-104S-221M-T		Drum Core Wirewound	920 mA	10.1 mm	0.394 in	10 mm	0.398 in	85 °C	-40 C	Surface Mount	20 %	220 µH	0.157 in		Shielded	100 kHz	Nonstandard	700 mA	Ferrite				756 mOhm	4 mm
Abracon LLC ASPI-0403S-330M-T		Wirewound		6.6 mm	0.175 "	4.45 mm	0.26 in	85 °C	-40 C	Surface Mount	20 %	33 µH			Shielded	100 kHz	Nonstandard	600 mA					190 mOhm

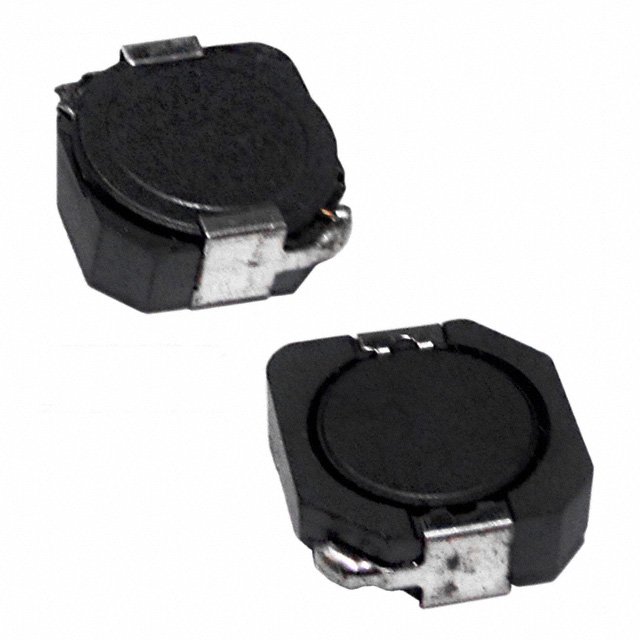

Abracon LLC ASPI-0602S-8R6M-T		Drum Core Wirewound						85 °C	-40 C	Surface Mount	20 %	8.6 µH			Shielded	10 kHz	Nonstandard	1.85 A	Ferrite		0.118 "	3 mm	58 mOhm
Abracon LLC ASPI-1306S-330M-T		Drum Core Wirewound	5 A	18.54 mm	0.6 in	15.24 mm	0.73 in	85 °C	-40 C	Surface Mount	20 %	33 µH	0.3 in		Shielded	100 kHz	Nonstandard	2.8 A	Ferrite	5 MHz			75 mOhm	7.62 mm
